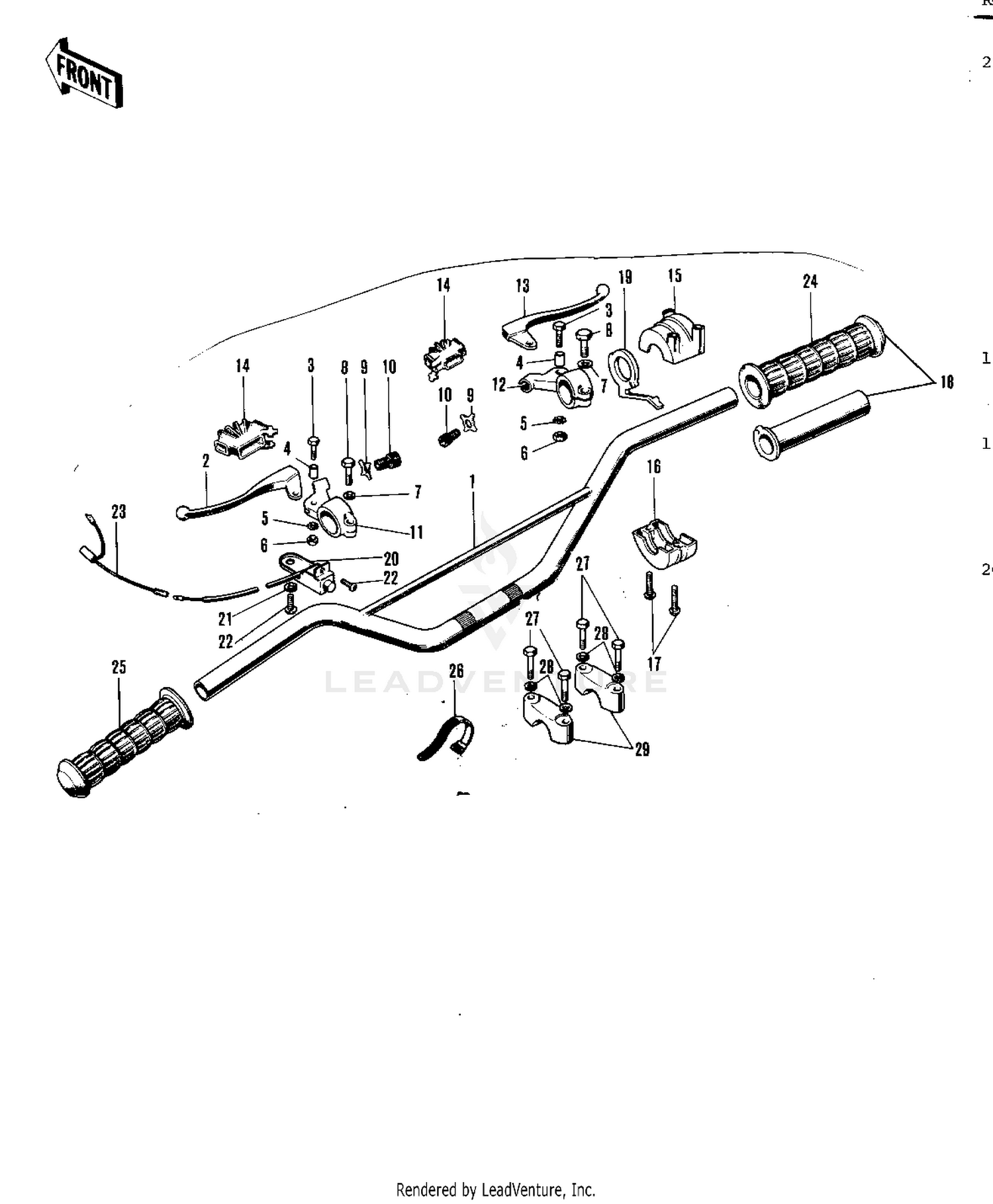

Handlebar (g31m-a) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HANDLEBAR
46004-004
|
$101.22 | ||
|
Available to order. Add to View Price |
|||
|
#
LEVER ASSY-CLUTCH
46076-014
|
$38.20 | ||
|
Available to order. Add to View Price |
|||
|
#2
LEVER-CLUTCH
46092-015
|
$20.24 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT HEX HEAD 5X20
92007-020
|
$6.17 | ||
|
Available to order. Add to View Price |
|||
|
#4
COLLAR LEVER
46059-011
|
$7.75 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER-TOOTHED
464H0500
Superseded by 464EA0500
|
$1.01 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT-HEX,5MM
312B0500
Superseded by 312AA0500
|
$0.46 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER-PLAIN-SMALL
410B0600
Superseded by 410AA0600
|
$1.28 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, HEX HEAD 6X22
110N0622
|
$4.42 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT,CABLE ADJUST LOCK
46056-001
Superseded by 92210-1131
|
$5.37 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW,CABLE ADJUST
46055-010
|
$27.74 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW,CABLE ADJUST,8MM
46055-003
|
$15.75 | ||
|
Available to order. Add to View Price |
|||
|
#11
HOLDER-CLUTCH LEVER
46094-007
|
$8.20 | ||
|
Available to order. Add to View Price |
|||
|
#
LEVER ASSY-FRNT BRAKE
46021-010
|
$40.91 | ||
|
Available to order. Add to View Price |
|||
|
#
HOLDER-FR BRAKE LEVER
46060-005
|
$8.20 | ||
|
Available to order. Add to View Price |
|||
|
#13
LEVER FRONT BRAKE
46058-004
|
$23.96 | ||
|
Available to order. Add to View Price |
|||
|
#14
DUST COVER
46071-001
|
$13.77 | ||
|
Available to order. Add to View Price |
|||
|
#
CASE ASSY-R.H
46018-019
|
$97.12 | ||
|
Available to order. Add to View Price |
|||
|
#15
CASE-R.H.UPPER
46041-005
|
$78.37 | ||
|
Available to order. Add to View Price |
|||
|
#16
CASE-R.H LOWER
46023-005
|
$18.18 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW-PAN-CROS,5X22
220B0522
Superseded by 220AA0522
|
$0.74 | ||
|
Available to order. Add to View Price |
|||
|
#18
GRIP ASSY-THROTTLE
46019-013
|
$20.54 | ||
|
Available to order. Add to View Price |
|||
|
#
SWITCH ASSY-ENG STOP
46027-006
|
$12.26 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER-SPRING
461F0300
Superseded by 461DA0300
|
$0.46 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW-PAN-CROS,3X6
220B0306
Superseded by 220AA0306
|
$0.63 | ||
|
Available to order. Add to View Price |
|||
|
#23
WIRE-LEAD
26011-045
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#24
RUBBER-R.H GRIP
46061-012
|
$34.42 | ||
|
Available to order. Add to View Price |
|||
|
#25
RUBBER-L.H GRIP
46075-017
|
$32.45 | ||
|
Available to order. Add to View Price |
|||
|
#26
BAND,L=123
92072-030
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT 8X38
92001-1405
|
$15.91 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER-SPRING,8MM
461F0800
Superseded by 461DA0800
|
$0.40 | ||
|
Available to order. Add to View Price |
|||
|
#29
HOLDER-HANDLEBAR
46012-008
|
$36.30 | ||
|
Available to order. Add to View Price |
|||
