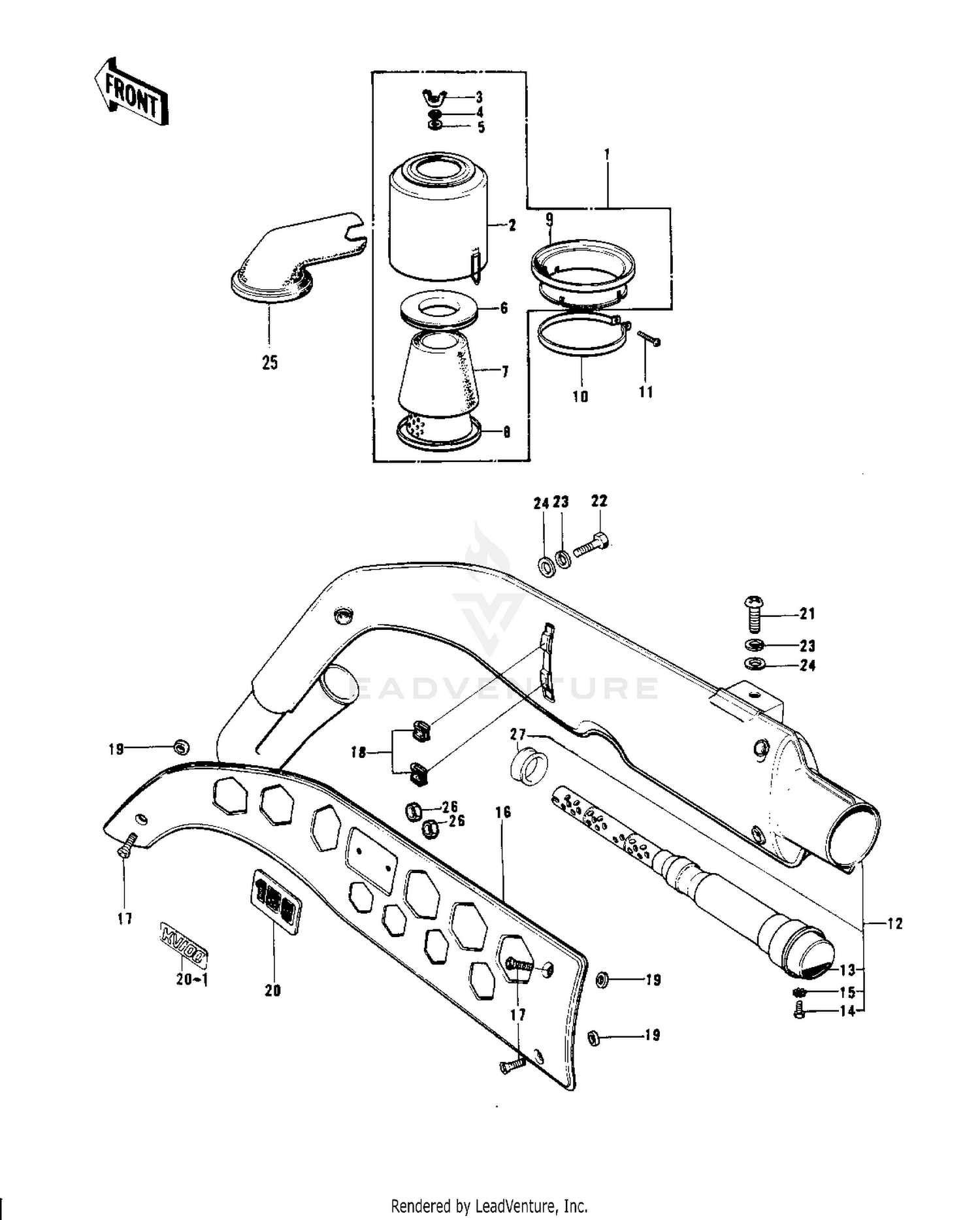

Air Cleaner/muffler ('74-'75) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
AIR CLEANER ASSY,CR
11010-059-79
|
$77.91 | ||
|
Available to order. Add to View Price |
|||
|
#2
BODY-AIR CLEANER,CR
11011-010-79
|
$61.57 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT-WING,6MM
92015-030
|
$2.81 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER-PLAIN,6MM
411B0600
Superseded by 411AA0600
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#6
CAP-AIR CLEANER
11012-031
|
$15.46 | ||
|
Available to order. Add to View Price |
|||
|
#7
ELEMENT,AIR,CLNR
11013-037
|
$10.00 | ||
|
Available to order. Add to View Price |
|||
|
#8
HOLDER-AIR CLEANER
11014-008
|
$35.89 | ||
|
Available to order. Add to View Price |
|||
|
#9
CAP AIR CLEANER B
11012-013
|
$26.12 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLAMP AIR CLEANER
92037-018
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW-PAN-CROS,6X25
220B0625
Superseded by 220AA0625
|
$2.70 | ||
|
Available to order. Add to View Price |
|||
|
#12
MUFFLER ASSY,F.BLACK
18001-104-21
|
$231.42 | ||
|
Available to order. Add to View Price |
|||
|
#13
BAFFLE TUBE
18033-078
|
$71.24 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT-UPSET,6X10
112G0610
Superseded by 112BA0610
|
$0.58 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER LOCK 6MM
464H0600
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#16
COVER,MUFFLER
18057-046
|
$49.88 | ||
|
Available to order. Add to View Price |
|||
|
#16
COVER,MUFFLER
18057-046
|
$49.88 | ||
|
Unavailable |
|||
|
#17
SCREW PAN HEAD 6X10
221E0610
|
$3.28 | ||
|
Available to order. Add to View Price |
|||
|
#18
INSULATOR
18065-007
|
$5.41 | ||
|
Available to order. Add to View Price |
|||
|
#19
INSULATOR
18065-001
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#20
EMBLEM,MUFFLER COVER
56018-161
|
$15.09 | ||
|
Available to order. Add to View Price |
|||
|
#20-1
MARK,OIL TANK
56018-1109
|
$10.78 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW-PAN HEAD,8X16
220B0816
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT-SMALL-UPSET
115G0816
Superseded by 115BA0816
|
$0.68 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT-SMALL-UPSET,8X18
115G0818
Superseded by 115BA0818
|
$5.43 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER-SPRING,8MM
461F0800
Superseded by 461DA0800
|
$0.40 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER-SPRING,8MM
461F0800
Superseded by 461DA0800
|
$0.40 | ||
|
Unavailable |
|||
|
#24
WASHER-PLAIN,8MM
411B0800
Superseded by 411AA0800
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER-PLAIN-SMALL,8MM
410B0800
Superseded by 410AA0800
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#25
AIR DUCT
14073-003
|
$12.04 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT,LOCK,5MM
92018-004
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#27
BUSHING,RUBBER
92092-011
|
$7.16 | ||
|
Available to order. Add to View Price |
|||
