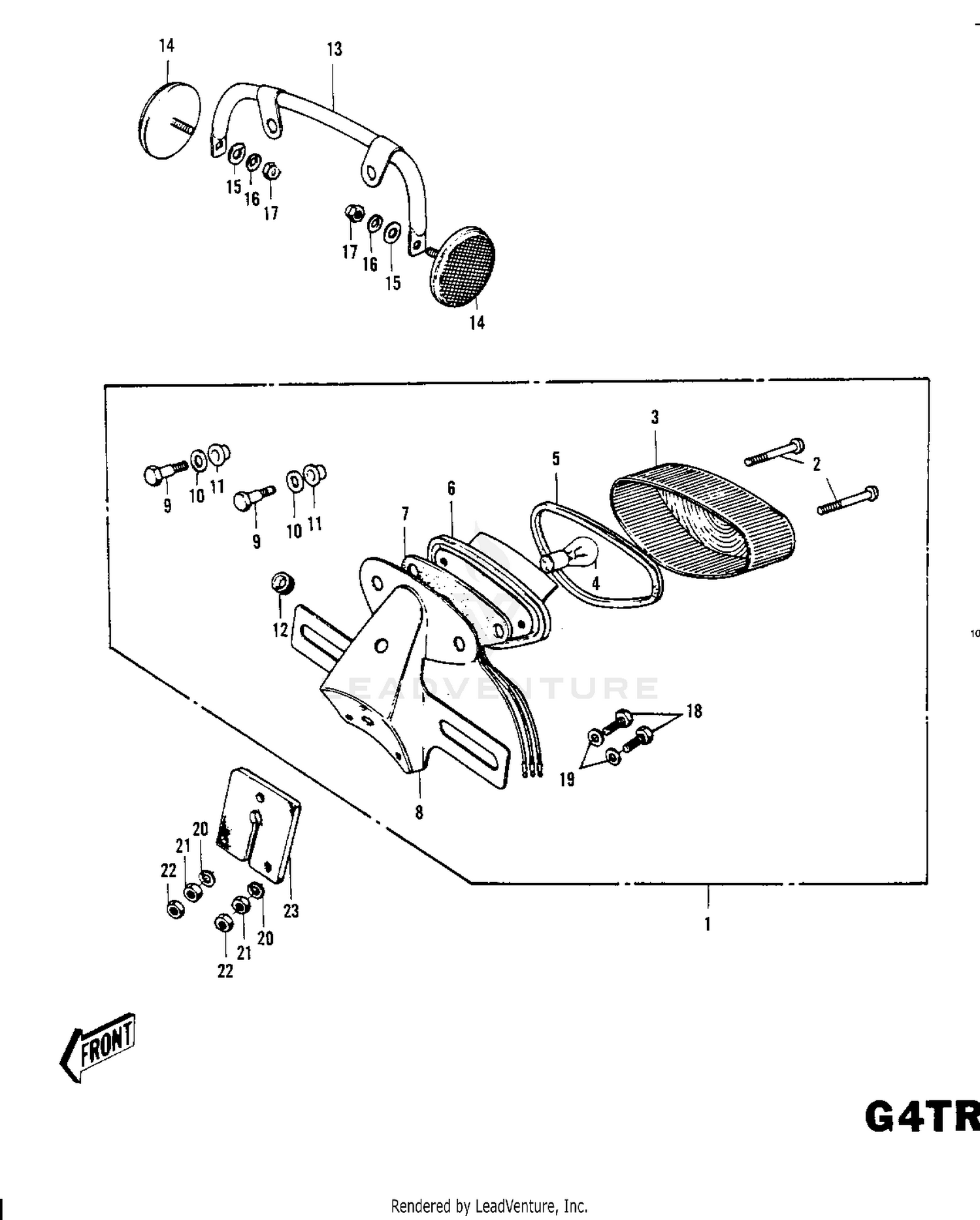

Taillight G4tr-b ('70-'73) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LAMP ASSY-TAIL,BLACK
23024-019-21
|
$142.62 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCREW
220R0455
|
$4.87 | ||
|
Available to order. Add to View Price |
|||
|
#3
LENS-TAIL LAMP
23026-022
|
$90.92 | ||
|
Available to order. Add to View Price |
|||
|
#4
BULB 6V 3/21CP
92069-023
|
$9.80 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET-TAIL LAMP LENS
23028-016
|
$10.27 | ||
|
Available to order. Add to View Price |
|||
|
#6
CASE-TAIL LAMP
23027-029
|
$40.23 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET-TAIL LAMP CASE
23028-015
|
$9.47 | ||
|
Available to order. Add to View Price |
|||
|
#8
BKT-LICENSE PLT,BLACK
23036-014-21
|
$38.75 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
92001-111
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER,8.5X20X1.6
92022-1561
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#11
DAMPER RUBBER
92075-091
|
$2.68 | ||
|
Available to order. Add to View Price |
|||
|
#12
GROMMET HARNESS 10MM
92071-019
|
$3.77 | ||
|
Available to order. Add to View Price |
|||
|
#13
BRACKET-REFLECTOR
28013-002
|
$16.37 | ||
|
Available to order. Add to View Price |
|||
|
#14
REFLECTOR-REFLEX,REAR
28012-008
|
$12.75 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER-PLAIN-SMALL
411B0500
Superseded by 410AA0500
|
$0.46 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER-SPRING,5MM
461F0500
Superseded by 461DA0500
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT-CAP,5MM
322N0500
|
$3.93 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT-UPSET
112G0630
Superseded by 112BA0630
|
$1.36 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER,6.5X20X1.6
92022-125
Superseded by 92200-0283
|
$1.36 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT-HEX,6MM
311B0600
Superseded by 311AA0600
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT-HEX
312B0600
Superseded by 312AA0600
|
$0.72 | ||
|
Available to order. Add to View Price |
|||
|
#23
DAMPER-TAIL LAMP SHCK
35039-005
|
$10.16 | ||
|
Available to order. Add to View Price |
|||
