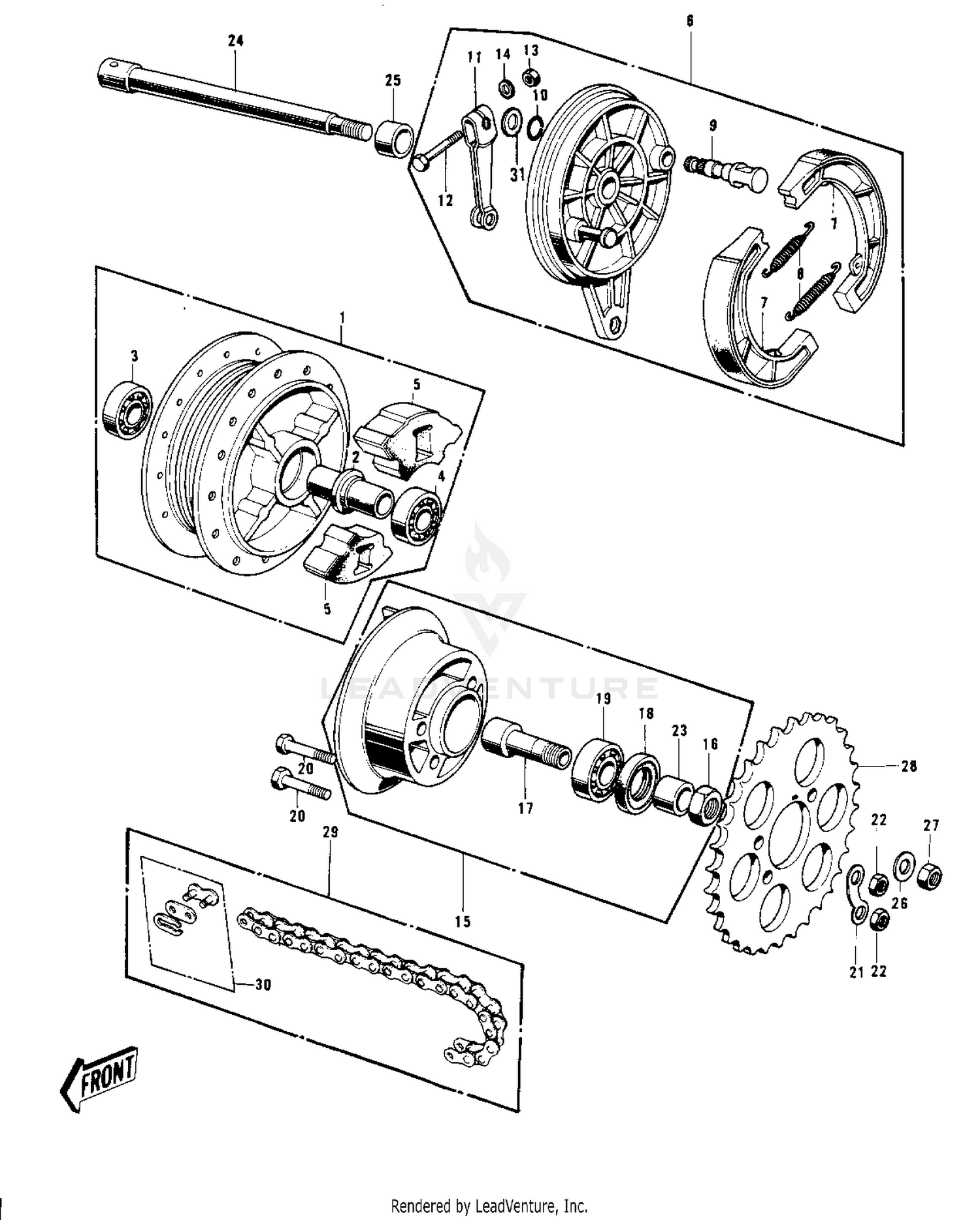

Rear Hub/brake/chain ('70-'73) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DRUM-ASSY,RR
42005-031-80
Superseded by 41034-1039
|
$204.80 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPACER-RR HUB BEARING
42010-005
|
$12.31 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING BALL #6301Z
601B6301Z
|
$19.78 | ||
|
Unavailable |
|||
|
#4
BEARING-BALL,#6201C3
601B6201
|
$10.59 | ||
|
Available to order. Add to View Price |
|||
|
#5
DAMPER REAR HUB SHOCK
42014-016
|
$17.75 | ||
|
Available to order. Add to View Price |
|||
|
#6
PANEL ASSY-REAR BRAKE
42006-014
|
$71.10 | ||
|
Available to order. Add to View Price |
|||
|
#6
PANEL-ASY,RR BRK,BLK
42006-027-21
|
$67.58 | ||
|
Available to order. Add to View Price |
|||
|
#7
SHOE-BRAKE
41048-1085
|
$21.73 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING,BRAKE SHOE
92081-1766
|
$7.75 | ||
|
Available to order. Add to View Price |
|||
|
#9
CAM SHAFT-FRONT BRAKE
41050-018
|
$22.66 | ||
|
Available to order. Add to View Price |
|||
|
#10
0 RING,11MM
92055-004
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#11
LEVER,FRONT BRAKE CAM
41053-002
|
$11.47 | ||
|
Available to order. Add to View Price |
|||
|
#11
LEVER-REAR BRAKE CAM
42029-022
|
$12.68 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT-UPSET
112G0630
Superseded by 112BA0630
|
$1.36 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT-HEX,6MM
311B0600
Superseded by 311AA0600
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER-PLAIN-SMALL
410B0600
Superseded by 410AA0600
|
$1.28 | ||
|
Available to order. Add to View Price |
|||
|
#15
COUPLING ASSY RR HUB
42033-011
|
$125.38 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT,16MM
42045-004
|
$8.30 | ||
|
Available to order. Add to View Price |
|||
|
#17
SLEEVE-RR HUB COUPLNG
42036-002
|
$30.54 | ||
|
Available to order. Add to View Price |
|||
|
#18
OIL SEAL-COUPLING
92052-003
|
$12.90 | ||
|
Available to order. Add to View Price |
|||
|
#19
BEARING BALL #6203
601B6203
|
$13.77 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT
92001-082
Superseded by 92151-1160
|
$2.90 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER LOCK
92088-011
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT-HEX-FINE,10MM
315B1000
Superseded by 315AA1000
|
$0.58 | ||
|
Available to order. Add to View Price |
|||
|
#23
BUSH,COUPLNG OIL SEAL
42037-003
|
$13.22 | ||
|
Available to order. Add to View Price |
|||
|
#24
AXLE,12X215
41068-1109
|
$39.05 | ||
|
Available to order. Add to View Price |
|||
|
#25
COLLAR-REAR HUB R.H
42032-002
|
$14.14 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER-PLAIN-SMALL,12MM
410B1200
Superseded by 410AA1200
|
$0.70 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT 10MM
42045-005
|
$7.70 | ||
|
Available to order. Add to View Price |
|||
|
#28
REAR SPROCKET 42T
42041-076
|
$51.13 | ||
|
Available to order. Add to View Price |
|||
|
#28
SPROCKET-HUB,40T
42041-1095
|
$46.98 | ||
|
Available to order. Add to View Price |
|||
|
#29
DR CHAIN 428X112H
92057-042
Superseded by 92057-031
|
$30.28 | ||
|
Available to order. Add to View Price |
|||
|
#30
JOINT-CHAIN
92058-1015
|
$5.07 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER BRAKE CAM SHT
41052-001
|
$0.88 | ||
|
Available to order. Add to View Price |
|||
