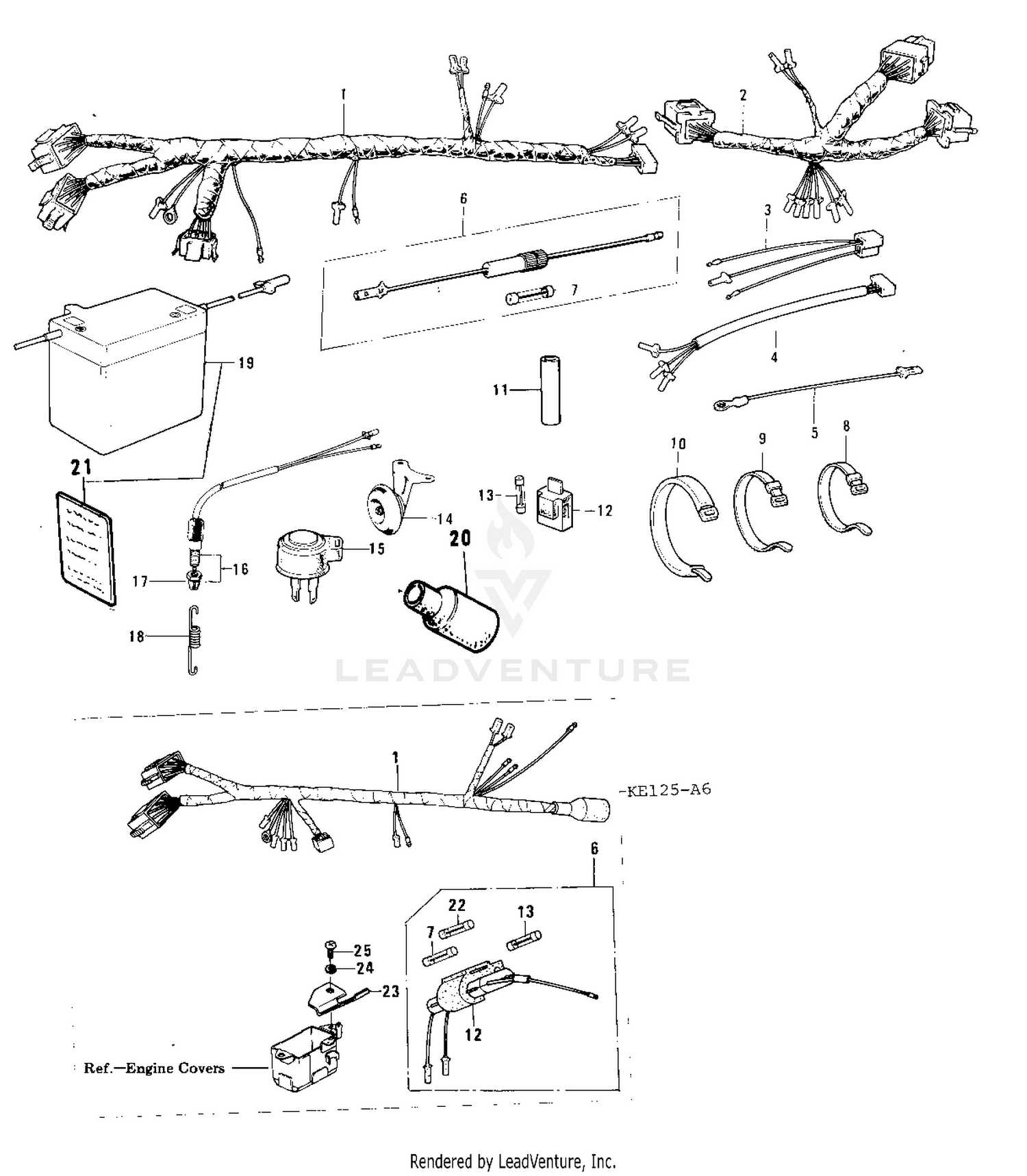

1978 Kawasaki KE125 CHASSIS ELECTRICAL EQUIPMENT ('76-'79) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WIRING HARNESS,MAIN
26001-108
|
$83.04 | ||
|
Available to order. Add to View Price |
|||
|
#1
WIRING HARNESS,MAIN
26001-1070
|
$108.44 | ||
|
Available to order. Add to View Price |
|||
|
#2
WIRING HARNESS,HDLMP
26002-045
|
$108.44 | ||
|
Available to order. Add to View Price |
|||
|
#3
WIRE,RECTIFIER LEAD
26011-072
|
$10.64 | ||
|
Available to order. Add to View Price |
|||
|
#4
WIRING HARNESS,TL LMP
26002-046
|
$16.60 | ||
|
Unavailable |
|||
|
#5
WIRE,LEAD
26011-093
|
$7.97 | ||
|
Available to order. Add to View Price |
|||
|
#6
FUSE ASSY
26004-025
|
$21.16 | ||
|
Available to order. Add to View Price |
|||
|
#6
FUSE ASSY
26004-1010
|
$30.61 | ||
|
Available to order. Add to View Price |
|||
|
#7
FUSE 15A
26006-007
|
$3.76 | ||
|
Available to order. Add to View Price |
|||
|
#7
FUSE,BLADE,10A,RED
26006-1007
|
$4.66 | ||
|
Available to order. Add to View Price |
|||
|
#8
BAND,L=123
92072-030
|
$4.66 | ||
|
Available to order. Add to View Price |
|||
|
#9
BAND,L=218
92072-032
|
$4.66 | ||
|
Available to order. Add to View Price |
|||
|
#10
BAND,WIRING HARNESS
92072-068
|
$4.10 | ||
|
Available to order. Add to View Price |
|||
|
#11
DAMPER RUBBER,HARNESS
92075-250
|
$2.11 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOLDER-SPARE FUSE
26016-004
|
$8.32 | ||
|
Available to order. Add to View Price |
|||
|
#12
DAMPER RUBBER
92075-1044
|
$8.87 | ||
|
Available to order. Add to View Price |
|||
|
#13
FUSE 15A
26006-007
|
$3.76 | ||
|
Unavailable |
|||
|
#13
FUSE,GLASS TUBE,6.4X30,15
26006-1003
|
$4.76 | ||
|
Available to order. Add to View Price |
|||
|
#14
HORN
27003-044
|
$48.11 | ||
|
Available to order. Add to View Price |
|||
|
#15
RELAY-TURN SIGNAL
27002-013
|
$44.81 | ||
|
Available to order. Add to View Price |
|||
|
#16
SWITCH,BRAKE LIGHT
27010-025
|
$27.12 | ||
|
Available to order. Add to View Price |
|||
|
#17
SWITCH,BRAKE LIGHT
27037-001
Superseded by 27010-025
|
$27.12 | ||
|
Unavailable |
|||
|
#18
SPRING,BRAKE LAMP SWITCH
27011-006
|
$5.14 | ||
|
Available to order. Add to View Price |
|||
|
#19
YUA BAT 6N6-1D-2
K26012-034
|
$43.95 | ||
|
Available to order. Add to View Price |
|||
|
#19
YUA BAT 6N6-1D-2
K26012-034
|
$43.95 | ||
|
Unavailable |
|||
|
#20
COVER,WIRING HARNESS
26009-008
|
$6.28 | ||
|
Available to order. Add to View Price |
|||
|
#21
LABEL-WARNING,BATTERY
56040-1036
|
$3.18 | ||
|
Available to order. Add to View Price |
|||
|
#22
FUSE,GLASS TUBE,6.4X30,10
26006-1002
|
$4.66 | ||
|
Available to order. Add to View Price |
|||
|
#23
BRACKET,FUSE
11034-1368
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER-SPRING,5MM
461F0500
Superseded by 461DA0500
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW-PAN-CROS,5X10
220B0510
Superseded by 220AA0510
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
