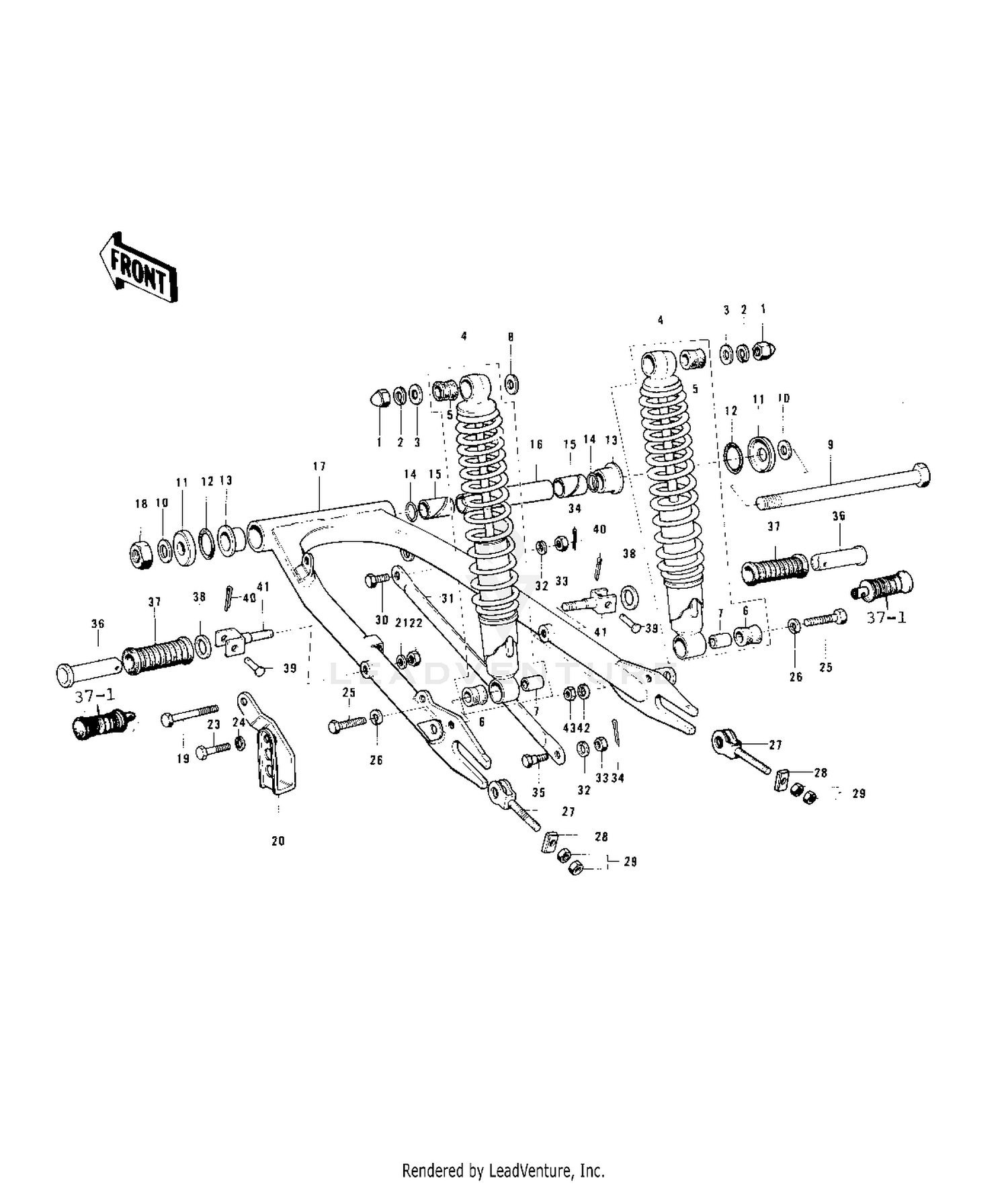

1978 Kawasaki KE125 SWING ARM/SHOCK ABSORBERS ('76-'79) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
NUT,CAP,10MM
92020-003
|
$6.07 | ||
|
Available to order. Add to View Price |
|||
|
#2
WASHER-SPRING,10MM
461F1000
Superseded by 461DA1000
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER,10.5X26X2.3
92022-044
|
$3.57 | ||
|
Available to order. Add to View Price |
|||
|
#4
SHOCK ABSBR RR
45014-113
|
$250.62 | ||
|
Available to order. Add to View Price |
|||
|
#4
SHOCK ABSBR RR
45014-1017
|
$230.41 | ||
|
Available to order. Add to View Price |
|||
|
#5
BUSH A-SHCK ABS RUBER
45017-010
|
$9.86 | ||
|
Available to order. Add to View Price |
|||
|
#6
DAMPER,SHOCKABSORBER
92075-1020
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#7
BUSH SHCK ABS PVT SFT
45016-003
|
$14.77 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER-PLAIN-SMALL,12MM
410B1200
Superseded by 410AA1200
|
$0.70 | ||
|
Available to order. Add to View Price |
|||
|
#9
SHAFT-SWING ARM PIVOT
33032-034
|
$35.82 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER-PLAIN-SMALL,12MM
410B1200
Superseded by 410AA1200
|
$0.70 | ||
|
Unavailable |
|||
|
#11
CAP-SWINGING ARM
33035-005
|
$7.85 | ||
|
Available to order. Add to View Price |
|||
|
#12
0 RING,30MM
671B2530
|
$4.71 | ||
|
Available to order. Add to View Price |
|||
|
#13
BUSHING-SWING ARM
33033-009
|
$92.67 | ||
|
Available to order. Add to View Price |
|||
|
#14
O RING,16MM
670B2016
|
$1.33 | ||
|
Available to order. Add to View Price |
|||
|
#14
0 RING,16MM
92055-001
|
$4.26 | ||
|
Available to order. Add to View Price |
|||
|
#15
SLEEVE-SWINGING ARM
33034-016
|
$19.80 | ||
|
Available to order. Add to View Price |
|||
|
#16
COLLAR,SWING ARM,LONG
33036-007
|
$9.13 | ||
|
Available to order. Add to View Price |
|||
|
#17
ARM,SWINGING
33001-063
|
$162.33 | ||
|
Available to order. Add to View Price |
|||
|
#17
SWING ARM
33001-080
|
$162.33 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT,LOCK,12MM
92019-009
Superseded by 92210-1373
|
$6.52 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT,FLANGED,10X50
92001-1254
Superseded by 92151-1369
|
$4.08 | ||
|
Available to order. Add to View Price |
|||
|
#20
GUARD,CHAIN
55020-016
|
$21.25 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER-SPRING,10MM
461F1000
Superseded by 461DA1000
|
$0.67 | ||
|
Unavailable |
|||
|
#22
NUT-HEX-FINE
314B1000
Superseded by 314AA1000
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT-SMALL-UPSET
115G0816
Superseded by 115BA0816
|
$0.68 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER-SPRING,8MM
461F0800
Superseded by 461DA0800
|
$0.40 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT,HEX HEAD 10X35
92001-1252
|
$7.12 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER-SPRING,10MM
461F1000
Superseded by 461DA1000
|
$0.67 | ||
|
Unavailable |
|||
|
#27
ADJUSTER,CHAIN
33040-057
|
$24.14 | ||
|
Available to order. Add to View Price |
|||
|
#27
ADJUSTER,CHAIN
33040-073
|
$24.01 | ||
|
Available to order. Add to View Price |
|||
|
#28
PLATE-CHAIN ADJUSTER
33041-002
|
$15.97 | ||
|
Available to order. Add to View Price |
|||
|
#28
PLATE,CHAIN ADJUSTER
33041-005
|
$8.76 | ||
|
Available to order. Add to View Price |
|||
|
#29
NUT-HEX-SMALL,8MM
311B0800
Superseded by 317AA0800
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT,HEX HEAD,AX24
92003-143
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#31
TORQUE LINK,REAR BRK
43007-039
|
$14.38 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER-SPRING,8MM
461F0800
Superseded by 461DA0800
|
$0.40 | ||
|
Unavailable |
|||
|
#33
NUT,8MM
320B0800
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#34
PIN-COTTER,2.0X20
550D2020
Superseded by 550AA2020
|
$0.96 | ||
|
Available to order. Add to View Price |
|||
|
#35
BOLT,RR TORQUE LINK
92003-144
|
$6.70 | ||
|
Available to order. Add to View Price |
|||
|
#36
STEP,RR
34028-009
|
$24.02 | ||
|
Available to order. Add to View Price |
|||
|
#37
RUBBER,REAR FOOTREST
92076-024
|
$23.10 | ||
|
Available to order. Add to View Price |
|||
|
#37-1
RUBBER,FOOTREST
92076-027
|
$34.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
WASHER-PLAIN (OPT)
92022-199
|
$10.77 | ||
|
Available to order. Add to View Price |
|||
|
#39
PIN,6X28
92043-1464
|
$7.53 | ||
|
Available to order. Add to View Price |
|||
|
#40
PIN,COTTER,2.0X12
550D2012
Superseded by 550AA2012
|
$1.03 | ||
|
Available to order. Add to View Price |
|||
|
#41
BRACKET,REAR FOOTREST
34029-013
|
$22.92 | ||
|
Available to order. Add to View Price |
|||
|
#42
WASHER-SPRING,10MM
461F1000
Superseded by 461DA1000
|
$0.67 | ||
|
Unavailable |
|||
|
#43
NUT-HEX-FINE
314B1000
Superseded by 314AA1000
|
$0.67 | ||
|
Unavailable |
|||
