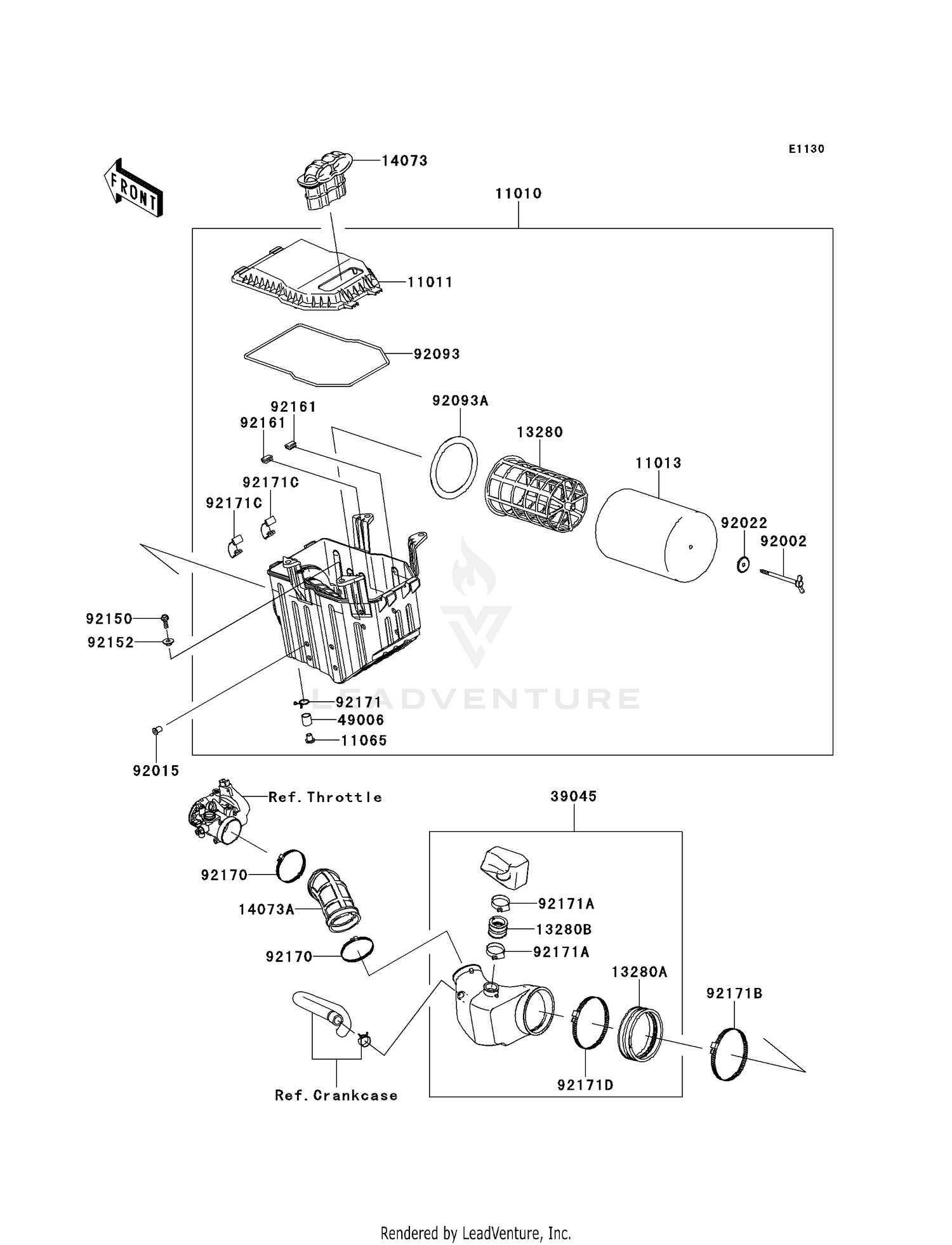

Air Cleaner Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11010
FILTER-ASSY-AIR
11010-0183
|
$280.91 | ||
|
Available to order. Add to View Price |
|||
|
#11011
CASE-AIR FILTER,UPP
11011-0075
|
$57.60 | ||
|
Available to order. Add to View Price |
|||
|
#11013
ELEMENT-AIR FILTER
11013-0017
|
$105.26 | ||
|
Available to order. Add to View Price |
|||
|
#11065
CAP
11065-0186
|
$4.69 | ||
|
Available to order. Add to View Price |
|||
|
#13280
HOLDER,PLASTIC CAGE
13280-0208
|
$69.89 | ||
|
Available to order. Add to View Price |
|||
|
#13280A
HOLDER,A/C-DUCT
13280-0230
|
$11.60 | ||
|
Available to order. Add to View Price |
|||
|
#13280B
HOLDER,RESONATOR TANK
13280-0231
|
$5.08 | ||
|
Available to order. Add to View Price |
|||
|
#14073
DUCT,A/C,INLET
14073-0115
|
$36.62 | ||
|
Available to order. Add to View Price |
|||
|
#14073A
DUCT,THROBO-A/C
14073-0154
|
$36.62 | ||
|
Available to order. Add to View Price |
|||
|
#39045
DUCT-ASSY
39045-0026
|
$61.66 | ||
|
Available to order. Add to View Price |
|||
|
#49006
BOOT,DRAIN PIPE
49006-0049
|
$3.39 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,WING,6X100
92002-2274
Superseded by 92153-1971
|
$4.52 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,WELL,5MM
92015-1757
|
$7.04 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,6.5X30.5X1.6
92022-2220
Superseded by 92200-0423
|
$1.22 | ||
|
Available to order. Add to View Price |
|||
|
#92093
SEAL
92093-0104
Superseded by 92093-0148
|
$6.21 | ||
|
Available to order. Add to View Price |
|||
|
#92093A
SEAL
92093-0116
|
$7.38 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT,6X20
92150-1014
|
$3.98 | ||
|
Available to order. Add to View Price |
|||
|
#92152
COLLAR
92152-1255
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#92161
DAMPER
92161-0538
|
$3.87 | ||
|
Available to order. Add to View Price |
|||
|
#92170
CLAMP
92170-1764
|
$11.10 | ||
|
Available to order. Add to View Price |
|||
|
#92171
CLAMP
92171-0837
|
$7.57 | ||
|
Available to order. Add to View Price |
|||
|
#92171A
CLAMP,39MM
92171-0998
|
$11.02 | ||
|
Available to order. Add to View Price |
|||
|
#92171B
CLAMP
92171-1383
|
$4.27 | ||
|
Available to order. Add to View Price |
|||
|
#92171C
CLAMP,AIR FILTER CASE
92171-1426
|
$5.14 | ||
|
Available to order. Add to View Price |
|||
|
#92171D
CLAMP,99.5MM
92171-1596
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
