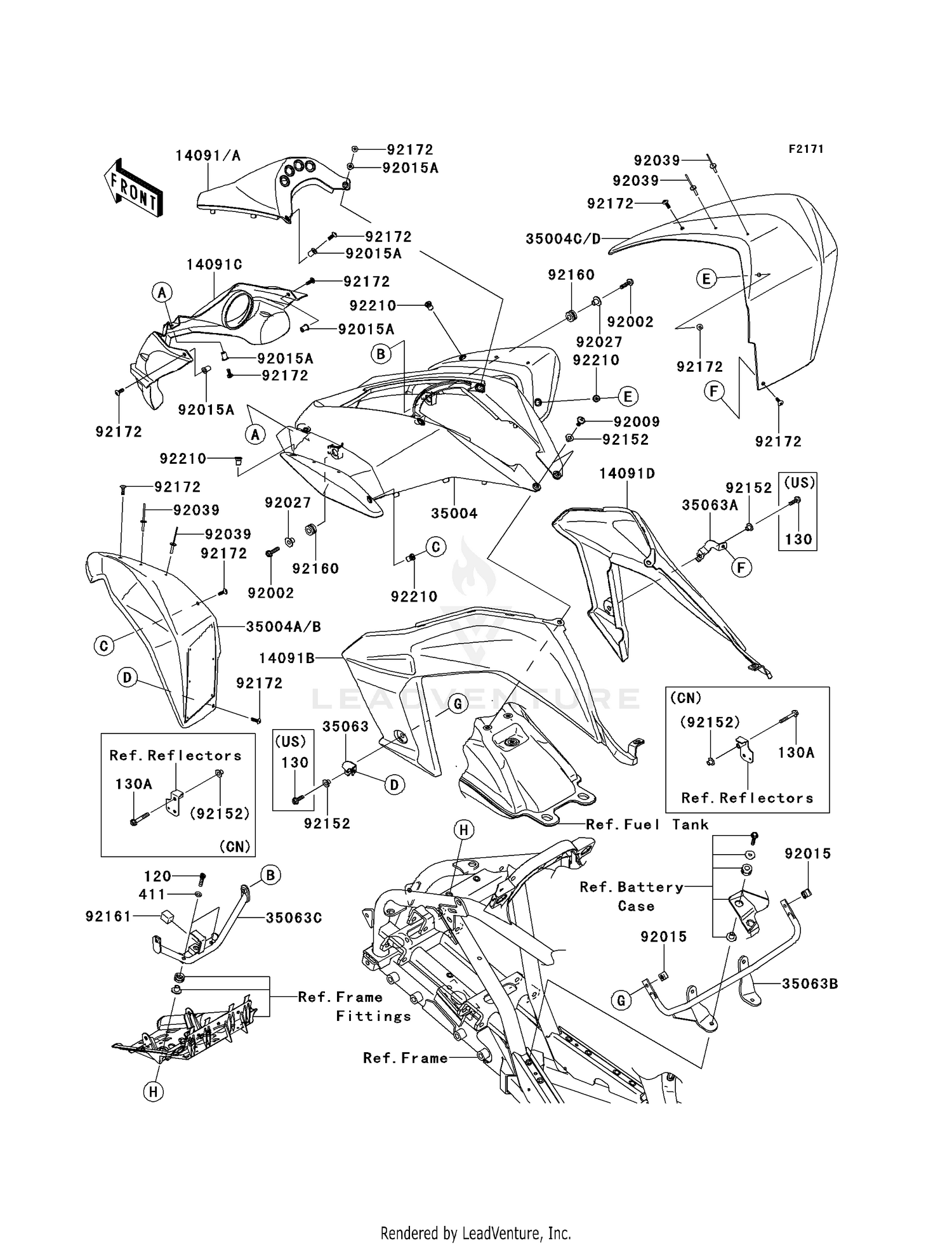

Front Fender(s) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#120
BOLT-SOCKET,6X25
120CA0625
|
$2.00 | ||
|
Available to order. Add to View Price |
|||
|
#130
BOLT-FLANGED,6X20
130BA0620
|
$1.69 | ||
|
Available to order. Add to View Price |
|||
|
#130A
BOLT-FLANGED,6X40
130CA0640
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#411
WASHER-PLAIN,6MM
411AA0600
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#14091
COVER,MAINTENANCE,B.W
14091-0554-266
|
$49.72 | ||
|
Available to order. Add to View Price |
|||
|
#14091B
COVER,SIDE,LH,BLACK
14091-0555-839
|
$75.07 | ||
|
Available to order. Add to View Price |
|||
|
#14091C
COVER,HEAD LAMP COVER
14091-0557-6Z
|
$29.74 | ||
|
Available to order. Add to View Price |
|||
|
#14091D
COVER,SIDE,RH,BLACK
14091-0793-839
|
$75.07 | ||
|
Available to order. Add to View Price |
|||
|
#35004
FENDER-FRONT,MAIN,L.G
35004-0067-290
|
$136.76 | ||
|
Available to order. Add to View Price |
|||
|
#35004A
FENDER-FRONT,OUTER,LH
35004-0068-290
|
$90.04 | ||
|
Available to order. Add to View Price |
|||
|
#35004C
FENDER-FRONT,OUTER,RH
35004-0069-290
|
$90.04 | ||
|
Available to order. Add to View Price |
|||
|
#35063
STAY,FRONT FENDER,LH
35063-0398
|
$10.12 | ||
|
Available to order. Add to View Price |
|||
|
#35063A
STAY,FRONT FENDER,RH
35063-0399
|
$10.12 | ||
|
Available to order. Add to View Price |
|||
|
#35063B
STAY,FRONT FENDER,OUT
35063-0457
|
$48.11 | ||
|
Available to order. Add to View Price |
|||
|
#35063C
STAY,FRONT FENDER,MAI
35063-0548
|
$45.05 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT-FLANGED,6X25
92002-1339
Superseded by 130CA0625
|
$4.31 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,6X18
92009-1663
Superseded by 92009-3805
|
$4.56 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,6MM
92015-1602
|
$7.09 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,WELL,5MM
92015-1757
|
$7.04 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR,FLANGED,L=12.1,BLACK
92027-1651
|
$5.50 | ||
|
Available to order. Add to View Price |
|||
|
#92039
RIVET
92039-0039
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#92152
COLLAR,6.3X8.3X9.2
92152-0237
|
$5.47 | ||
|
Available to order. Add to View Price |
|||
|
#92160
DAMPER,10X20X12
92160-1167
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92161
DAMPER
92161-0661
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#92172
SCREW,5MM
92172-0292
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#92210
NUT,WELL,5MM
92210-0370
|
$5.47 | ||
|
Available to order. Add to View Price |
|||
