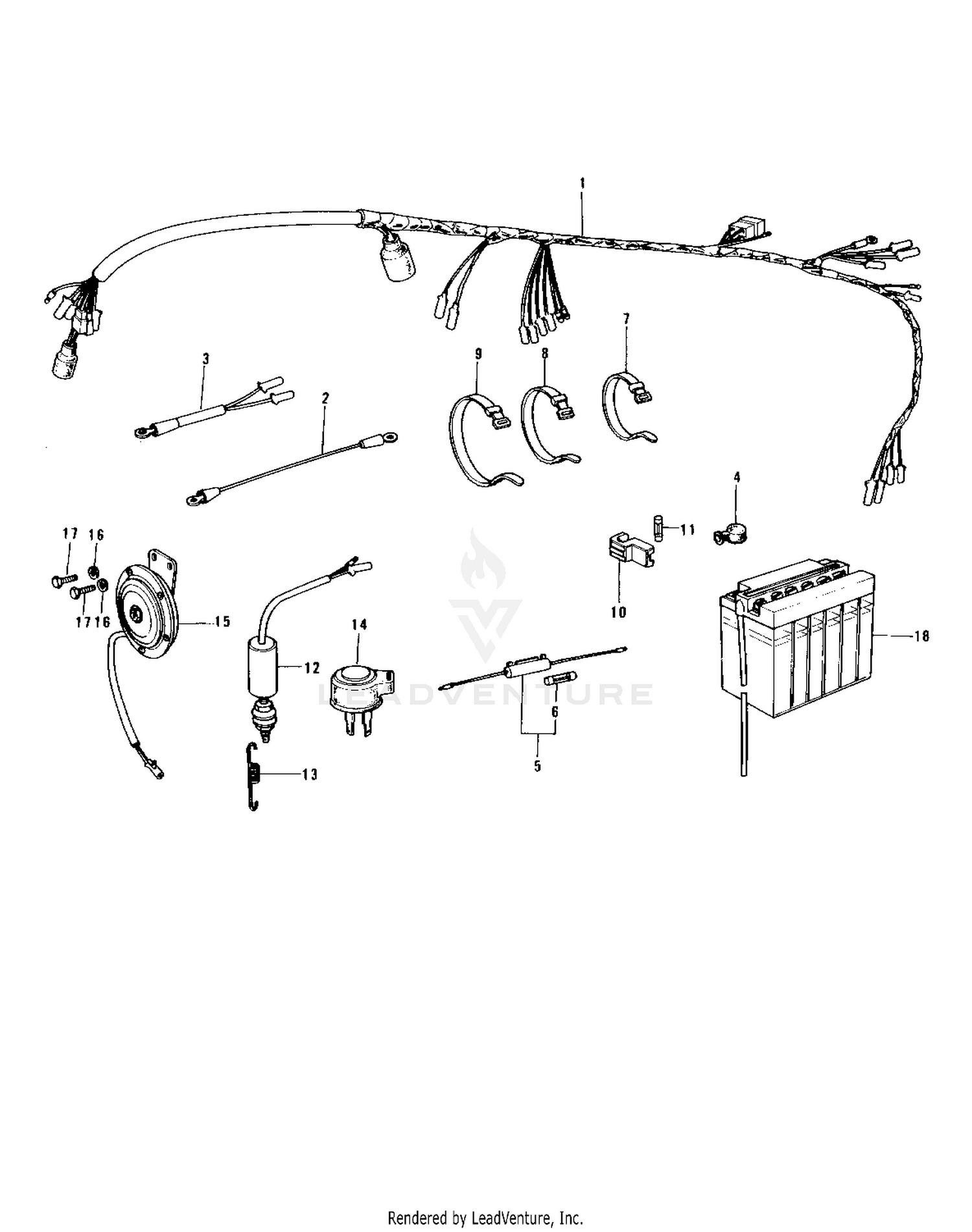

Chassis Electrical Equipment ('74-'75 S3 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WIRING HARNESS,MAIN
26001-104
|
$212.28 | ||
|
Available to order. Add to View Price |
|||
|
#2
UNAVAILABLE IN PRICE BOOK
26010-107
|
|||
|
Unavailable |
|||
|
#2
WIRE-LEAD
26011-084
|
$15.09 | ||
|
Available to order. Add to View Price |
|||
|
#3
WIRE,BATTERY LEAD
26010-033
|
$14.84 | ||
|
Available to order. Add to View Price |
|||
|
#4
GROMMET,STARTER TERMINAL
92073-001
Superseded by 92071-1120
|
$12.62 | ||
|
Available to order. Add to View Price |
|||
|
#5
FUSE ASSY
26004-013
|
$15.71 | ||
|
Available to order. Add to View Price |
|||
|
#6
FUSE 20A
26006-002
|
$3.68 | ||
|
Available to order. Add to View Price |
|||
|
#7
BAND,L=123
92072-030
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#8
BAND,L=149
92072-031
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#9
BAND,L=186
92072-056
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOLDER,SPARE FUSE
26016-002
|
$7.62 | ||
|
Available to order. Add to View Price |
|||
|
#11
FUSE 20A
26006-002
|
$3.68 | ||
|
Unavailable |
|||
|
#12
SWITCH-BRAKE LAMP
27010-020
|
$47.10 | ||
|
Available to order. Add to View Price |
|||
|
#12
SWITCH,REAR BRAKE
27010-015
Superseded by 27010-1482
|
$34.32 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING-BRAKE LAMP SW
27011-013
|
$14.17 | ||
|
Available to order. Add to View Price |
|||
|
#14
RELAY-ASSY
27002-011
Superseded by 27002-0003
|
$97.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
HORN
27003-042
|
$47.01 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER-SPRING,8MM
461F0800
Superseded by 461DA0800
|
$0.40 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT-SMALL-UPSET
115G0816
Superseded by 115BA0816
|
$0.68 | ||
|
Available to order. Add to View Price |
|||
|
#18
YUA BAT 12N5.5-4A
26012-022
Superseded by 26012-037
|
$50.95 | ||
|
Available to order. Add to View Price |
|||
