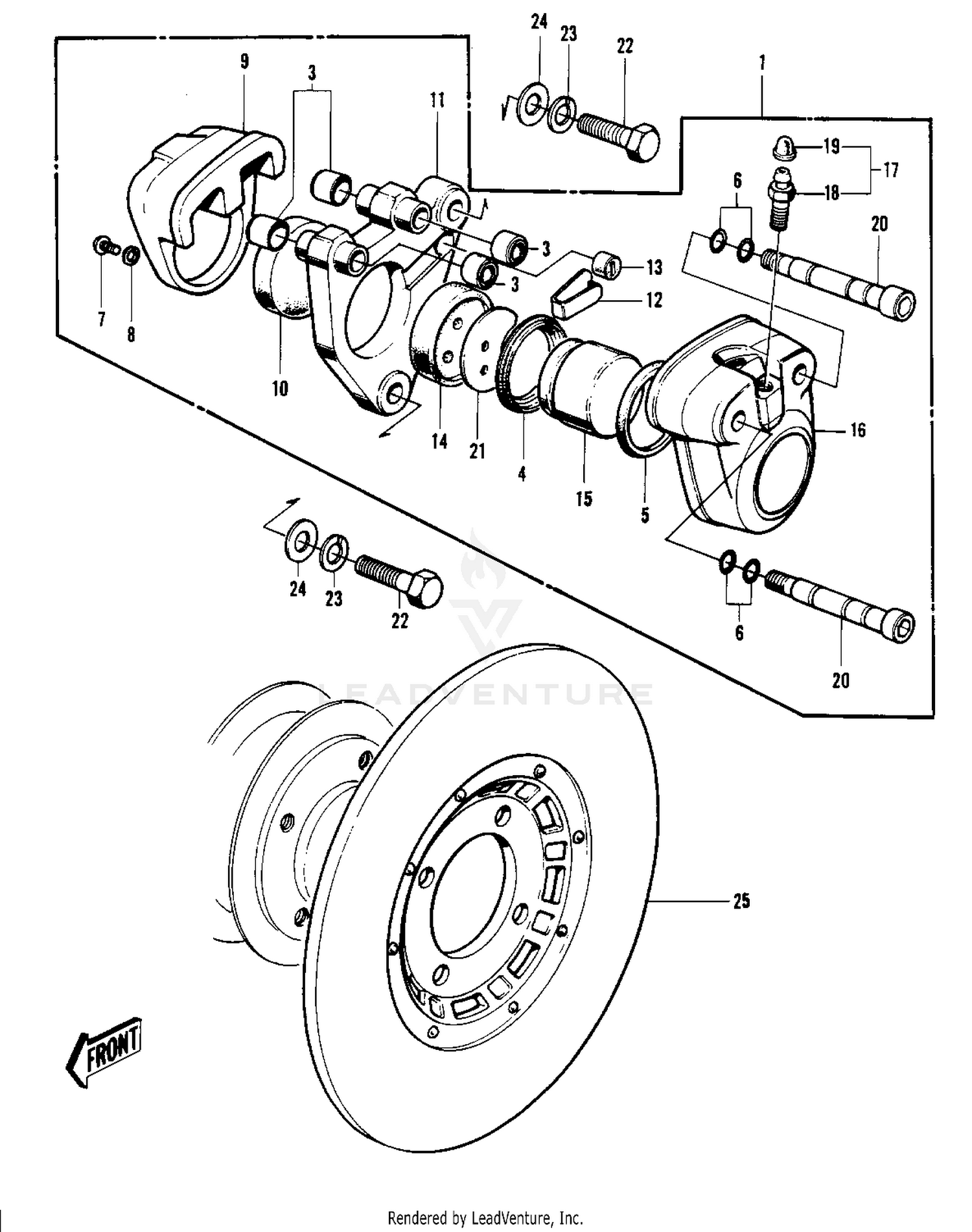

Front Brake ('74-'75 S3/s3-a) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CALIPER ASSY
43041-003
|
$389.35 | ||
|
Available to order. Add to View Price |
|||
|
#1
CALIPER ASSY.
43041-007
|
$313.84 | ||
|
Available to order. Add to View Price |
|||
|
#2
REPAIR SET,CALLIPER
43073-003
|
$25.35 | ||
|
Available to order. Add to View Price |
|||
|
#3
DUST SEAL-SHAFT
43052-002
|
$11.00 | ||
|
Available to order. Add to View Price |
|||
|
#4
DUST SEAL-PISTON
43054-002
|
$28.55 | ||
|
Available to order. Add to View Price |
|||
|
#5
PACKING,PISTON SEAL
43049-001
Superseded by 43049-1097
|
$10.67 | ||
|
Available to order. Add to View Price |
|||
|
#6
0 RING,SHAFT
43053-001
|
$11.98 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW-PAN-CROS,6X12
220B0612
Superseded by 220AA0612
|
$1.16 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#9
CALIPER B
43043-002
|
$93.07 | ||
|
Available to order. Add to View Price |
|||
|
#10
PAD B
43051-001
|
$101.91 | ||
|
Available to order. Add to View Price |
|||
|
#11
HOLDER-CALIPER
43044-003
|
$112.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
STOPPER-PAD A
43046-001
|
$3.42 | ||
|
Available to order. Add to View Price |
|||
|
#13
BUSHING-RUBBER
43047-001
|
$8.98 | ||
|
Available to order. Add to View Price |
|||
|
#14
PAD A
43082-001
|
$47.12 | ||
|
Available to order. Add to View Price |
|||
|
#15
PISTON-CALIPER
43048-001
|
$35.88 | ||
|
Available to order. Add to View Price |
|||
|
#16
CALIPER A
43042-003
|
$156.20 | ||
|
Available to order. Add to View Price |
|||
|
#17
BLEEDER SET
43085-001
|
$23.70 | ||
|
Available to order. Add to View Price |
|||
|
#18
BLEEDER SET
43056-003
Superseded by 43085-001
|
$23.70 | ||
|
Unavailable |
|||
|
#19
CAP-BREATHER
43057-003
|
$2.38 | ||
|
Available to order. Add to View Price |
|||
|
#20
SHAFT
43045-002
|
$34.59 | ||
|
Available to order. Add to View Price |
|||
|
#21
SHIM
43076-001
|
$9.51 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT
92007-032
|
$13.33 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER-SPRING,10MM
461F1000
Superseded by 461DA1000
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER-PLAIN-SMALL,10MM
410B1000
Superseded by 410AA1000
|
$0.58 | ||
|
Available to order. Add to View Price |
|||
|
#25
DISC PLATE,FRONT BRAK
41080-006
|
$473.53 | ||
|
Available to order. Add to View Price |
|||
