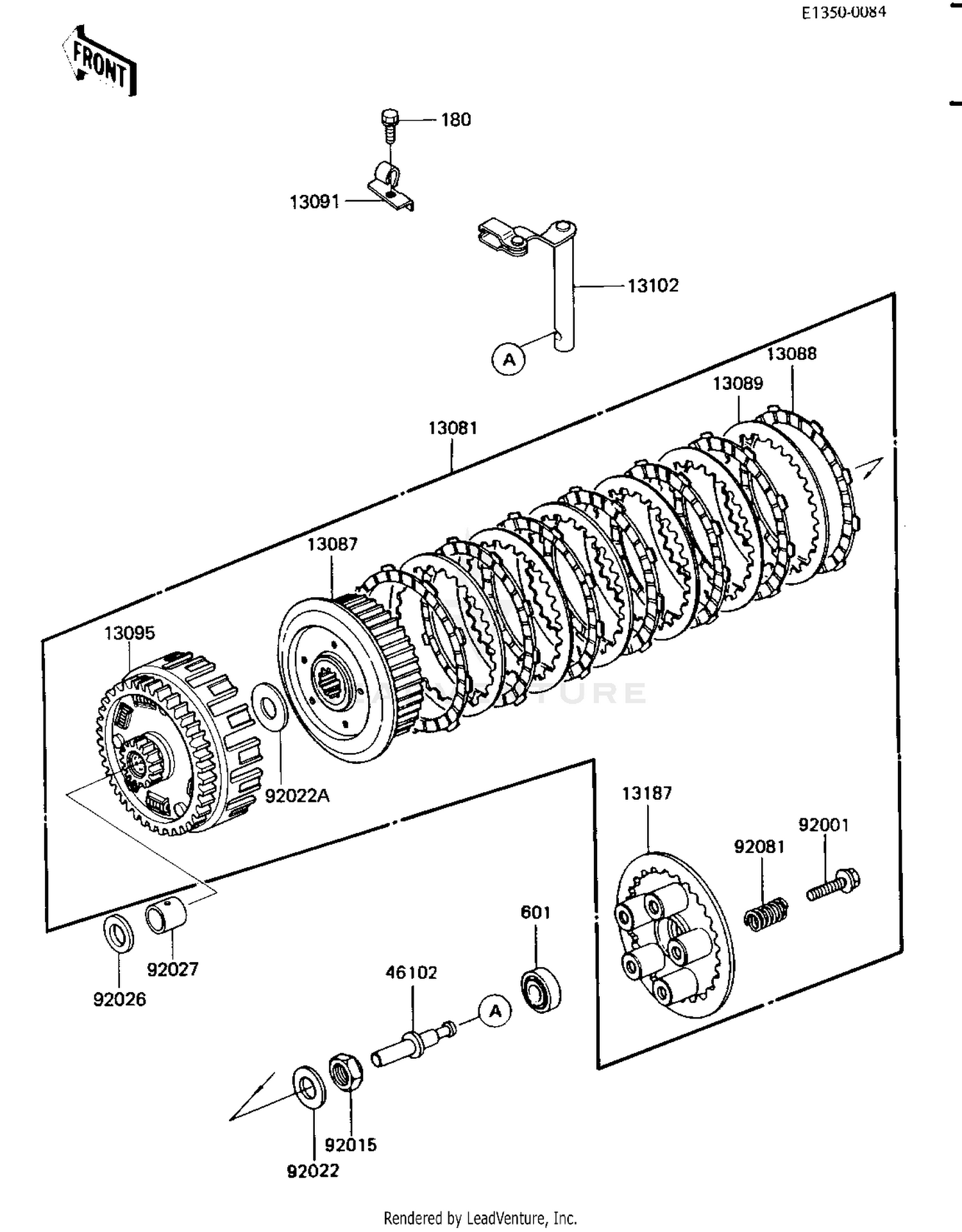

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#13081
CLUTCH-ASSY
13081-1159
|
$520.58 | ||
|
Available to order. Add to View Price |
|||
|
#13087
HUB-CLUTCH
13087-1052
Superseded by 13087-1162
|
$129.38 | ||
|
Available to order. Add to View Price |
|||
|
#13088
PLATE-FRICTION
13088-040
|
$12.12 | ||
|
Available to order. Add to View Price |
|||
|
#13089
PLATE-CLUTCH,T=2.0
13089-026
|
$12.33 | ||
|
Available to order. Add to View Price |
|||
|
#13091
HOLDER,CLUTCH CABLE
13091-1257
|
$9.56 | ||
|
Available to order. Add to View Price |
|||
|
#13095
HOUSING-COMP-CLUTCH
13095-5003
|
$328.44 | ||
|
Available to order. Add to View Price |
|||
|
#13102
RELEASE-COMP-CLUTCH
13102-1058
Superseded by 13102-1074
|
$47.69 | ||
|
Available to order. Add to View Price |
|||
|
#13187
PLATE-CLUTCH OPERATIN
13187-1012
Superseded by 13187-1087
|
$74.97 | ||
|
Available to order. Add to View Price |
|||
|
#46102
ROD
46102-1030
|
$28.76 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,FLANGED,6X18
92001-1066
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,20MM
92015-1555
|
$12.62 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,20.3X36X2.3
92022-1116
|
$8.28 | ||
|
Available to order. Add to View Price |
|||
|
#92022A
WASHER,25.5X52.6X2
92022-1476
|
$9.78 | ||
|
Available to order. Add to View Price |
|||
|
#92026
SPACER,25.1X38X4
92026-1206
|
$20.24 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR,25X30X29.2
92027-1684
|
$18.83 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,CLUTCH
92081-1864
|
$9.16 | ||
|
Available to order. Add to View Price |
|||
|
#180
BOLT-UPSET-WS
180J0612
Superseded by 180BB0612
|
$4.18 | ||
|
Available to order. Add to View Price |
|||
|
#601
BEARING-BALL,6001C3ML01
92045-1235
|
$15.67 | ||
|
Available to order. Add to View Price |
|||
