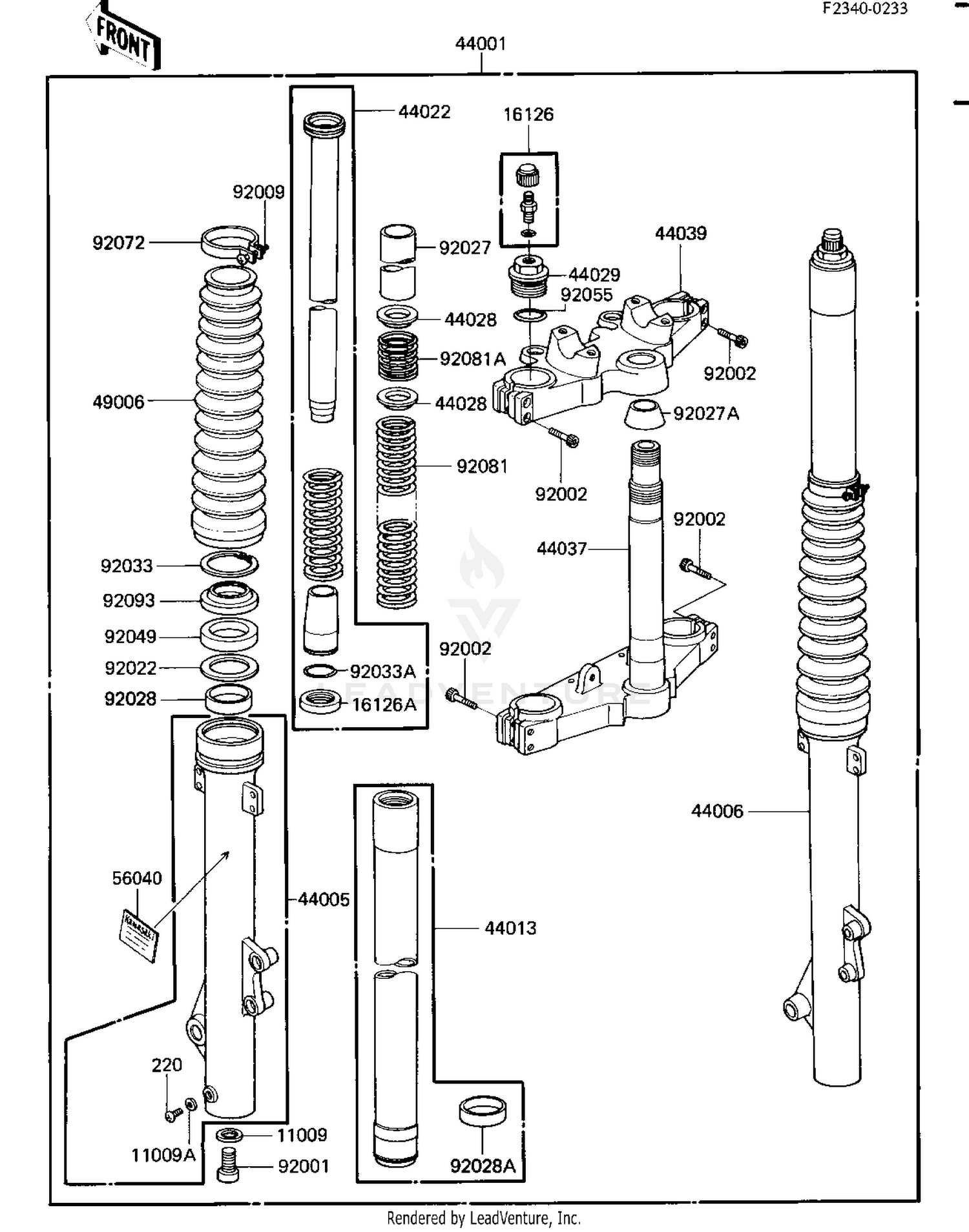

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11009
GASKET,FORK CYLINDER BOLT
11009-1127
|
$5.02 | ||
|
Available to order. Add to View Price |
|||
|
#11009A
GASKET,FORK DRAIN PLUG
44045-002
|
$5.02 | ||
|
Available to order. Add to View Price |
|||
|
#16126
VALVE AIR
16126-1052
|
$33.72 | ||
|
Available to order. Add to View Price |
|||
|
#16126A
VALVE,AIR
16126-1113
|
$79.19 | ||
|
Available to order. Add to View Price |
|||
|
#44001
FORK-FRONT
44001-1511
|
$1,152.46 | ||
|
Available to order. Add to View Price |
|||
|
#44005
PIPE-LEFT FORK OUTER
44005-1215
|
$330.46 | ||
|
Available to order. Add to View Price |
|||
|
#44006
PIPE-RIGHT FORK OUTER
44006-1214
|
$278.61 | ||
|
Available to order. Add to View Price |
|||
|
#44013
PIPE-FORK INNER
44013-1218
|
$330.38 | ||
|
Available to order. Add to View Price |
|||
|
#44022
CYLINDER-FORK
44022-1166
|
$104.08 | ||
|
Available to order. Add to View Price |
|||
|
#44028
GUIDE-FORK SPRING
44028-1003
|
$10.88 | ||
|
Available to order. Add to View Price |
|||
|
#44029
SEAT-FORK SPRING
44029-1042
|
$69.39 | ||
|
Available to order. Add to View Price |
|||
|
#44037
HOLDER-FORK-UNDER
44037-1171
|
$217.95 | ||
|
Available to order. Add to View Price |
|||
|
#44039
HOLDER-FORK UPPER
44039-1101
|
$146.10 | ||
|
Available to order. Add to View Price |
|||
|
#49006
BOOT,FORK,BLACK
49006-1166
Superseded by 49006-1166-BD
|
$77.49 | ||
|
Available to order. Add to View Price |
|||
|
#56040
LABEL,FRONT FORK
56040-1120
|
$5.90 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,FORK CYLINDER
92001-1309
|
$7.36 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,SOCKET,8X32
92002-1277
|
$9.16 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW
92009-1348
|
$5.02 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,FORK OUTER PIPE
92022-1262
|
$8.30 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR,FORK SPRING
92027-1790
|
$30.23 | ||
|
Available to order. Add to View Price |
|||
|
#92027A
COLLAR,UPPER BRACKET
92027-1791
|
$63.40 | ||
|
Available to order. Add to View Price |
|||
|
#92028
BUSHING-FRONT FORK,OU
44065-1091
|
$25.04 | ||
|
Available to order. Add to View Price |
|||
|
#92028A
BUSHING,FORK PIPE
92028-1126
|
$47.35 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP,FORK
92033-1047
|
$6.25 | ||
|
Available to order. Add to View Price |
|||
|
#92033A
RING-SNAP,AIR VALVE
92033-1175
|
$7.61 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,FRONT FORK
92049-1180
|
$21.35 | ||
|
Available to order. Add to View Price |
|||
|
#92055
0 RING,FORK TOP CAP
92055-1050
|
$6.07 | ||
|
Available to order. Add to View Price |
|||
|
#92072
CLAMP, BOOT, BLACK
92072-1171
Superseded by 92037-1321
|
$9.19 | ||
|
Unavailable |
|||
|
#92081
SPRING,FRONT FORK
92081-1722
|
$56.40 | ||
|
Available to order. Add to View Price |
|||
|
#92081A
SPRING,FRONT FORK
92081-1734
|
$7.56 | ||
|
Available to order. Add to View Price |
|||
|
#92093
SEAL,FRONT FORK
92093-1166
|
$17.57 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROS,4X8
220B0408
Superseded by 220AA0408
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
