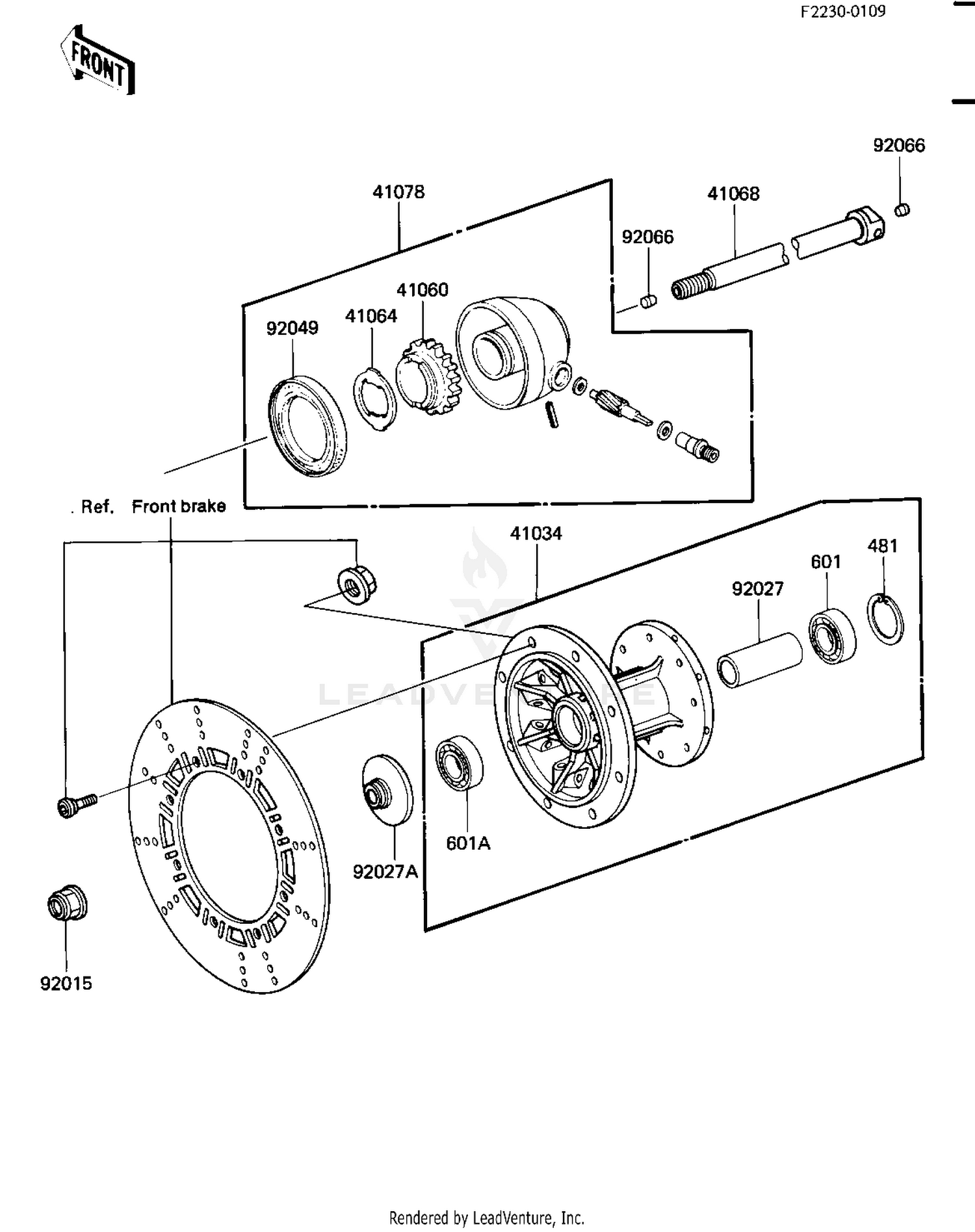

Front Hub Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#41034
DRUM-ASSY,FRONT BRAKE
41034-1106
|
$402.19 | ||
|
Available to order. Add to View Price |
|||
|
#41060
GEAR-METER SCREW,24T
41060-1101
|
$26.12 | ||
|
Available to order. Add to View Price |
|||
|
#41064
RECEIVER-SPEEDOMETER
41064-1051
|
$11.40 | ||
|
Available to order. Add to View Price |
|||
|
#41068
AXLE,FR,L=230
41068-1159
|
$49.20 | ||
|
Available to order. Add to View Price |
|||
|
#41078
CASE-ASSY-METER GEAR
41078-1051
|
$100.13 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,14MM
92015-1401
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR,FRONT BRAKE DR
92027-1683
|
$37.59 | ||
|
Available to order. Add to View Price |
|||
|
#92027A
COLLAR,FRONT AXLE,L=2
92027-1694
|
$18.01 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,METER GEAR CASE
92049-1172
|
$17.31 | ||
|
Available to order. Add to View Price |
|||
|
#92066
PLUG
92066-1181
|
$3.52 | ||
|
Available to order. Add to View Price |
|||
|
#481
CIRCLIP-TYPE-C,35MM
481J3500
|
$1.92 | ||
|
Available to order. Add to View Price |
|||
|
#601
BEARING-BALL,#6202UG
601B6202U
Superseded by 601B6202UG
|
$12.17 | ||
|
Unavailable |
|||
|
#601A
BEARING-BALL,#6203UG
601B6203U
Superseded by 601B6203UG
|
$32.94 | ||
|
Available to order. Add to View Price |
|||
