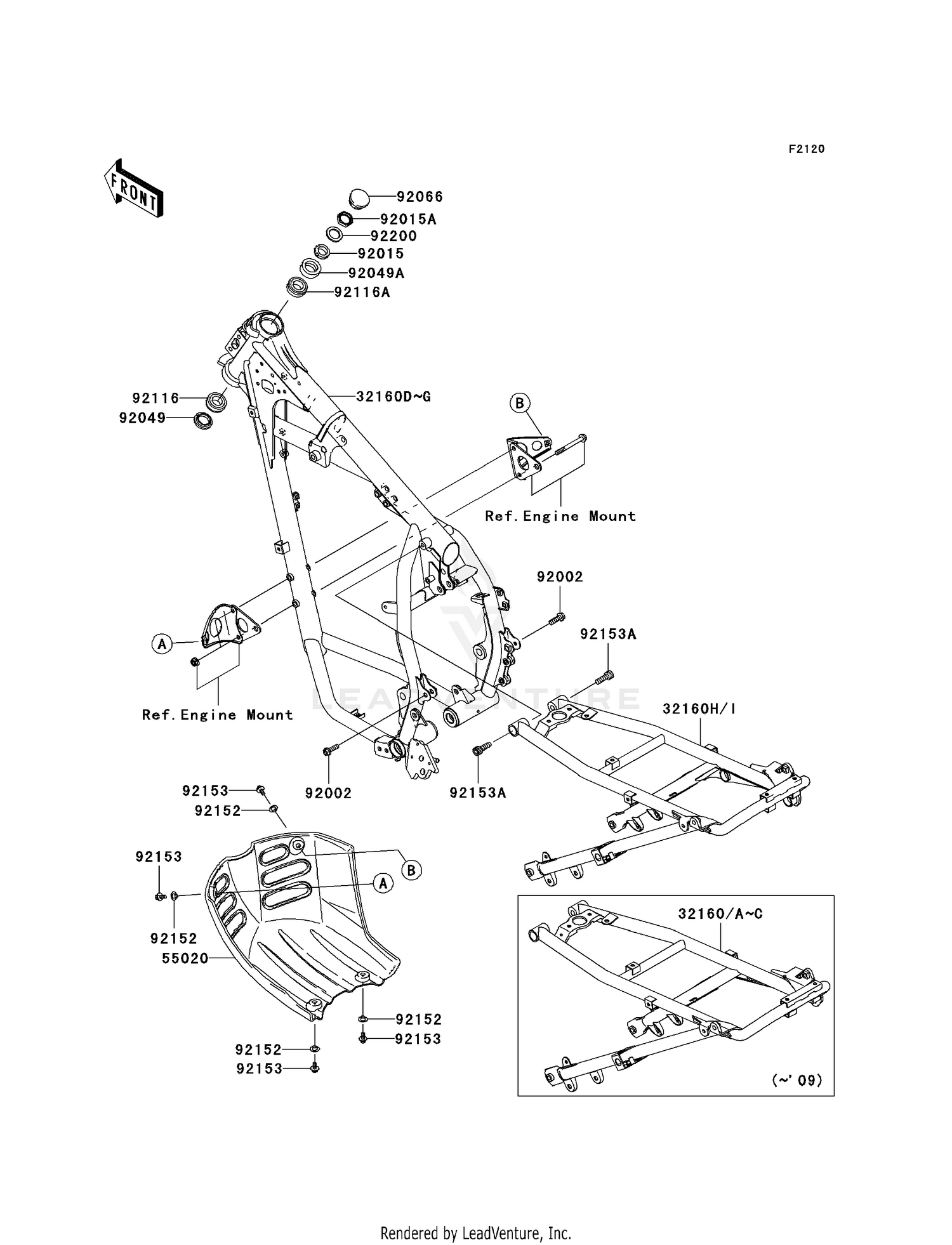

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#32160D
FRAME-COMP,MAIN,F.S.B
32160-0274-18R
|
$1,476.81 | ||
|
Available to order. Add to View Price |
|||
|
#32160F
FRAME-COMP,MAIN,F.S.B
32160-0275-18R
|
$1,476.81 | ||
|
Available to order. Add to View Price |
|||
|
#32160H
FRAME-COMP,RR,F.S.BLA
32160-0443-18R
Superseded by 32160-0487-18R
|
$1,065.80 | ||
|
Available to order. Add to View Price |
|||
|
#32160I
FRAME-COMP,RR,F.S.BLA
32160-0444-18R
Superseded by 32160-0488-18R
|
$1,065.80 | ||
|
Available to order. Add to View Price |
|||
|
#55020
GUARD,ENGINE,F.BLACK
55020-0235-6Z
|
$159.78 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,FLANGED,8X28
92002-1971
Superseded by 92153-1101
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,25MM,T=12
92015-1546
|
$20.21 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,STEERING STEM,22MM
92015-1653
Superseded by 92210-1521
|
$16.09 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,XMHE36X52X4J
92049-1162
|
$8.96 | ||
|
Available to order. Add to View Price |
|||
|
#92049A
SEAL-OIL,STEERING STEM
92049-1214
|
$16.09 | ||
|
Available to order. Add to View Price |
|||
|
#92066
PLUG
92066-1306
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#92116
BEARING-ROLLER,HR320/28XJ
92116-1009
|
$34.93 | ||
|
Available to order. Add to View Price |
|||
|
#92116A
BEARING-ROLLER,HICAP 32005JR
92116-1052
|
$34.93 | ||
|
Available to order. Add to View Price |
|||
|
#92152
COLLAR
92152-0427
|
$7.48 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT,6X16
92153-0863
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#92153A
BOLT,SOCKET,10X30
92153-1524
|
$7.48 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER,STEERING STEM
92200-0517
|
$7.34 | ||
|
Available to order. Add to View Price |
|||
