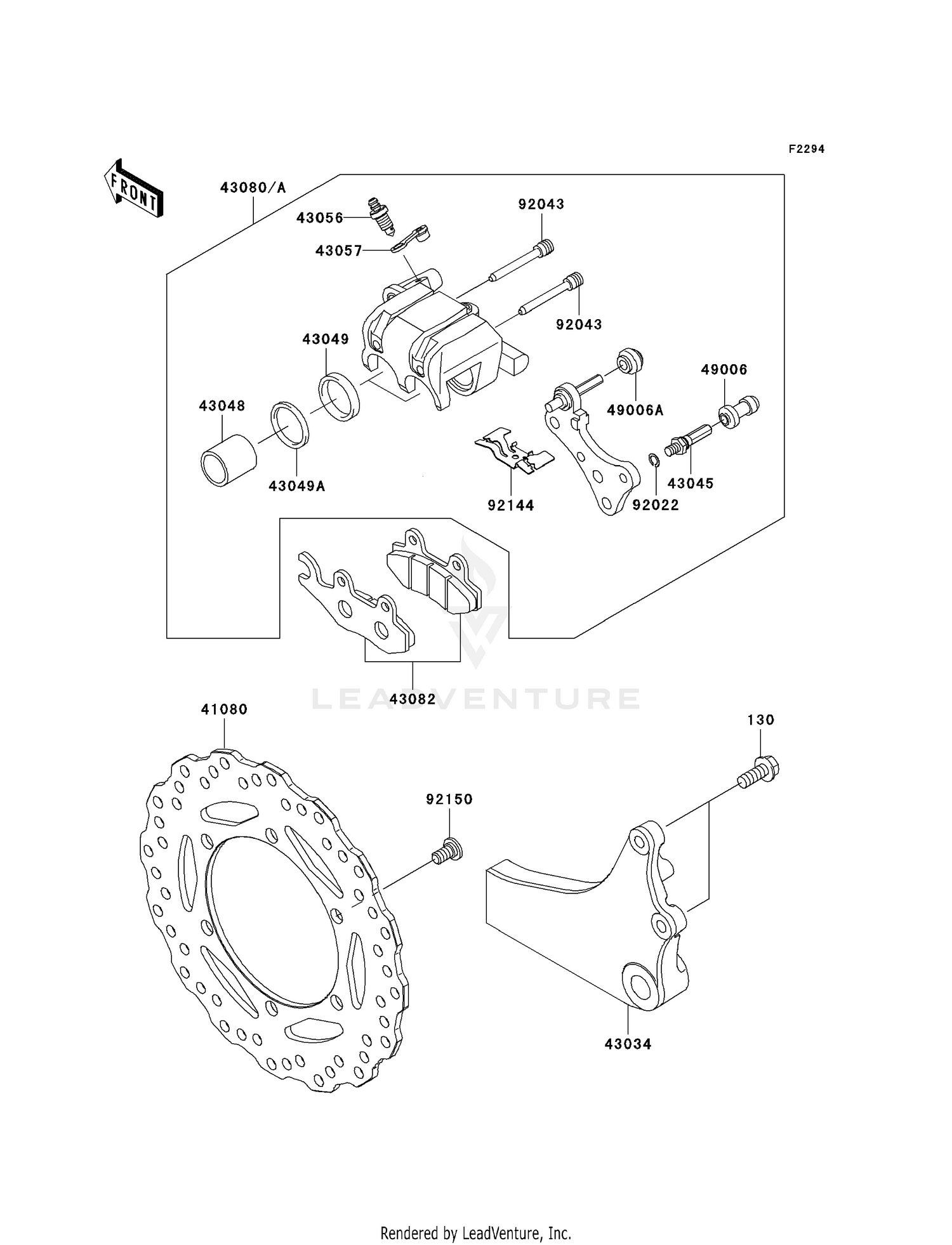

Rear Brake Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#130
BOLT-FLANGED,8X20
130BA0820
|
$4.06 | ||
|
Available to order. Add to View Price |
|||
|
#41080
DISC,RR,BLACK
41080-0100-11H
|
$291.96 | ||
|
Available to order. Add to View Price |
|||
|
#43034
HOLDER-BRAKE,REAR CAL
43034-0030
|
$158.20 | ||
|
Available to order. Add to View Price |
|||
|
#43045
SHAFT-CALIPER
43045-1010
|
$20.03 | ||
|
Available to order. Add to View Price |
|||
|
#43048
PISTON-CALIPER
43048-1066
|
$70.26 | ||
|
Available to order. Add to View Price |
|||
|
#43049
PACKING
43049-1063
|
$7.75 | ||
|
Available to order. Add to View Price |
|||
|
#43049A
PACKING
43049-1064
|
$5.96 | ||
|
Available to order. Add to View Price |
|||
|
#43056
BREATHER-BRAKE
43056-1055
Superseded by 43056-1056
|
$13.79 | ||
|
Available to order. Add to View Price |
|||
|
#43057
CAP-BREATHER
43057-1001
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#43080A
CALIPER-SUB-ASSY,RR,S
43080-0059-GN
|
$416.94 | ||
|
Available to order. Add to View Price |
|||
|
#43082
PAD-ASSY-BRAKE
43082-0080
|
$65.50 | ||
|
Available to order. Add to View Price |
|||
|
#49006
BOOT,CALIPER
49006-1088
|
$11.20 | ||
|
Available to order. Add to View Price |
|||
|
#49006A
BOOT,CALIPER
49006-1242
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,WAVE
92022-1373
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN,HANGER
92043-1416
|
$17.91 | ||
|
Available to order. Add to View Price |
|||
|
#92144
SPRING,PAD
92144-1847
|
$29.15 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT,8X15
92150-1852
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
