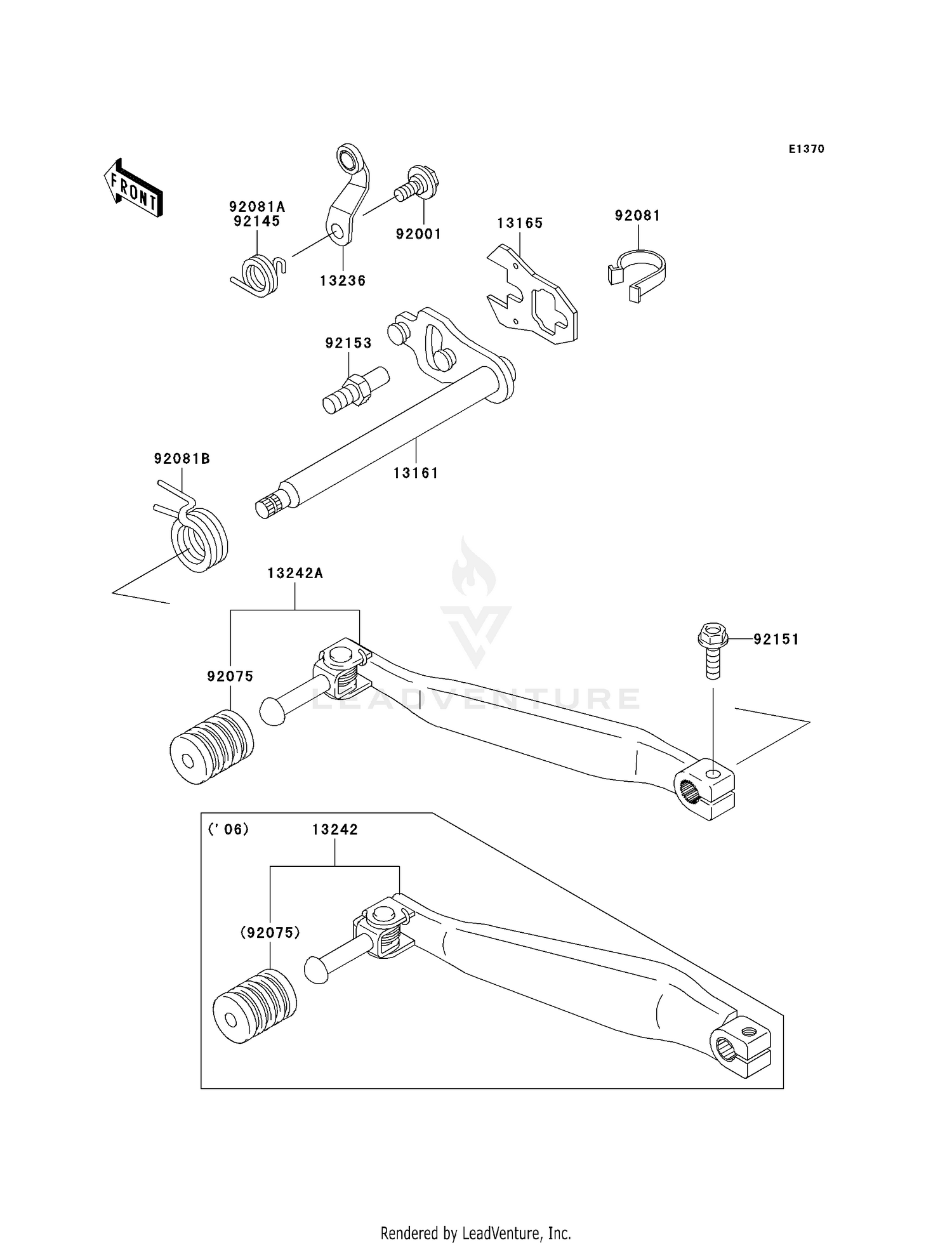

Gear Change Mechanism Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#13161
LEVER-COMP-CHANGE SHAFT
13161-1104
Superseded by 13161-0065
|
$65.55 | ||
|
Available to order. Add to View Price |
|||
|
#13165
PAWL
13165-1120
|
$13.60 | ||
|
Available to order. Add to View Price |
|||
|
#13236
LEVER-COMP
13236-1101
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13242A
LEVER-ASSY-CHANGE
13242-1327
Superseded by 13242-0181
|
$50.58 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,FLANGED,6X14
92001-1715
|
$10.28 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER,CHANGE PEDAL
92075-1944
Superseded by 92161-2383
|
$8.36 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,CHANGE LEVER
92081-1493
|
$7.02 | ||
|
Available to order. Add to View Price |
|||
|
#92081B
SPRING,CHANGE PEDAL R
92081-1750
|
$11.00 | ||
|
Available to order. Add to View Price |
|||
|
#92145
SPRING
92145-0399
|
$7.91 | ||
|
Available to order. Add to View Price |
|||
|
#92151
BOLT,6X20
92151-1450
|
$2.39 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT,8X15.5
92153-0720
|
$5.36 | ||
|
Available to order. Add to View Price |
|||
