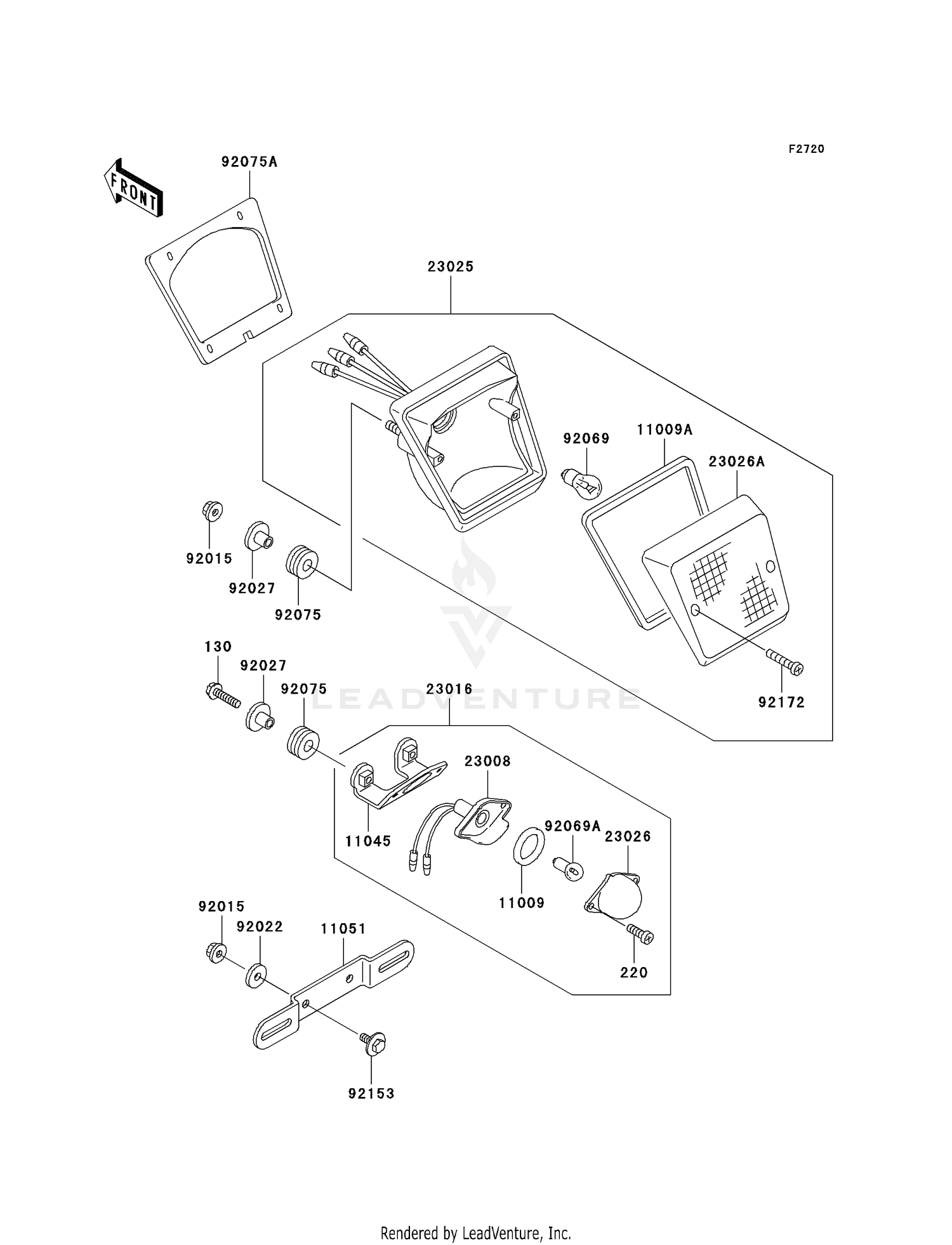

Taillight(s) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#130
BOLT-FLANGED,6X25
130H0625
Superseded by 130BA0625
|
$1.17 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROS,4X10
220B0410
Superseded by 220AA0410
|
$2.39 | ||
|
Available to order. Add to View Price |
|||
|
#11009
GASKET,LICENSE PLATE LAMP
11009-1372
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#11009A
GASKET,TAIL LAMP LENS
11009-1636
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#11045
BRACKET,LICENSE PLATE
11045-1927
|
$23.96 | ||
|
Available to order. Add to View Price |
|||
|
#11051
BRACKET,LICENSE PLATE
11051-1522
|
$20.49 | ||
|
Available to order. Add to View Price |
|||
|
#23008
SCOKET-ASSY,LICENSE P
23008-1205
|
$19.40 | ||
|
Available to order. Add to View Price |
|||
|
#23016
LAMP-ASSY,LICENSE PLA
23016-1087
|
$69.76 | ||
|
Available to order. Add to View Price |
|||
|
#23025
LAMP-TAIL,F.BLACK
23025-1315-6Z
|
$119.51 | ||
|
Available to order. Add to View Price |
|||
|
#23026
LENS,LAMP
23026-1054
|
$8.96 | ||
|
Available to order. Add to View Price |
|||
|
#23026A
LENS,TAIL LAMP
23026-1086
|
$32.32 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,6MM
92015-1367
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,6.5X20X1.6
92022-1557
Superseded by 92200-0283
|
$1.36 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR
92027-251
Superseded by 92152-0365
|
$1.31 | ||
|
Available to order. Add to View Price |
|||
|
#92069
BULB,12V 21/5W
92069-063
|
$8.98 | ||
|
Available to order. Add to View Price |
|||
|
#92069A
BULB,12V 5W
92069-1055
|
$5.02 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER,10X24X12
92075-1690
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92075A
DAMPER,TAIL LAMP
92075-1889
|
$13.94 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT,6X16
92153-0684
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#92172
SCREW,TAPPING,4X25
92172-0134
|
$2.34 | ||
|
Available to order. Add to View Price |
|||
