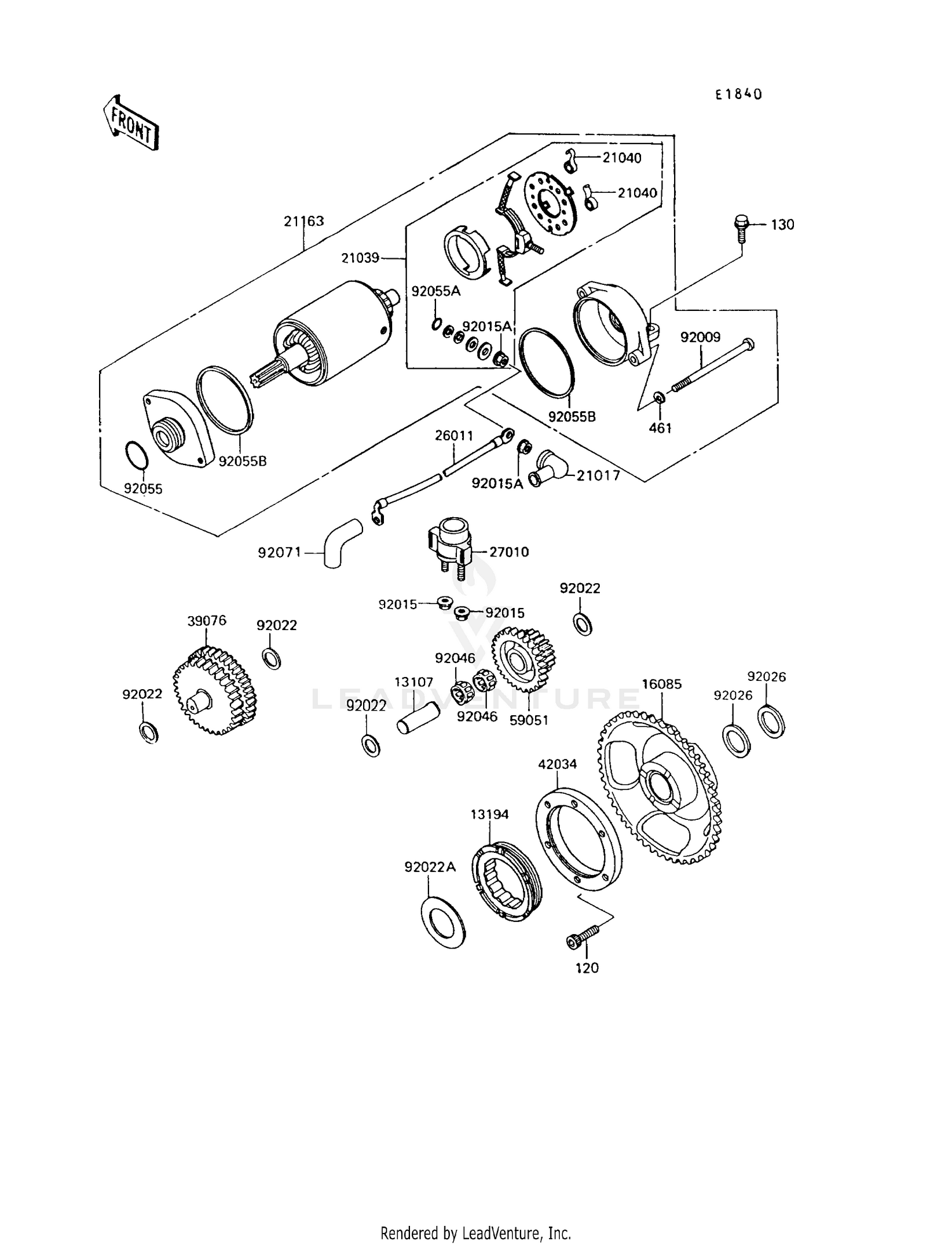

Starter Motor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#13107
SHAFT,IDLER
13107-1135
|
$17.91 | ||
|
Available to order. Add to View Price |
|||
|
#13194
CLUTCH-ONEWAY
13194-1089
|
$104.66 | ||
|
Available to order. Add to View Price |
|||
|
#16085
GEAR-COMP,ONEWAY CLUTCH
16085-1205
Superseded by 13216-0044
|
$384.25 | ||
|
Available to order. Add to View Price |
|||
|
#21017
GROMMET,STARTER TERMINAL
21017-017
|
$9.10 | ||
|
Available to order. Add to View Price |
|||
|
#21039
BRUSH,CARBON
21039-1060
|
$81.08 | ||
|
Available to order. Add to View Price |
|||
|
#21040
SPRING-BRUSH
21040-1055
|
$8.13 | ||
|
Available to order. Add to View Price |
|||
|
#21163
STARTER-ELECTRIC
21163-1108
|
$488.67 | ||
|
Available to order. Add to View Price |
|||
|
#26011
WIRE-LEAD
26011-1397
|
$57.73 | ||
|
Available to order. Add to View Price |
|||
|
#27010
SWITCH,STARTER
27010-1314
|
$44.26 | ||
|
Available to order. Add to View Price |
|||
|
#39076
LIMITER
39076-1056
|
$215.00 | ||
|
Available to order. Add to View Price |
|||
|
#42034
COUPLING
42034-1094
|
$129.97 | ||
|
Available to order. Add to View Price |
|||
|
#59051
GEAR-SPUR,20T & 37T
59051-1133
|
$110.84 | ||
|
Available to order. Add to View Price |
|||
|
#92009
BOLT,STARTER MOTOR
92009-1369
Superseded by 92150-1913
|
$9.18 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,6MM
92015-1193
Superseded by 92015-1367
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,STARTER MOTOR
92015-1476
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,10.2X20X0.5
92022-1649
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92022A
WASHER,32.2X50X1.0
92022-1650
|
$7.36 | ||
|
Available to order. Add to View Price |
|||
|
#92026
SPACER
92026-1295
Superseded by 92026-1474
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#92046
BEARING-NEEDLE,K10X14X10
92046-1134
|
$15.38 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O
92055-1276
|
$9.56 | ||
|
Available to order. Add to View Price |
|||
|
#92055A
RING-O,4.5X2.0
92055-1370
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92055B
RING-O,STARTER MOTOR
92055-1381
|
$9.56 | ||
|
Available to order. Add to View Price |
|||
|
#92071
GROMMET,TERMINAL
92071-1130
|
$10.89 | ||
|
Available to order. Add to View Price |
|||
|
#120
BOLT-SOCKET,8X18
120P0818
Superseded by 120CA0818
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#130
BOLT-FLANGED,6X25
130G0625
Superseded by 130BA0625
|
$1.17 | ||
|
Available to order. Add to View Price |
|||
|
#461
WASHER-SPRING,5MM
461F0500
Superseded by 461DA0500
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
