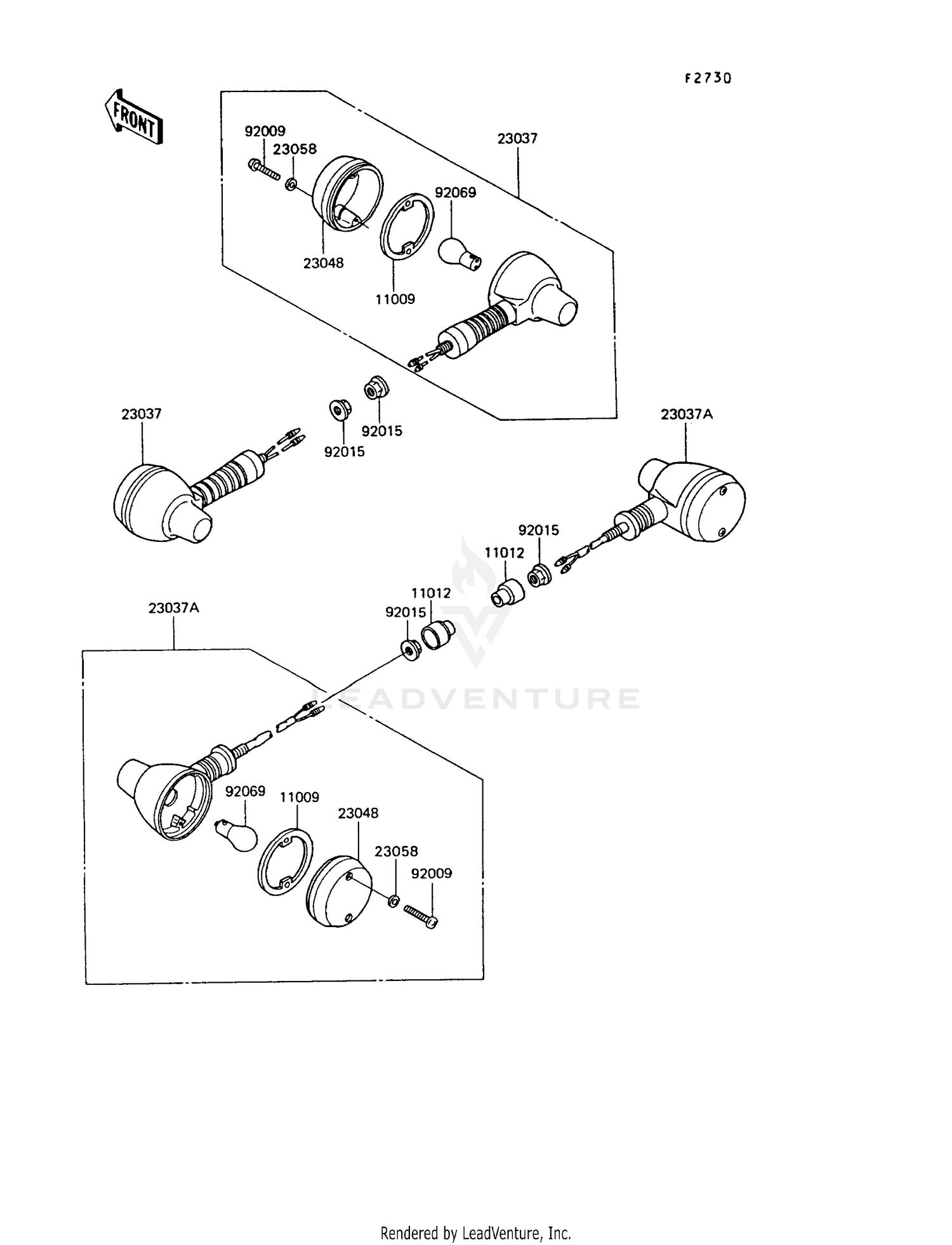

Turn Signals Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11009
GASKET,SGNL LAMP LENS
11009-1128
|
$5.36 | ||
|
Available to order. Add to View Price |
|||
|
#11012
CAP
11012-1367
|
$6.30 | ||
|
Available to order. Add to View Price |
|||
|
#23037
LAMP-ASSY-SIGNAL,FR
23037-1201
Superseded by 23037-0027
|
$71.51 | ||
|
Available to order. Add to View Price |
|||
|
#23037A
LAMP-ASSY-SIGNAL,RR
23037-1202
Superseded by 23037-0028
|
$71.62 | ||
|
Available to order. Add to View Price |
|||
|
#23048
LENS-SIGNAL LAMP
23048-1076
|
$9.41 | ||
|
Available to order. Add to View Price |
|||
|
#23058
WASHER,PLAIN,4MM
23058-002
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,TAPPING
92009-1056
|
$4.24 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,10MM
92015-1428
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92069
BULB,12V 32CP(23W)
92069-055
|
$5.02 | ||
|
Available to order. Add to View Price |
|||
