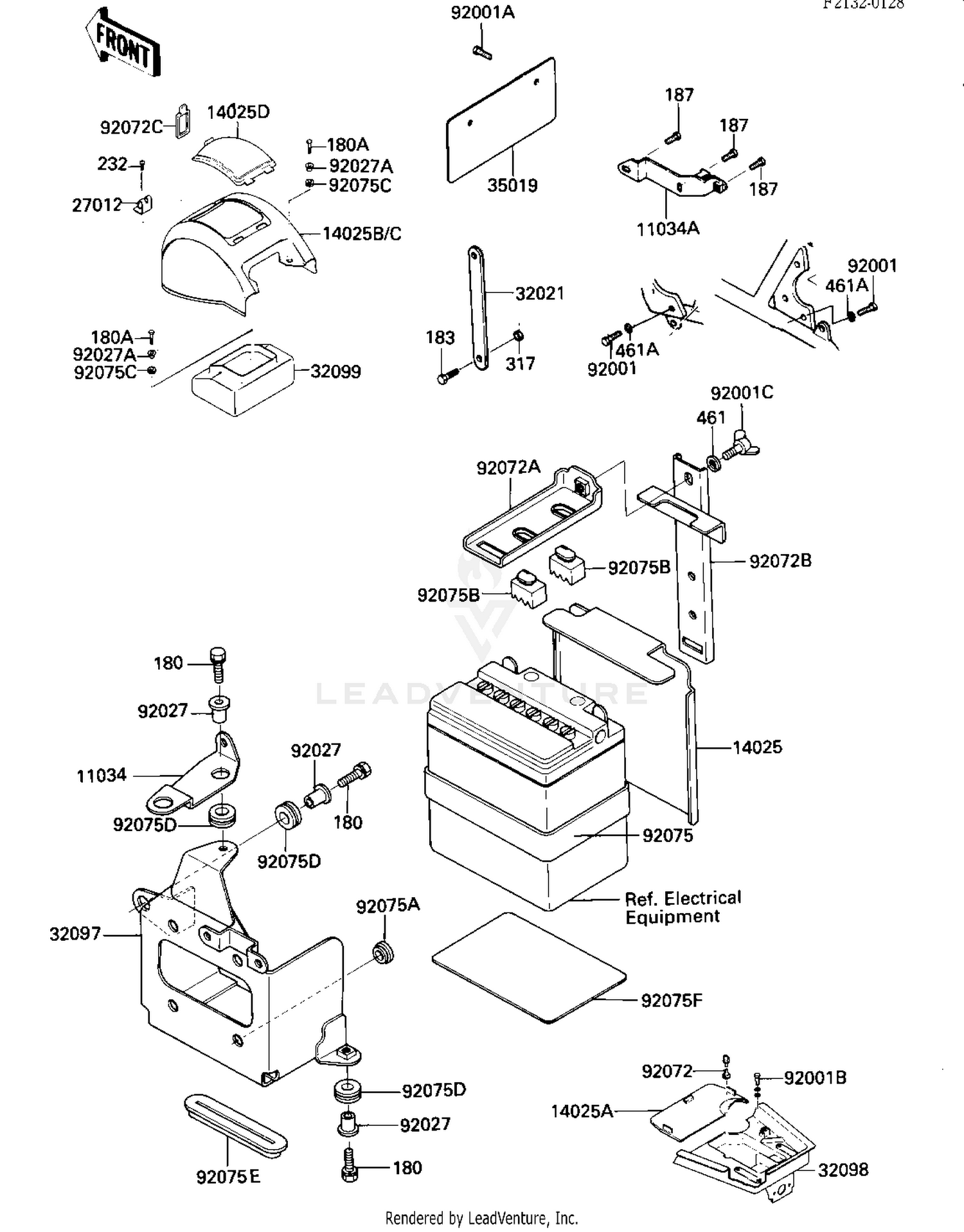

Battery Case/tool Case ('84 Klt200-c2) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11034
BRACKET,BLACK
11034-4202
|
$15.28 | ||
|
Available to order. Add to View Price |
|||
|
#11034A
BRACKET,BLACK
11034-4203
|
$15.65 | ||
|
Available to order. Add to View Price |
|||
|
#14025
COVER
14025-4007
|
$9.34 | ||
|
Available to order. Add to View Price |
|||
|
#14025A
COVER-TOOL CASE
14025-4022
|
$5.00 | ||
|
Available to order. Add to View Price |
|||
|
#14025B
COVER,FR,BLACK
14025-4024-6D
|
$28.09 | ||
|
Available to order. Add to View Price |
|||
|
#14025C
COVER,FR,RED
14025-4024-8S
|
$21.77 | ||
|
Available to order. Add to View Price |
|||
|
#14025D
COVER,STORAGE
14025-4025
|
$8.22 | ||
|
Available to order. Add to View Price |
|||
|
#27012
HOOK,BAND BLACK
27012-4011
|
$3.57 | ||
|
Available to order. Add to View Price |
|||
|
#32021
BRACKET,FRAME
32021-4030
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#32097
CASE-BATTERY
32097-1104
|
$65.02 | ||
|
Available to order. Add to View Price |
|||
|
#32098
CASE,TOOL
32098-4002
|
$9.96 | ||
|
Available to order. Add to View Price |
|||
|
#32099
CASE,TRUNK
32099-4011
|
$17.18 | ||
|
Available to order. Add to View Price |
|||
|
#35019
FLAP
35019-4006
|
$8.30 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT
92001-160
|
$3.94 | ||
|
Available to order. Add to View Price |
|||
|
#92001A
BOLT,W/SP,6X16
92001-1763
|
$4.36 | ||
|
Available to order. Add to View Price |
|||
|
#92001B
BOLT,6X25
92002-1137
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#92001C
BOLT,CLNR ELEMENT
92003-199
|
$8.85 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR,L=9.6
92027-1045
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#92027A
COLLAR,L=11.1
92027-194
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#92072
BAND,HEAD LAMP
92072-077
|
$9.89 | ||
|
Available to order. Add to View Price |
|||
|
#92072A
BAND
92072-1159
|
$3.83 | ||
|
Available to order. Add to View Price |
|||
|
#92072B
BAND,BATTERY
92072-1165
|
$12.71 | ||
|
Available to order. Add to View Price |
|||
|
#92072C
BAND
92072-4008
|
$9.16 | ||
|
Available to order. Add to View Price |
|||
|
#92075
MAT-BATTERY SIDE
32103-023
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#92075A
DAMPER,RUBBER
92075-078
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#92075B
DAMPER,SEAT
92075-1007
|
$7.70 | ||
|
Available to order. Add to View Price |
|||
|
#92075C
DAMPER
92075-112
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92075D
DAMPER
92075-277
|
$2.82 | ||
|
Available to order. Add to View Price |
|||
|
#92075E
DAMPER RUBBER
92075-280
|
$6.24 | ||
|
Available to order. Add to View Price |
|||
|
#92075F
DAMPER,BATTRY CASE
92075-4019
|
$1.58 | ||
|
Available to order. Add to View Price |
|||
|
#180
BOLT-UPSET-WS
180B0620
Superseded by 180AA0620
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#180A
BOLT-UPSET-WS,6X25
180B0625
Superseded by 180AA0625
|
$4.12 | ||
|
Available to order. Add to View Price |
|||
|
#183
BOLT-UPSET-WS-SMALL
183B0818
Superseded by 183AA0818
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
|
#187
BOLT-UPSET-WSP
187B0614
Superseded by 187AA0614
|
$0.88 | ||
|
Available to order. Add to View Price |
|||
|
#232
SCREW-PAN-WS+-
232B0614
|
$1.17 | ||
|
Available to order. Add to View Price |
|||
|
#317
NUT-HEX-SMALL,8MM
317B0800
Superseded by 317AA0800
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#461
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#461A
WASHER-SPRING,10MM
461F1000
Superseded by 461DA1000
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
