1984 Kawasaki KLT200C2 Fuel Tank ('83 Klt200-c1) OEM Parts

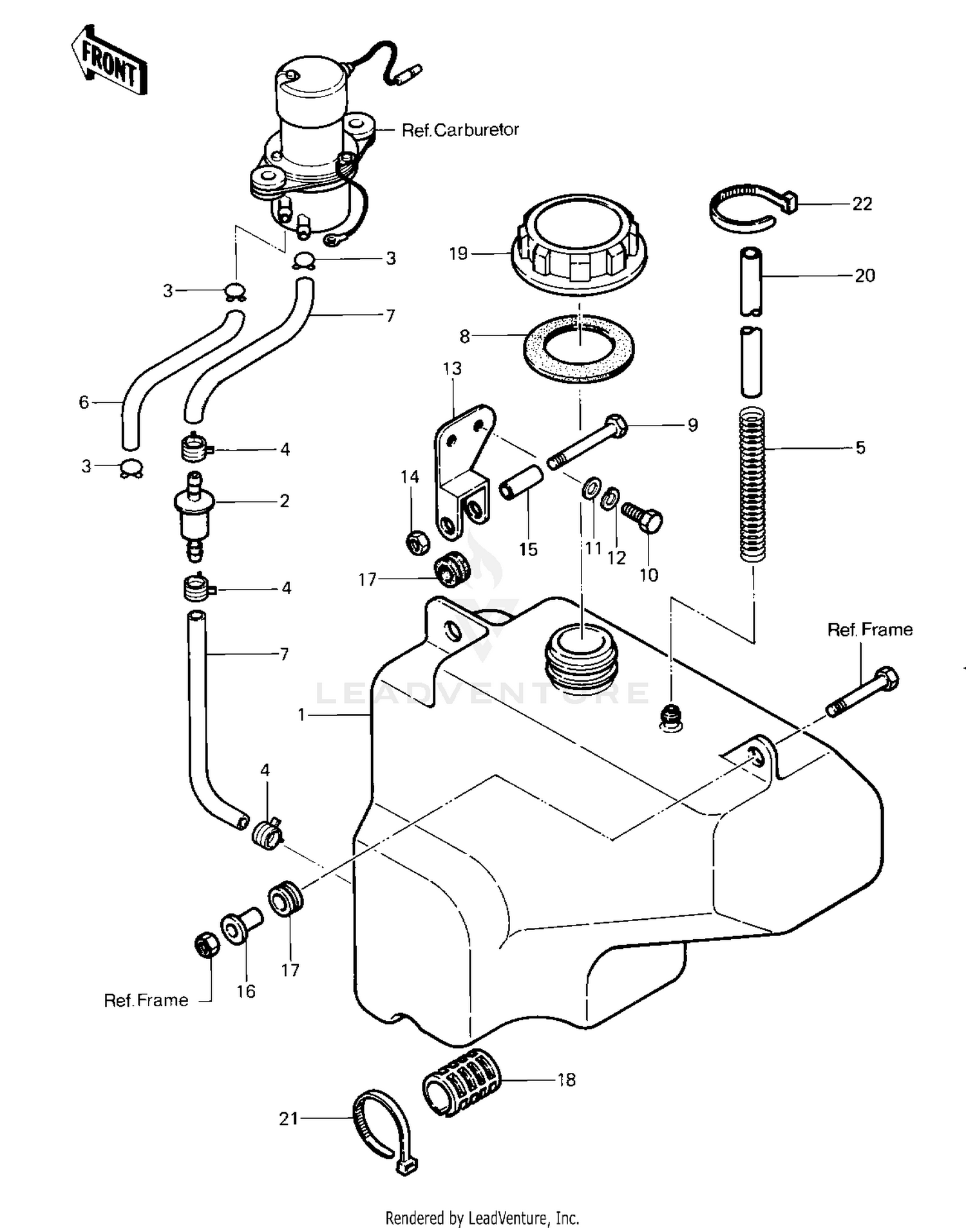

Fuel Tank ('83 Klt200-c1) Diagram

Item	MSRP	Qty
#1 TANK-FUEL,GRAY 51001-4003-8L	$79.04
Available to order. Add to View Price
#2 FILTER-FUEL 49019-4001	$6.93
Available to order. Add to View Price
#3 CLAMP,TUBE 92037-1682	$5.95
Available to order. Add to View Price
#4 CLAMP 92037-4009	$0.58
Available to order. Add to View Price
#5 SPRING 92081-4011	$2.28
Available to order. Add to View Price
#6 TUBE,5.3X10.5X450 92059-4030	$7.28
Available to order. Add to View Price
#7 TUBE,5.3X10.5X85 92059-4029	$3.52
Available to order. Add to View Price
#8 GASKET,TANK CAP 11009-3020	$13.03
Available to order. Add to View Price
#9 BOLT-SMALL-USET,8X30 115G0830 Superseded by 115BA0830	$6.59
Available to order. Add to View Price
#01 BOLT-UPSET 112G0612 Superseded by 112BA0612	$1.45
Available to order. Add to View Price
#11 WASHER-PLAIN,6MM 411B0600 Superseded by 411AA0600	$2.84
Available to order. Add to View Price
#1 WASHER-SPRING,6MM 461F0600 Superseded by 461DA0600	$0.69
Available to order. Add to View Price
#13 BRACKET-TANK 32052-4010	$10.78
Available to order. Add to View Price
#14 NUT,LOCK,8MM 92015-1124	$5.25
Available to order. Add to View Price
#15 COLLAR,8.8X12X14 92027-012	$6.02
Available to order. Add to View Price
#16 COLLAR,L=14 92027-1134	$9.92
Available to order. Add to View Price
#17 DAMPER RUBB TANK FRNT 92075-013	$5.30
Available to order. Add to View Price
#18 DAMPER,FUEL TANK 92075-084	$9.69
Available to order. Add to View Price
#19 CAP,FUEL TANK 51049-3001	$10.42
Available to order. Add to View Price
#20 TUBE 92059-4033	$1.85
Available to order. Add to View Price
#2 BAND 92072-3505	$1.55
Available to order. Add to View Price
#22 BAND 92072-4004	$2.93
Available to order. Add to View Price
