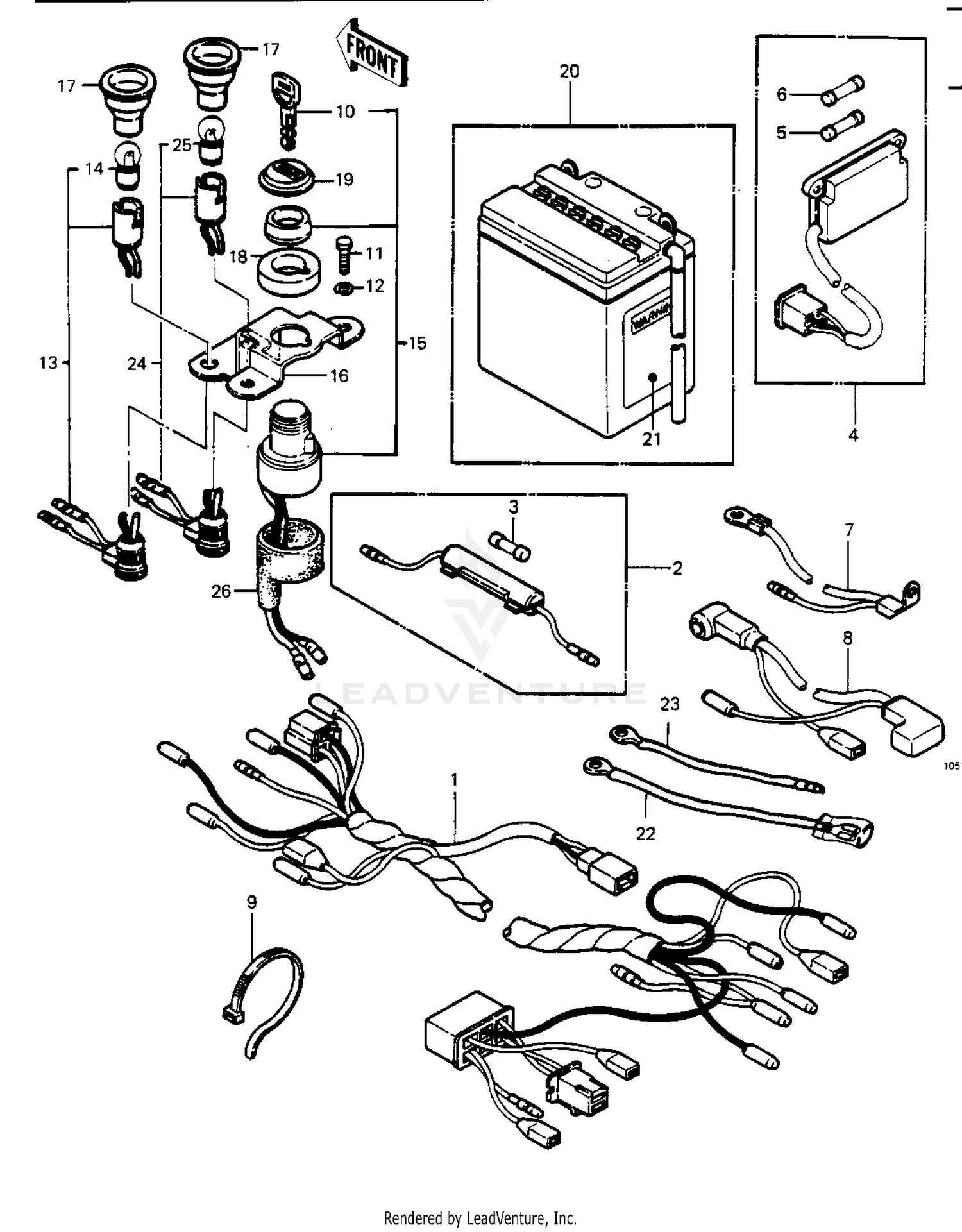

Chassis Electrical Equipment Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HARNESS,MAIN
26001-4026
|
$62.40 | ||
|
Available to order. Add to View Price |
|||
|
#2
FUSE ASSY
26004-013
|
$15.71 | ||
|
Available to order. Add to View Price |
|||
|
#3
FUSE,GLASS TUBE,6.4X25,20
26006-005
|
$4.90 | ||
|
Available to order. Add to View Price |
|||
|
#4
FUSE-ASSY,ACCESSORY
26004-1016
|
$64.39 | ||
|
Available to order. Add to View Price |
|||
|
#5
FUSE,GLASS TUBE,6.4X25,10
26006-003
|
$4.57 | ||
|
Available to order. Add to View Price |
|||
|
#6
FUSE,GLASS TUBE,6.4X25,30
26006-1005
|
$4.90 | ||
|
Available to order. Add to View Price |
|||
|
#7
WIRE-LEAD,BATTERY GRO
26011-4008
|
$13.54 | ||
|
Available to order. Add to View Price |
|||
|
#8
WIRE-LEAD,BATTERY
26011-4007
Superseded by 26011-1145
|
$36.64 | ||
|
Available to order. Add to View Price |
|||
|
#9
BAND
92072-3505
|
$1.55 | ||
|
Available to order. Add to View Price |
|||
|
#10
KEY-LOCK,BLANK
27008-1103
|
$19.59 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT-UPSET
112B0614
Superseded by 112AA0614
|
$0.48 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER-SPRING,8MM
461F0800
Superseded by 461DA0800
|
$0.40 | ||
|
Available to order. Add to View Price |
|||
|
#13
LAMP-ASSY,IGNITION
23016-1025
|
$22.98 | ||
|
Unavailable |
|||
|
#14
BULB 12V 3W
92069-018
|
$4.72 | ||
|
Available to order. Add to View Price |
|||
|
#15
SWITCH-ASSY-IGNITION
27005-4002
|
$96.47 | ||
|
Available to order. Add to View Price |
|||
|
#16
BRACKET-SWITCH,BLACK
32059-4004
|
$4.33 | ||
|
Available to order. Add to View Price |
|||
|
#17
TUBE
92059-1559
|
$6.19 | ||
|
Unavailable |
|||
|
#18
DAMPER IGNITION SWITH
92075-4016
|
$7.04 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOOT
49006-4004
|
$5.37 | ||
|
Available to order. Add to View Price |
|||
|
#20
YUA BAT YB12A-A
26012-1004
Superseded by 26012-1061
|
$91.95 | ||
|
Available to order. Add to View Price |
|||
|
#21
LABEL-WARNING,BATTERY
56040-1036
|
$3.18 | ||
|
Available to order. Add to View Price |
|||
|
#22
WIRE-LEAD
26011-4012
|
$5.40 | ||
|
Available to order. Add to View Price |
|||
|
#23
WIRE-LEAD
26011-4013
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#24
LAMP-ASSY
23016-4006
|
$14.02 | ||
|
Available to order. Add to View Price |
|||
|
#25
BULB 12V 3W
92069-018
|
$4.72 | ||
|
Unavailable |
|||
|
#26
BOOT,IGNITION SWITCH
49006-4006
|
$9.38 | ||
|
Available to order. Add to View Price |
|||
