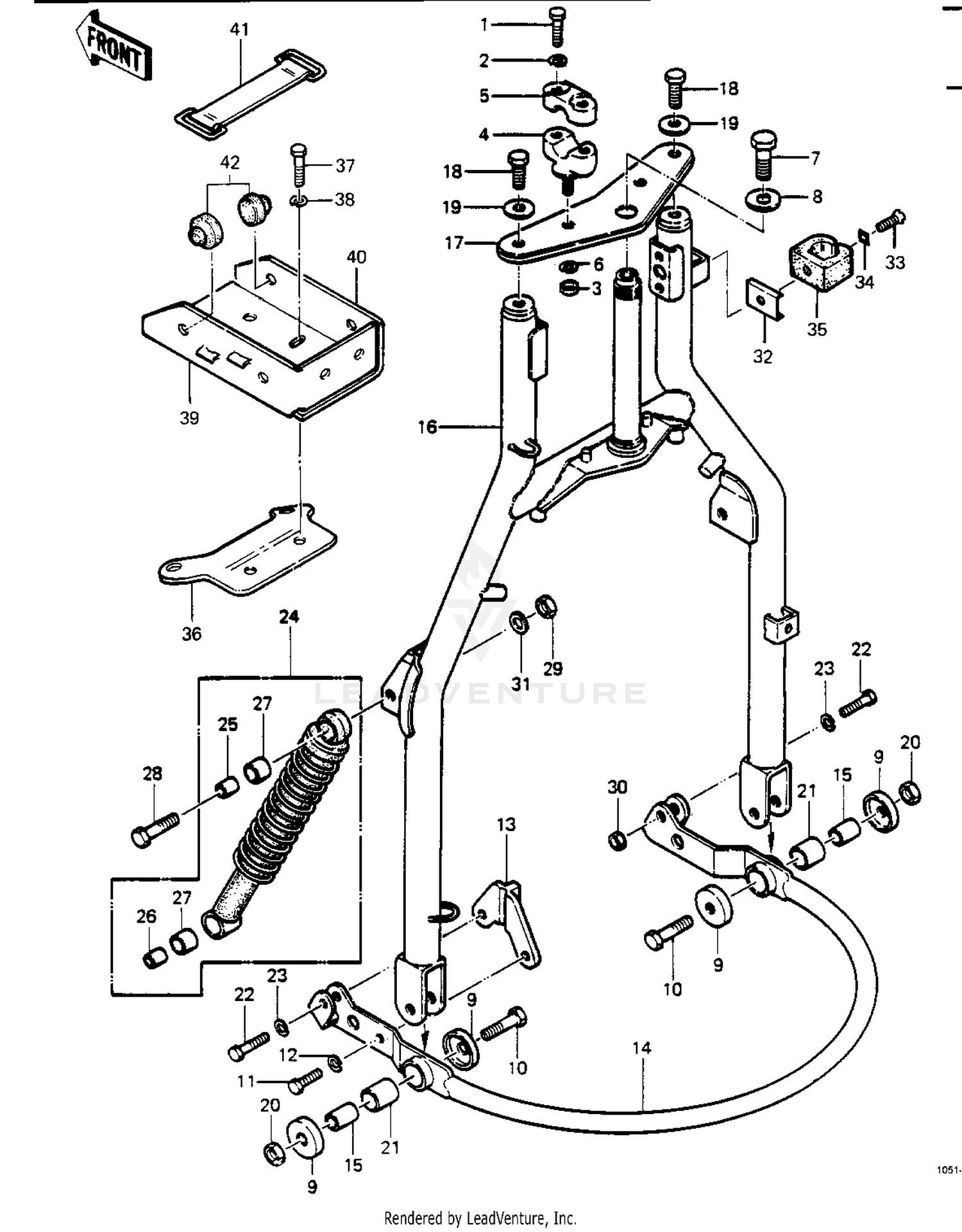

Front Fork Diagram

Item MSRP Qty
#1 BOLT-SMALL-UPSET
115G0840
Superseded by 115BA0840
 $6.24
Available to order.
Add to View Price
#2 WASHER-SPRING,8MM
461F0800
Superseded by 461DA0800
 $0.40
Available to order.
Add to View Price
#3 NUT-HEX-FINE
314B1000
Superseded by 314AA1000
 $0.67
Available to order.
Add to View Price
#4 HOLDER,HANDLEBAR,BUFF
46012-002-80
 $28.70
Available to order.
Add to View Price
#5 HOLDER-HANDLE,UPP
46012-004
Superseded by 46012-1252
 $12.96
Available to order.
Add to View Price
#6 WASHER-SPRING,10MM
461F1000
Superseded by 461DA1000
 $0.67
Available to order.
Add to View Price
#7 BOLT,STEERING STEM
44041-072
 $22.43
Available to order.
Add to View Price
#8 WASHER,STEERING STEM
44043-056
 $12.14
Available to order.
Add to View Price
#9 CAP
11012-4004
 $3.94
Available to order.
Add to View Price
#10 BOLT HEX HEAD 14X55
113B1455
 $7.12
Available to order.
Add to View Price
#11 BOLT-UPSET,10X20
112B1020
 $3.61
Available to order.
Add to View Price
#12 WASHER-SPRING,10MM
461F1000
Superseded by 461DA1000
 $0.67
Unavailable
#13 STOPPER
32085-4006
 $17.99
Available to order.
Add to View Price
#14 ARM-SUSP
39007-4003
 $84.48
Available to order.
Add to View Price
#15 SLEEVE,14X20X25.3
42036-4003
 $20.14
Available to order.
Add to View Price
#16 FORK-FRONT,BLACK
44001-4013-8G
 $211.49
Available to order.
Add to View Price
#17 HOLDER-FORK UPPER
44039-4003
 $46.61
Available to order.
Add to View Price
#18 BOLT
92001-1742
 $18.97
Available to order.
Add to View Price
#19 WASHER
92022-1381
 $9.11
Available to order.
Add to View Price
#20 NUT-LOCK,14MM
92019-011
 $10.48
Available to order.
Add to View Price
#21 BUSHING,SWING ARM
92028-4001
 $10.83
Available to order.
Add to View Price
#22 BOLT,HEX HEAD 10X40
92001-1253
 $7.38
Available to order.
Add to View Price
#23 WASHER-SPRING,10MM
461F1000
Superseded by 461DA1000
 $0.67
Unavailable
#24 SHOCKABSORBER,EBONY
45014-4010-8G
 $118.50
Available to order.
Add to View Price
#25 COLLAR
92027-4023
 $3.08
Available to order.
Add to View Price
#26 COLLAR
92027-4024
 $3.52
Available to order.
Add to View Price
#27 BUSHING, SHCK ABS RUB
92075-4030
Superseded by 45017-012
 $14.37
Available to order.
Add to View Price
#28 BOLT,12X45
92001-4018
 $6.25
Available to order.
Add to View Price
#29 NUT,LOCK,12MM
92019-009
Superseded by 92210-1373
 $7.04
Available to order.
Add to View Price
#30 NUT,LOCK,10MM
92019-021
Superseded by 92210-1184
 $5.91
Available to order.
Add to View Price
#31 WASHER-PLAIN-SMALL,8MM
410B0800
Superseded by 410AA0800
 $0.93
Available to order.
Add to View Price
#32 BRACKET
11034-4254
 $3.10
Available to order.
Add to View Price
#33 SCREW-CNTSNK HD,6X20
221B0620
Superseded by 221AA0620
 $2.33
Available to order.
Add to View Price
#34 WASHER
92022-4035
 $0.49
Available to order.
Add to View Price
#35 CLAMP
92037-4012
 $3.59
Available to order.
Add to View Price
#36 BRACKET,RADIO CARRIER
11034-4252
 $12.42
Available to order.
Add to View Price
#37 BOLT-SMALL,8X14
114C0814
 $2.45
Available to order.
Add to View Price
#38 WASHER-SPRING,8MM
461F0800
Superseded by 461DA0800
 $0.40
Unavailable
#39 CASE,LH,RADIO
32099-4015
 $9.56
Available to order.
Add to View Price
#40 CASE,RH,RADIO
32099-4016
 $9.56
Available to order.
Add to View Price
#41 BAND BATTERY
92072-006
 $12.31
Available to order.
Add to View Price
#42 DAMPER,9X24X14
92075-281
 $6.02
Available to order.
Add to View Price
