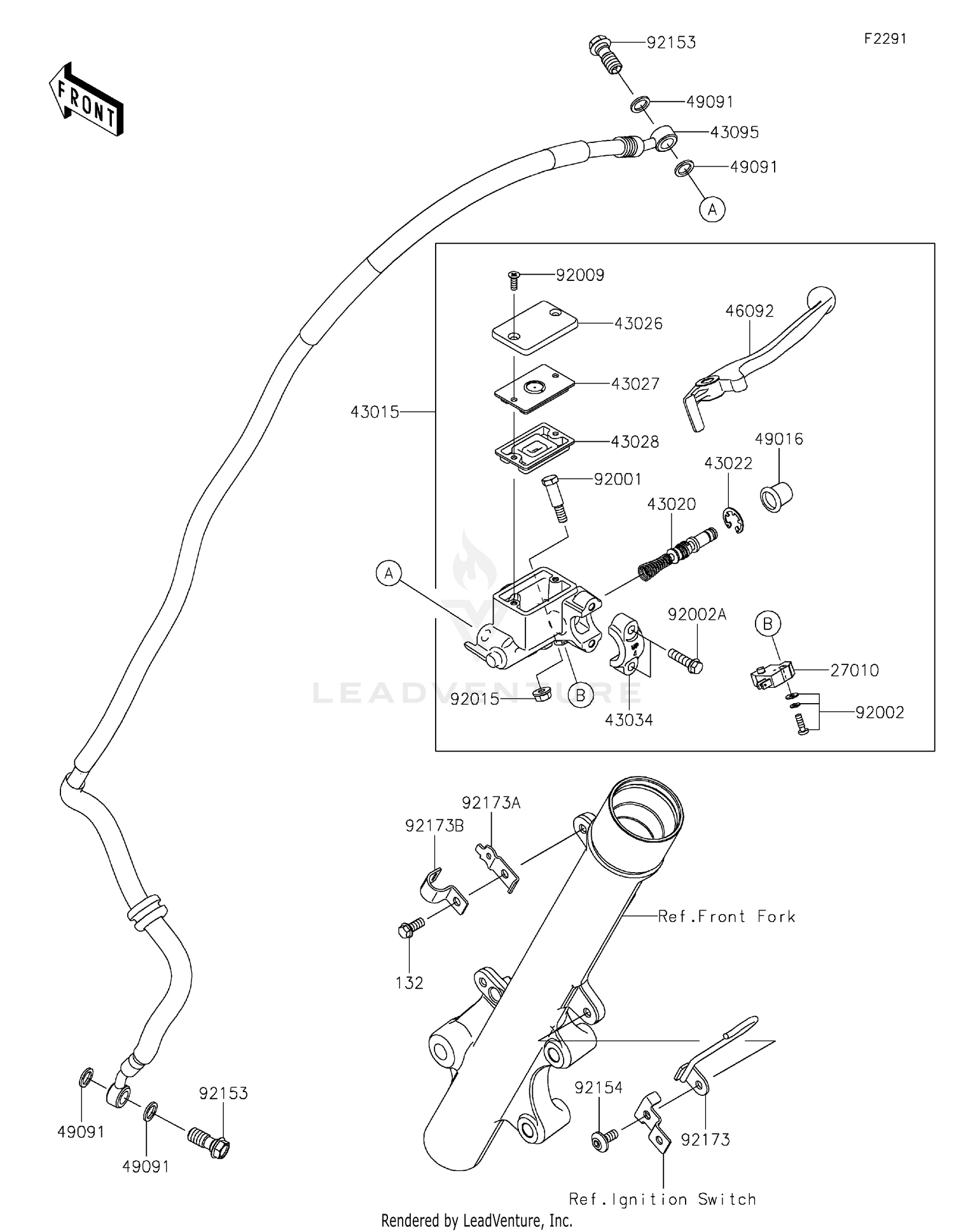

Front Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#132
BOLT-FLANGED-SMALL,6X14
132BA0614
|
$1.42 | ||
|
Available to order. Add to View Price |
|||
|
#27010
SWITCH,BRAKE
27010-0873
|
$33.70 | ||
|
Available to order. Add to View Price |
|||
|
#43015
CYLINDER-ASSY-MASTER,FR
43015-0741
|
$215.09 | ||
|
Available to order. Add to View Price |
|||
|
#43020
PISTON-COMP-BRAKE
43020-0034
|
$49.25 | ||
|
Available to order. Add to View Price |
|||
|
#43022
STOPPER-BRAKE,PISTON
43022-0004
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#43026
CAP-BRAKE
43026-1082
|
$20.13 | ||
|
Available to order. Add to View Price |
|||
|
#43027
PLATE-DIAPHRAGM
43027-1057
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#43028
DIAPHRAGM
43028-1061
|
$15.60 | ||
|
Available to order. Add to View Price |
|||
|
#43034
HOLDER-BRAKE,MASTER CYLINDER
43034-1016
|
$18.76 | ||
|
Available to order. Add to View Price |
|||
|
#43095
HOSE-BRAKE,FR M/C-FR CALIPER
43095-1735
|
$95.77 | ||
|
Available to order. Add to View Price |
|||
|
#46092
LEVER-GRIP,FRONT BRAKE
46092-0044
|
$33.75 | ||
|
Available to order. Add to View Price |
|||
|
#49016
COVER-SEAL,MASTER CYLINDER
49016-1044
|
$8.38 | ||
|
Available to order. Add to View Price |
|||
|
#49091
WASHER-SEAL,10.1X14.5X1.5
49091-0001
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,FRONT BRAKE LEVER
92001-1728
|
$13.72 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,SCREW,4X12
92002-1323
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92002A
BOLT
92002-1894
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,4MM
92009-1458
|
$3.12 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,6MM,BLACK
92015-1233
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT,OIL,L=23
92153-0029
|
$1.59 | ||
|
Available to order. Add to View Price |
|||
|
#92154
BOLT,SOCKET,6X14
92154-3763
|
$1.38 | ||
|
Available to order. Add to View Price |
|||
|
#92173
CLAMP,BRAKE HOSE,CALIPER
92173-1972
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#92173A
CLAMP,BRAKE HOSE,FORK
92173-1974
|
$1.33 | ||
|
Available to order. Add to View Price |
|||
|
#92173B
CLAMP,BRAKE HOSE,FORK
92173-1975
|
$1.33 | ||
|
Available to order. Add to View Price |
|||
