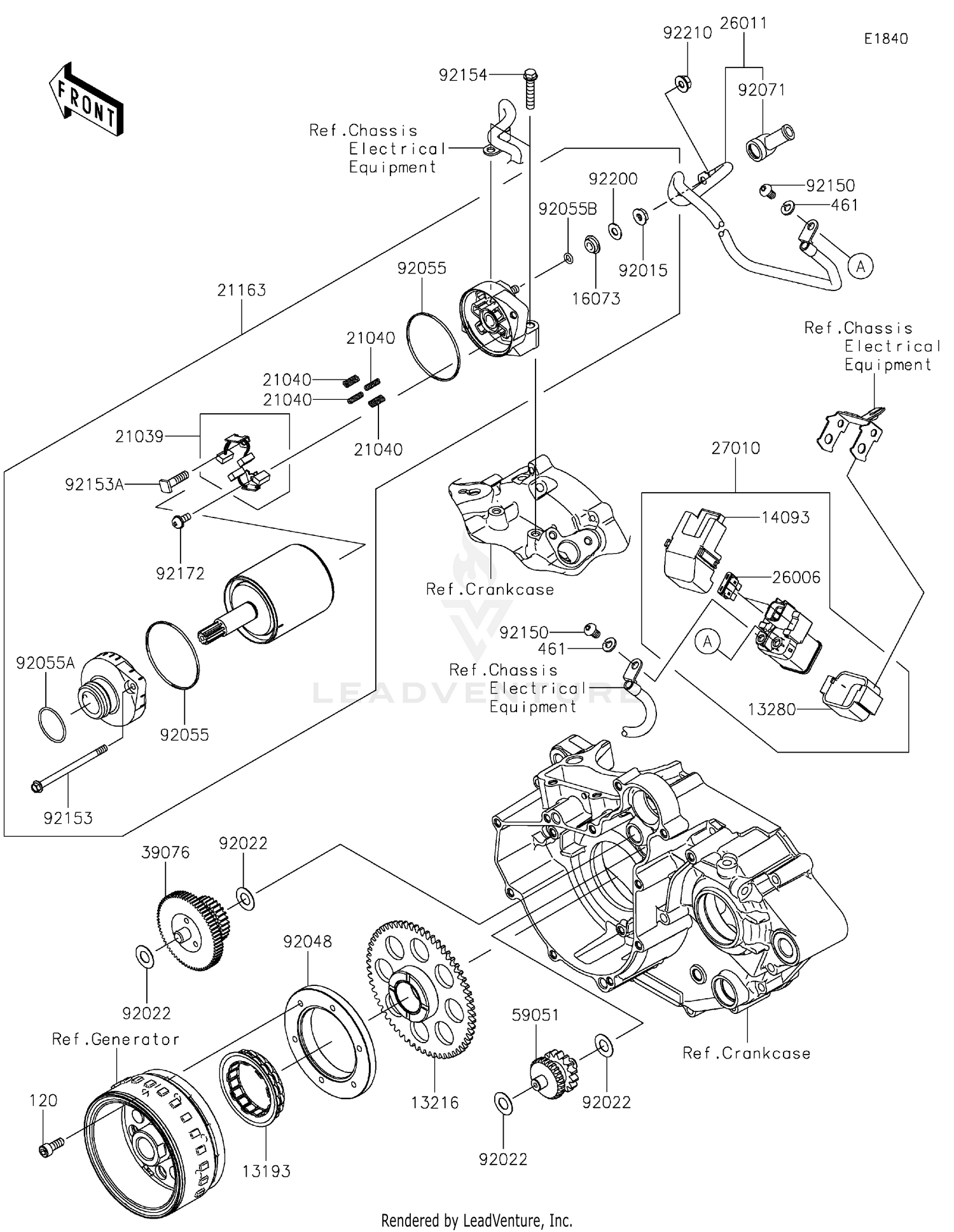

Starter Motor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#120
BOLT-SOCKET,6X16
120CA0616
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
|
#13193
CLUTCH-ASSY-ONEWAY
13193-0007
|
$114.27 | ||
|
Available to order. Add to View Price |
|||
|
#13216
GEAR-COMP,ONEWAY CLUTCH
13216-0900
|
$141.11 | ||
|
Available to order. Add to View Price |
|||
|
#13280
HOLDER
13280-0710
|
$13.97 | ||
|
Available to order. Add to View Price |
|||
|
#14093
COVER
14093-0199
|
$18.10 | ||
|
Available to order. Add to View Price |
|||
|
#16073
INSULATOR
16073-0053
|
$11.51 | ||
|
Available to order. Add to View Price |
|||
|
#21039
BRUSH,CARBON
21039-0004
|
$112.81 | ||
|
Available to order. Add to View Price |
|||
|
#21040
SPRING-BRUSH
21040-0003
|
$9.45 | ||
|
Available to order. Add to View Price |
|||
|
#21163
STARTER-ELECTRIC
21163-0783
|
$304.94 | ||
|
Available to order. Add to View Price |
|||
|
#26006
FUSE,BLADE,30A,GREEN
26006-1006
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#26011
WIRE-LEAD
26011-0890
|
$28.95 | ||
|
Available to order. Add to View Price |
|||
|
#27010
SWITCH
27010-0754
|
$129.90 | ||
|
Available to order. Add to View Price |
|||
|
#39076
LIMITER,STARTER IDLE GEAR
39076-0020
|
$175.43 | ||
|
Available to order. Add to View Price |
|||
|
#461
WASHER-SPRING,6MM
461DB0600
|
$0.64 | ||
|
Available to order. Add to View Price |
|||
|
#59051
GEAR-SPUR,IDLER
59051-0824
|
$55.45 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,STARTER MOTOR
92015-1476
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,10.2X20X0.5
92022-1649
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92048
RACE,ONEWAY CLUTCH
92048-0030
|
$52.10 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O
92055-0136
|
$7.48 | ||
|
Available to order. Add to View Price |
|||
|
#92055A
RING-O
92055-1276
|
$9.56 | ||
|
Available to order. Add to View Price |
|||
|
#92055B
RING-O,4.5X2.0
92055-1370
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92071
GROMMET
92071-0024
|
$9.85 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT,6X10
92150-1577
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT
92153-1850
|
$11.51 | ||
|
Available to order. Add to View Price |
|||
|
#92153A
BOLT
92153-1866
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#92154
BOLT,FLANGED,6X30
92154-1773
|
$1.16 | ||
|
Available to order. Add to View Price |
|||
|
#92172
SCREW
92172-0334
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER
92200-0386
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#92210
NUT,6MM
92210-0188
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
