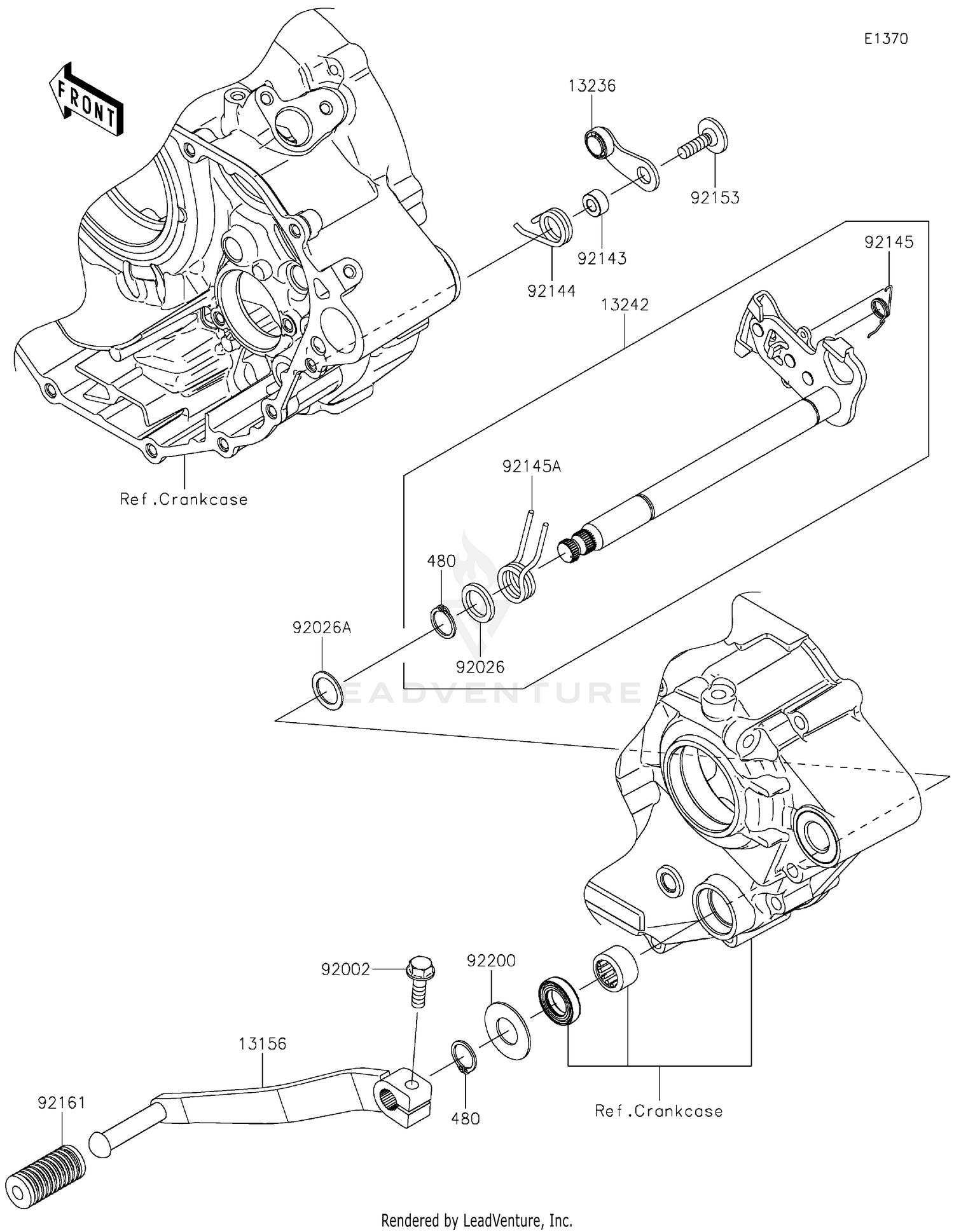

Gear Change Mechanism Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#13156
LEVER-CHANGE,PEDAL
13156-0668
Superseded by 13156-0692
|
$30.57 | ||
|
Available to order. Add to View Price |
|||
|
#13236
LEVER-COMP,POSITION
13236-0818
|
$21.71 | ||
|
Available to order. Add to View Price |
|||
|
#13242
LEVER-ASSY-CHANGE
13242-0158
|
$57.05 | ||
|
Available to order. Add to View Price |
|||
|
#480
CIRCLIP-TYPE-C,14MM
480J1400
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,6X20
92002-1237
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92026
SPACER,14X20X2.3
92026-0107
|
$5.16 | ||
|
Available to order. Add to View Price |
|||
|
#92026A
SPACER,14X20X1.0
92026-1534
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92143
COLLAR
92143-1595
|
$9.18 | ||
|
Available to order. Add to View Price |
|||
|
#92144
SPRING,GEAR POSITION
92144-1523
|
$8.48 | ||
|
Available to order. Add to View Price |
|||
|
#92145
SPRING
92145-0414
|
$8.94 | ||
|
Available to order. Add to View Price |
|||
|
#92145A
SPRING,RETURN
92145-0415
|
$11.40 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT,6X20
92153-1505
|
$7.48 | ||
|
Available to order. Add to View Price |
|||
|
#92161
DAMPER,CHANGE PEDAL
92161-2089
|
$5.47 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER
92200-0265
|
$2.54 | ||
|
Available to order. Add to View Price |
|||
