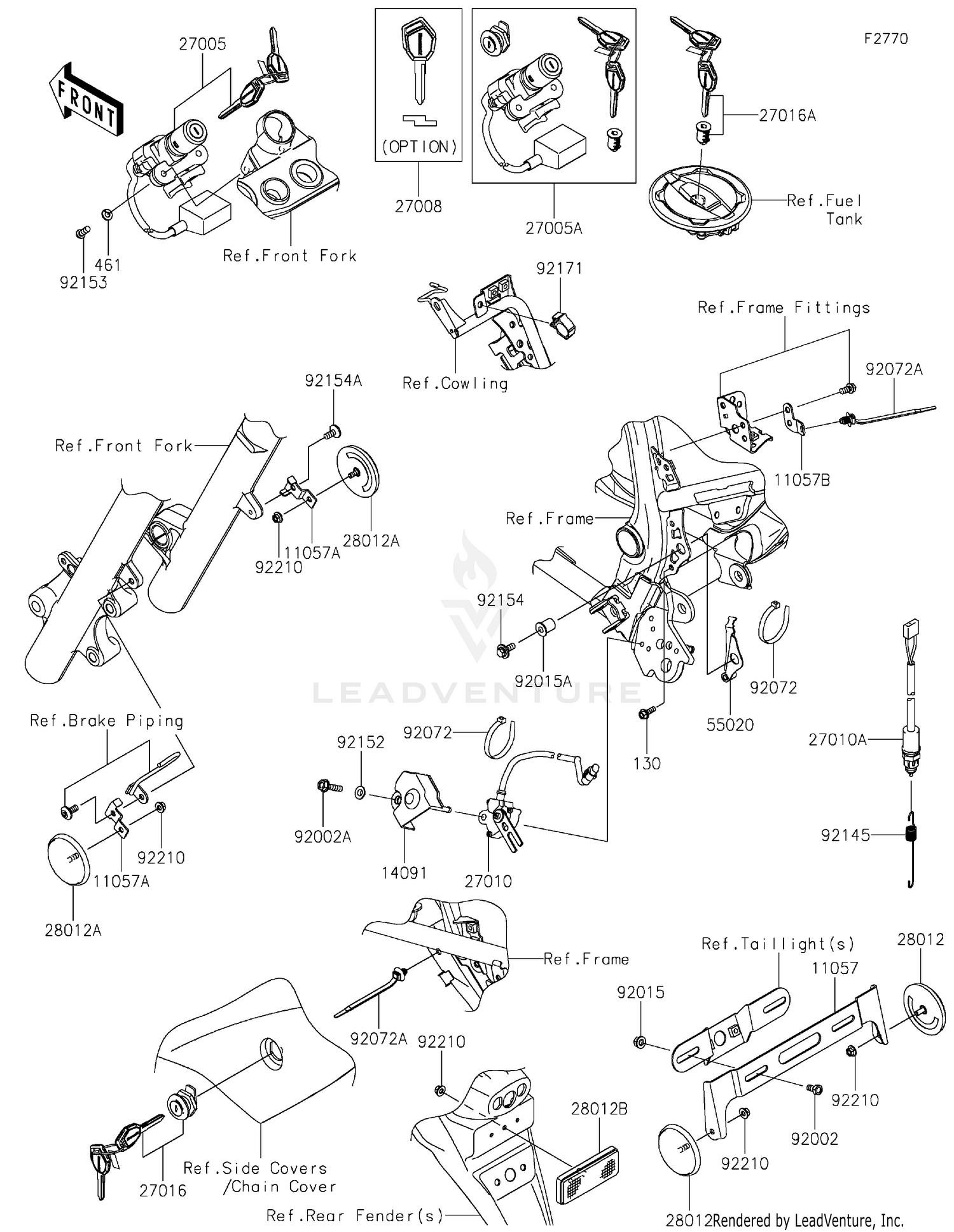

Ignition Switch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11057
BRACKET,REFLECTOR
11057-0641
|
$18.16 | ||
|
Available to order. Add to View Price |
|||
|
#11057A
BRACKET,FR
11057-2421
|
$2.26 | ||
|
Available to order. Add to View Price |
|||
|
#11057B
BRACKET
11057-4032
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#130
BOLT-FLANGED,5X14
130BA0514
|
$2.00 | ||
|
Available to order. Add to View Price |
|||
|
#14091
COVER,SIDE STAND SWITCH
14091-1553
|
$7.34 | ||
|
Available to order. Add to View Price |
|||
|
#27005
SWITCH-ASSY-IGNITION
27005-0694
|
$210.17 | ||
|
Available to order. Add to View Price |
|||
|
#27005A
SWITCH-ASSY-IGNITION
27005-5183
|
$301.46 | ||
|
Available to order. Add to View Price |
|||
|
#27008
KEY-LOCK,BLANK
27008-0650
|
$20.82 | ||
|
Available to order. Add to View Price |
|||
|
#27010
SWITCH,SIDE STAND
27010-0097
|
$112.50 | ||
|
Available to order. Add to View Price |
|||
|
#27010A
SWITCH,REAR BRAKE
27010-0106
|
$47.68 | ||
|
Available to order. Add to View Price |
|||
|
#27016
LOCK-ASSY,SIDE COVER
27016-5410
|
$77.47 | ||
|
Available to order. Add to View Price |
|||
|
#27016A
LOCK-ASSY,TANK CAP
27016-5414
|
$77.47 | ||
|
Available to order. Add to View Price |
|||
|
#28012
REFLECTOR-REFLEX
28012-0002
|
$23.28 | ||
|
Available to order. Add to View Price |
|||
|
#28012A
REFLECTOR-REFLEX
28012-0008
|
$25.58 | ||
|
Available to order. Add to View Price |
|||
|
#28012B
REFLECTOR-REFLEX
28012-1077
|
$22.42 | ||
|
Available to order. Add to View Price |
|||
|
#461
WASHER-SPRING,6MM
461DA0600
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#55020
GUARD
55020-2307
|
$8.61 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT-UPSET
92002-1132
Superseded by 112BA0612
|
$1.45 | ||
|
Available to order. Add to View Price |
|||
|
#92002A
BOLT,FLANGED,6X25
92002-1582
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,6MM
92015-1367
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT
92015-1700
|
$8.28 | ||
|
Available to order. Add to View Price |
|||
|
#92072
BAND,L=200
92072-0106
|
$5.47 | ||
|
Available to order. Add to View Price |
|||
|
#92072A
BAND,OS170-FT7(BLACK)
92072-1414
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#92145
SPRING
92145-1940
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#92152
COLLAR,6.4X8X4.3
92152-2212
|
$3.82 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT,TORX,6X16
92153-1426
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#92154
BOLT,FLANGED-SMALL,6X16
92154-1183
|
$1.44 | ||
|
Available to order. Add to View Price |
|||
|
#92154A
BOLT,SOCKET,6X14
92154-3763
|
$1.38 | ||
|
Available to order. Add to View Price |
|||
|
#92171
CLAMP,BRAKE HOSE
92171-0316
|
$3.76 | ||
|
Available to order. Add to View Price |
|||
|
#92210
NUT,FLANGED,5MM
92210-0007
|
$2.62 | ||
|
Available to order. Add to View Price |
|||
