2020 Kawasaki KLX 300R Camshaft(s)/tensioner OEM Parts

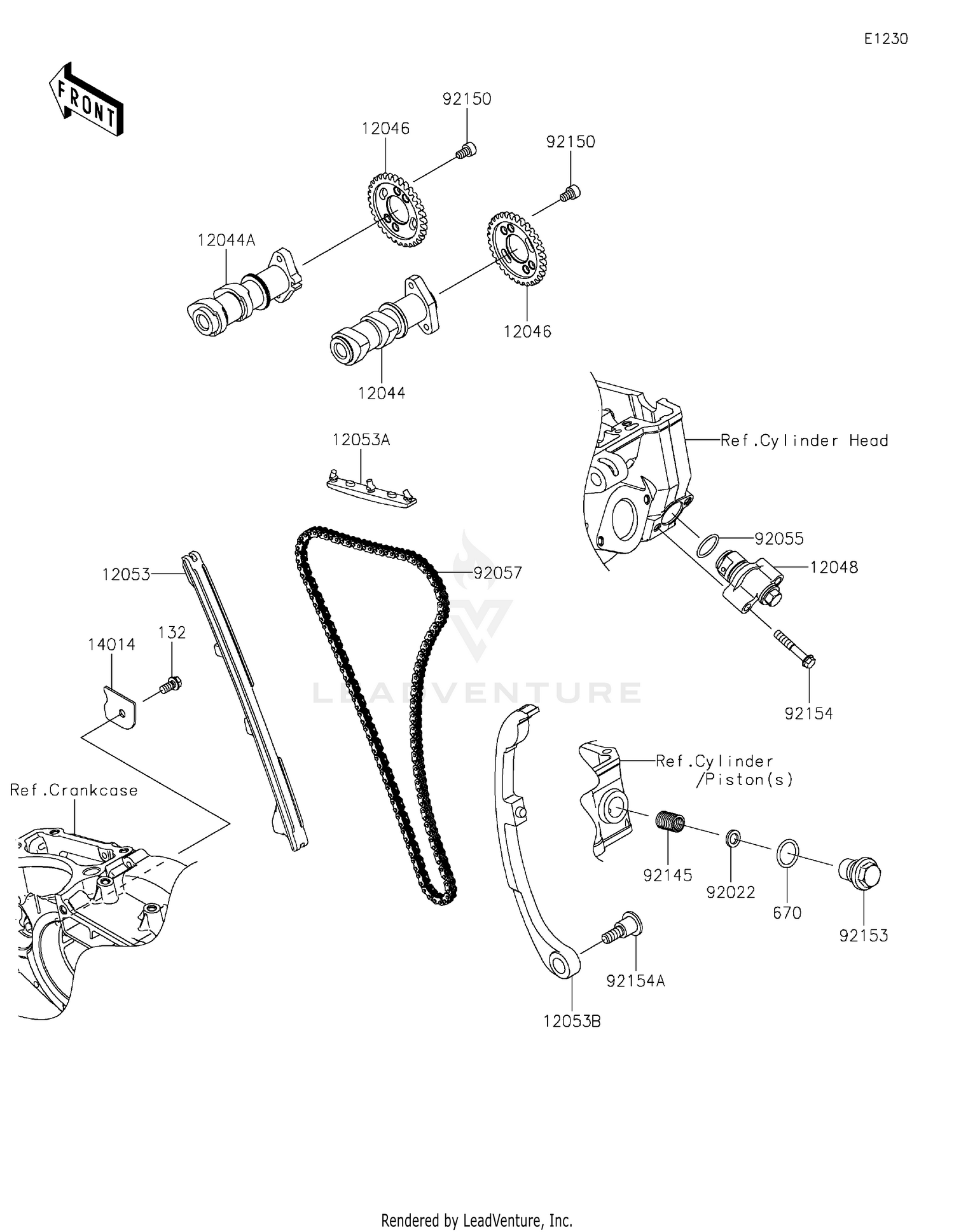

Camshaft(s)/tensioner Diagram

Item	MSRP	Qty
#12044 CAMSHAFT-VALVE,INTAKE 12044-0786 Superseded by 12044-1505	$256.05
Available to order. Add to View Price
#12044A CAMSHAFT-VALVE,EXHAUST 12044-0787 Superseded by 12044-1506	$284.24
Available to order. Add to View Price
#12046 SPROCKET,CAMSHAFT,32T 12046-0576	$39.84
Available to order. Add to View Price
#12048 TENSIONER-ASSY 12048-0054	$114.07
Available to order. Add to View Price
#12053 GUIDE-CHAIN,FR 12053-0204	$49.82
Available to order. Add to View Price
#12053A GUIDE-CHAIN,UPP 12053-1317	$10.19
Available to order. Add to View Price
#12053B GUIDE-CHAIN,RR 12053-1391	$74.87
Available to order. Add to View Price
#132 BOLT-FLANGED-SMALL,6X12 132BB0612	$2.00
Available to order. Add to View Price
#14014 PLATE-POSITION 14014-1130	$4.52
Available to order. Add to View Price
#670 O RING,18MM 670B2018	$1.39
Available to order. Add to View Price
#92022 WASHER,8.5X13.5X2 92022-1108	$4.17
Available to order. Add to View Price
#92055 RING-O,18.8X1.9 92055-086	$4.17
Available to order. Add to View Price
#92057 CHAIN,CAM,92RH2010 92057-0668	$110.37
Available to order. Add to View Price
#92145 SPRING,TENSIONER 92145-0993	$6.25
Available to order. Add to View Price
#92150 BOLT,SOCKET,6X10 92150-1650	$4.17
Available to order. Add to View Price
#92153 BOLT,TENSIONER 92153-0650	$2.54
Available to order. Add to View Price
#92154 BOLT,FLANGED,6X35 92154-0807	$2.93
Available to order. Add to View Price
#92154A BOLT 92154-1307	$23.16
Available to order. Add to View Price
