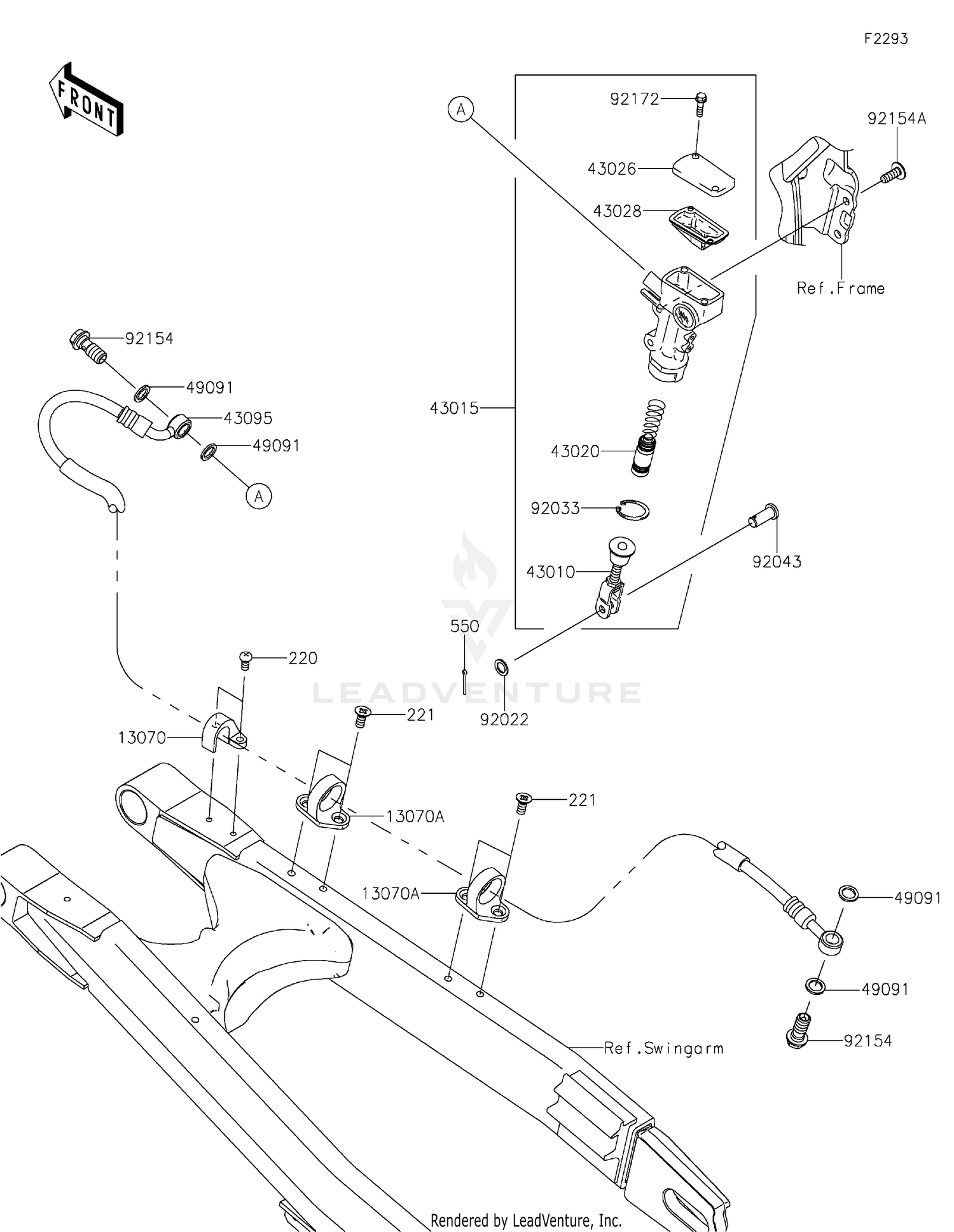

Rear Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#13070
GUIDE,BRAKE HOSE
13070-0826
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#13070A
GUIDE,HOSE
13070-1144
|
$7.75 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROS,5X10
220AA0510
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#221
SCREW-CSK-CROS,6X10
221AA0610
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#43010
ROD-ASSY-BRAKE
43010-1087
|
$52.76 | ||
|
Available to order. Add to View Price |
|||
|
#43015
CYLINDER-ASSY-MASTER
43015-0168
|
$297.09 | ||
|
Available to order. Add to View Price |
|||
|
#43020
PISTON-COMP-BRAKE
43020-1094
|
$62.75 | ||
|
Available to order. Add to View Price |
|||
|
#43026
CAP-BRAKE
43026-0023
|
$15.63 | ||
|
Available to order. Add to View Price |
|||
|
#43028
DIAPHRAGM
43028-1092
|
$20.00 | ||
|
Available to order. Add to View Price |
|||
|
#43095
HOSE-BRAKE,M/CYLINDER-CALIPER
43095-1643
|
$90.98 | ||
|
Available to order. Add to View Price |
|||
|
#49091
WASHER-SEAL,10.1X14.5X1.5
49091-0001
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#550
PIN-COTTER,2.0X15
550AA2015
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,8.5X13X1
92022-1028
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP,20.9X24.6X1.2
92033-0079
|
$7.51 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN
92043-0004
|
$10.77 | ||
|
Available to order. Add to View Price |
|||
|
#92154
BOLT,FLANGED,10X23
92154-0732
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#92154A
BOLT,SOCKET,6X16
92154-1678
|
$1.66 | ||
|
Available to order. Add to View Price |
|||
|
#92172
SCREW
92172-1064
|
$2.34 | ||
|
Available to order. Add to View Price |
|||
