2003 Kawasaki KLX 400R Front Hub OEM Parts

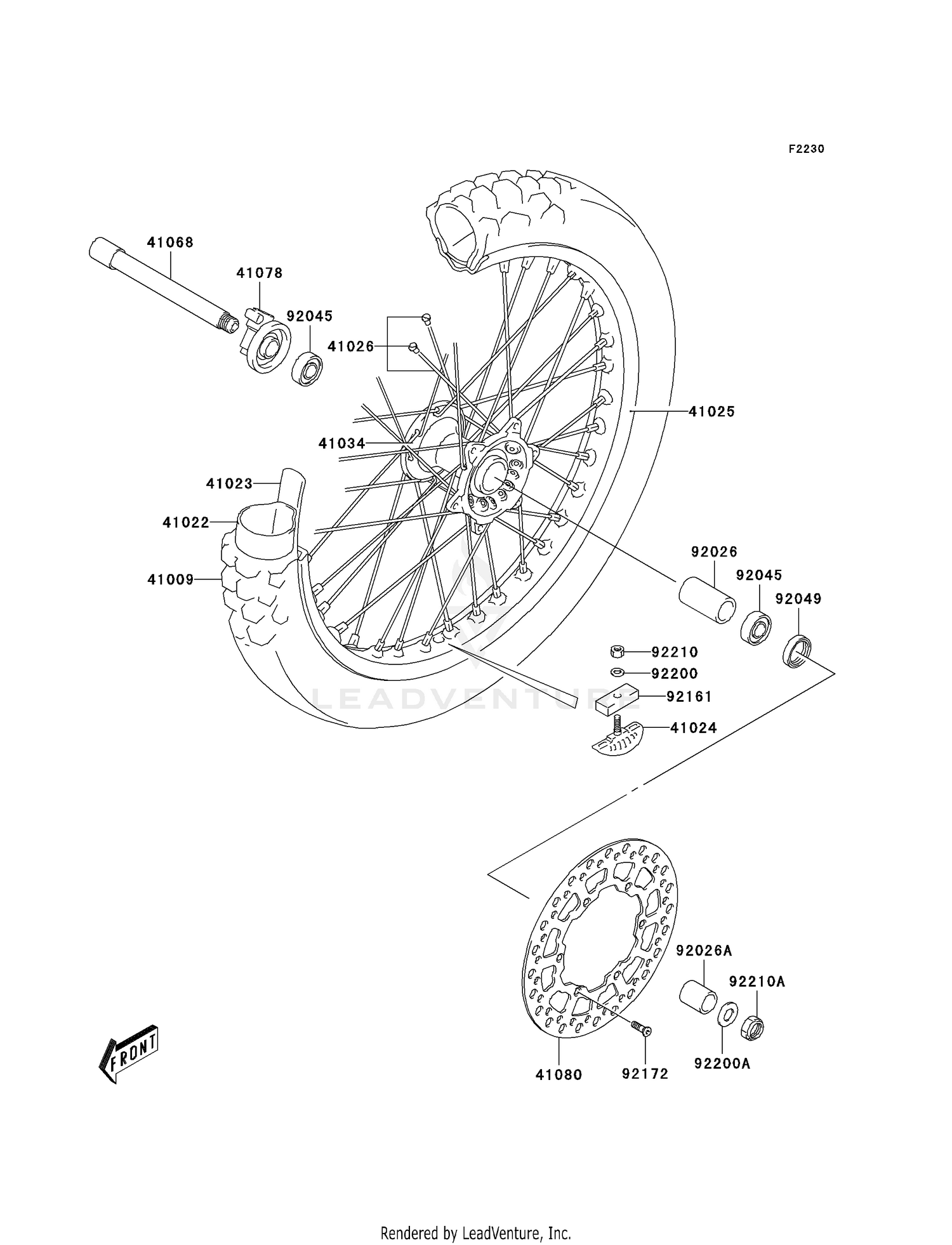

Front Hub Diagram

Item	MSRP	Qty
#41009 TIRE,80/100-21 51P 41009-S017	$146.31
Available to order. Add to View Price
#41022 TUBE-TIRE 41022-S008	$47.38
Available to order. Add to View Price
#41023 BAND-RIM 41023-S008	$5.73
Available to order. Add to View Price
#41024 STOPPER-RIM 41024-S002	$38.20
Available to order. Add to View Price
#41025 RIM,1.60X21 41025-S013	$291.85
Available to order. Add to View Price
#41026 SPOKE-ASSY 41026-S008	$127.10
Available to order. Add to View Price
#41034 DRUM-ASSY 41034-S009	$219.61
Available to order. Add to View Price
#41068 AXLE,FR 41068-S012	$81.40
Available to order. Add to View Price
#41078 CASE-ASSY-METER GEAR 41078-S002 Superseded by 41078-S003	$100.89
Available to order. Add to View Price
#41080 DISC 41080-S009	$208.90
Available to order. Add to View Price
#92026 SPACER,20.5X27.3X70 92026-S128	$23.83
Available to order. Add to View Price
#92026A SPACER 92026-S129	$20.04
Available to order. Add to View Price
#92045 BEARING-BALL 92045-S061	$48.11
Available to order. Add to View Price
#92049 SEAL-OIL,25X37X6 92049-S059	$8.37
Available to order. Add to View Price
#92161 DAMPER 92161-S144	$7.55
Available to order. Add to View Price
#92172 SCREW 92172-S210 Superseded by 92172-S289	$3.80
Available to order. Add to View Price
#92200 WASHER 92200-S028 Superseded by 92200-S288	$1.87
Available to order. Add to View Price
#92200A WASHER 92200-S199	$3.25
Available to order. Add to View Price
#92210 NUT 92210-S051 Superseded by 92210-S195	$1.87
Available to order. Add to View Price
#92210A NUT 92210-S132	$16.45
Available to order. Add to View Price
