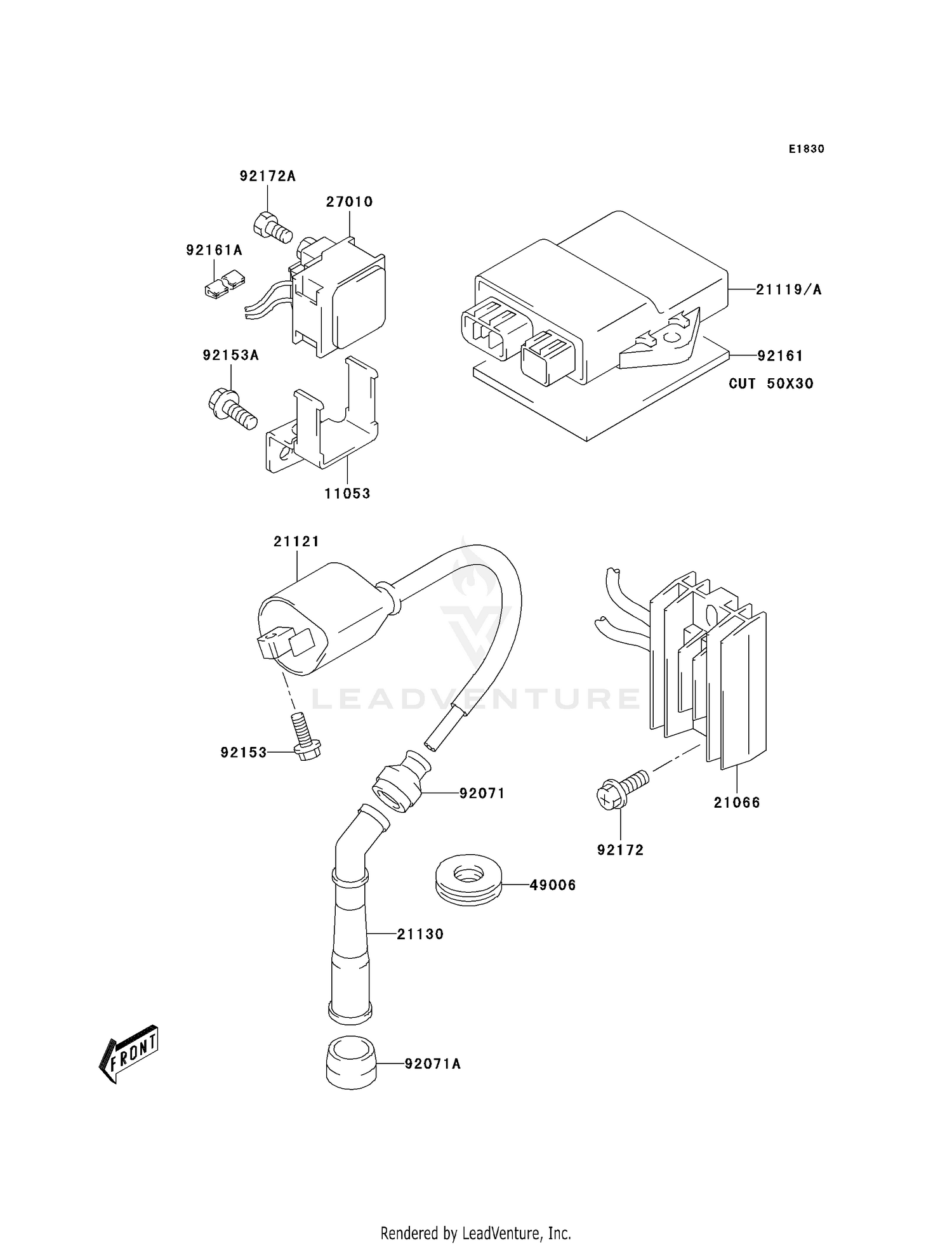

Ignition System Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11053
BRACKET,STARTING MOTO
11053-S029
|
$6.93 | ||
|
Available to order. Add to View Price |
|||
|
#21066
REGULATOR-VOLTAGE
21066-S005
|
$191.90 | ||
|
Available to order. Add to View Price |
|||
|
#21119
IGNITER
21119-S007
|
$554.00 | ||
|
Available to order. Add to View Price |
|||
|
#21121
COIL-IGNITION
21121-S006
|
$87.59 | ||
|
Available to order. Add to View Price |
|||
|
#21130
CAP-SPARK PLUG
21130-S006
|
$33.44 | ||
|
Available to order. Add to View Price |
|||
|
#27010
SWITCH,STARTING MOTOR
27010-S031
Superseded by 27010-S062
|
$87.68 | ||
|
Unavailable |
|||
|
#49006
BOOT,SPARK PLUG CAP
49006-S020
|
$5.54 | ||
|
Available to order. Add to View Price |
|||
|
#92071
GROMMET,HIGH TENSION
92071-S004
|
$5.30 | ||
|
Available to order. Add to View Price |
|||
|
#92071A
GROMMET,SPARK PLUG CA
92071-S007
Superseded by 92071-S014
|
$5.57 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT
92153-S001
Superseded by 92153-S563
|
$1.87 | ||
|
Available to order. Add to View Price |
|||
|
#92153A
BOLT
92153-S011
Superseded by 92153-S486
|
$1.87 | ||
|
Available to order. Add to View Price |
|||
|
#92161
DAMPER,170X95X3.0
92161-S014
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#92161A
DAMPER,STARTING MOTOR
92161-S116
|
$5.48 | ||
|
Available to order. Add to View Price |
|||
|
#92172
SCREW
92172-S022
Superseded by 92172-S344
|
$1.87 | ||
|
Available to order. Add to View Price |
|||
|
#92172A
SCREW
92172-S035
|
$1.58 | ||
|
Available to order. Add to View Price |
|||
