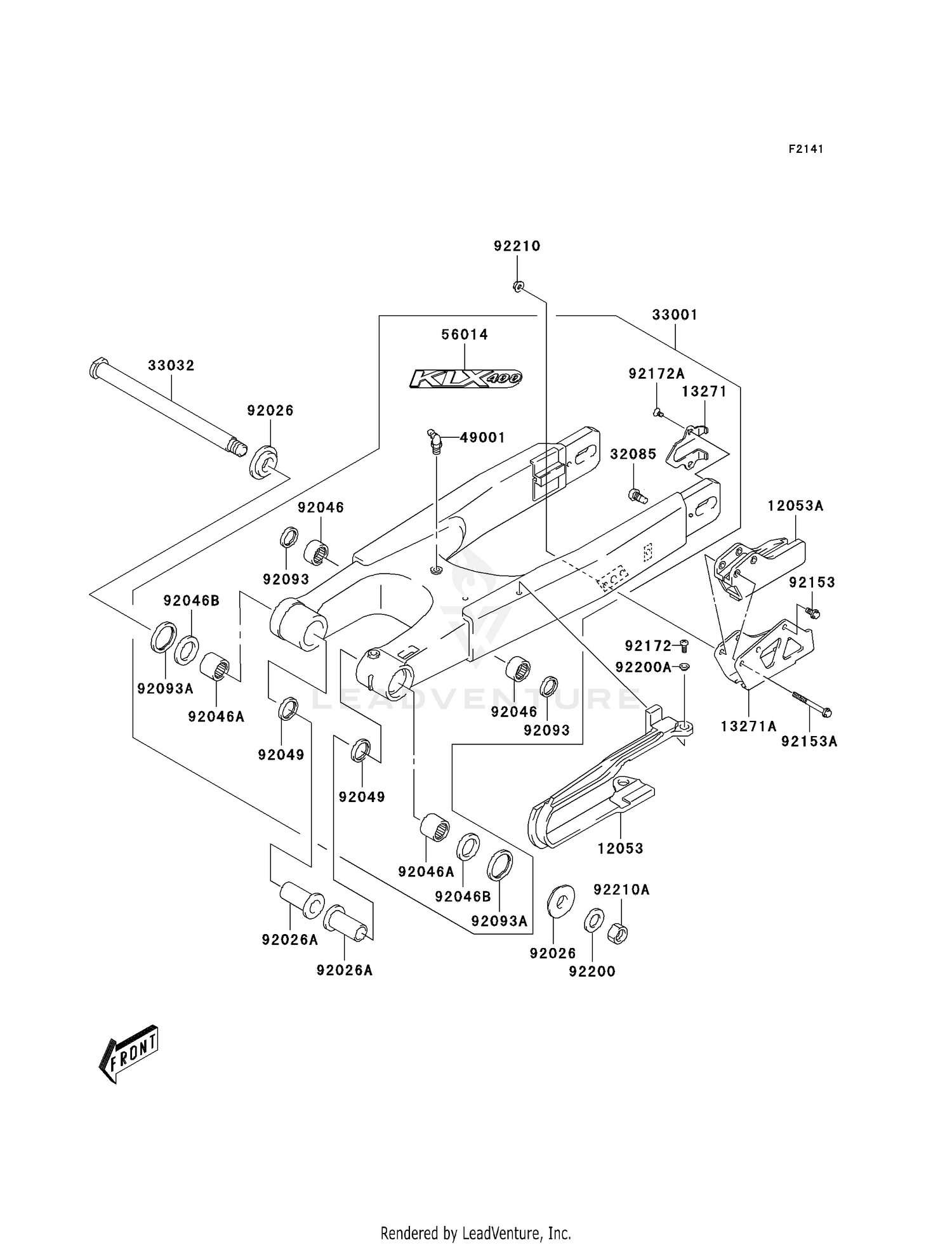

Swingarm (klx400-b1) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#12053
GUIDE-CHAIN
12053-S020
|
$66.49 | ||
|
Available to order. Add to View Price |
|||
|
#12053A
GUIDE-CHAIN
12053-S021
Superseded by 12053-S029
|
$53.34 | ||
|
Available to order. Add to View Price |
|||
|
#13271
PLATE
13271-S060
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#13271A
PLATE,CHAIN GUIDE
13271-S063
|
$48.68 | ||
|
Available to order. Add to View Price |
|||
|
#32085
STOPPER,CHAIN ADJUSTE
32085-S016
|
$10.78 | ||
|
Available to order. Add to View Price |
|||
|
#33001
ARM-COMP-SWING
33001-S009
|
$1,002.11 | ||
|
Available to order. Add to View Price |
|||
|
#33032
SHAFT-SWING ARM
33032-S005
|
$67.56 | ||
|
Available to order. Add to View Price |
|||
|
#49001
NIPPLE-GREASE
49001-S003
Superseded by 49001-S005
|
$4.86 | ||
|
Available to order. Add to View Price |
|||
|
#56014
EMBLEM,SWGARM,BLACK/G
56014-S022-566
|
$26.69 | ||
|
Available to order. Add to View Price |
|||
|
#92026
SPACER
92026-S121
|
$17.33 | ||
|
Available to order. Add to View Price |
|||
|
#92026A
SPACER
92026-S130
|
$43.45 | ||
|
Available to order. Add to View Price |
|||
|
#92046
BEARING-NEEDLE
92046-S018
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#92046A
BEARING-NEEDLE,SWING
92046-S019
|
$24.97 | ||
|
Available to order. Add to View Price |
|||
|
#92046B
BEARING-NEEDLE,22X35X
92046-S023
|
$20.57 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,SWING ARM
92049-S053
Superseded by 92049-S075
|
$5.16 | ||
|
Available to order. Add to View Price |
|||
|
#92093
SEAL
92093-S041
|
$6.69 | ||
|
Available to order. Add to View Price |
|||
|
#92093A
SEAL,29.2X37X4
92093-S045
|
$7.02 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT
92153-S144
Superseded by 92153-S578
|
$1.87 | ||
|
Available to order. Add to View Price |
|||
|
#92153A
BOLT
92153-S335
Superseded by 92153-S581
|
$2.33 | ||
|
Available to order. Add to View Price |
|||
|
#92172
SCREW
92172-S110
Superseded by 92172-S318
|
$1.87 | ||
|
Available to order. Add to View Price |
|||
|
#92172A
SCREW,5X8
92172-S209
|
$2.57 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER
92200-S030
|
$1.97 | ||
|
Available to order. Add to View Price |
|||
|
#92200A
WASHER
92200-S200
|
$4.33 | ||
|
Available to order. Add to View Price |
|||
|
#92210
NUT
92210-S054
Superseded by 92210-S184
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
|
#92210A
NUT
92210-S133
|
$13.66 | ||
|
Available to order. Add to View Price |
|||
