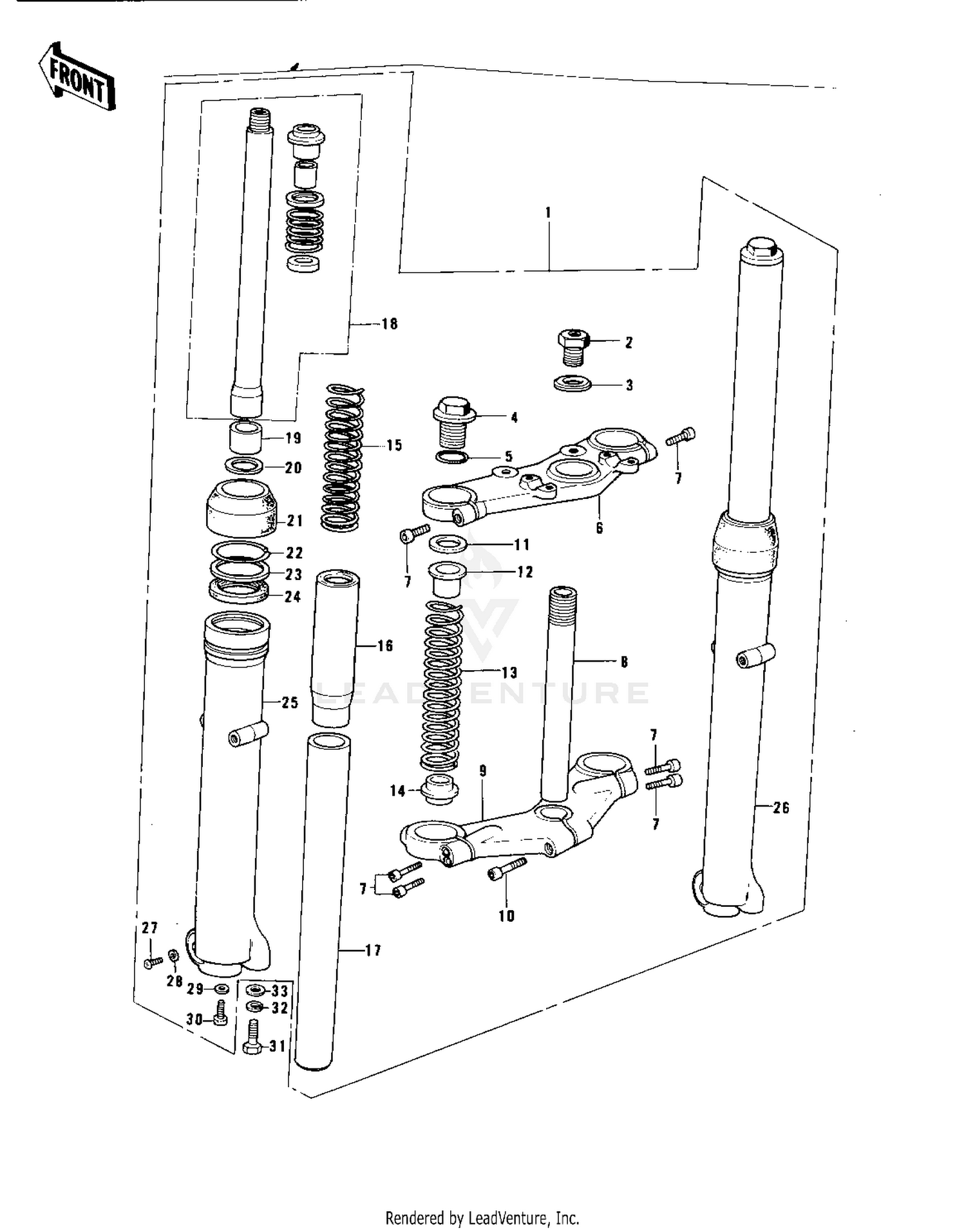

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FORK-FRONT
44001-157
|
$1,046.75 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT,FORK TOP
44041-065
|
$26.35 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER
44043-052
|
$7.78 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT,FORK TOP
44041-080
|
$24.84 | ||
|
Available to order. Add to View Price |
|||
|
#5
'O' RING FORK TOP
44046-015
|
$9.07 | ||
|
Available to order. Add to View Price |
|||
|
#6
HEAD,STEERING STEM
44039-067
|
$133.67 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
44041-061
|
$5.65 | ||
|
Available to order. Add to View Price |
|||
|
#8
SHAFT,STEERING STEM
44052-010
|
$114.79 | ||
|
Available to order. Add to View Price |
|||
|
#9
STEM,STEERING
44038-009
|
$240.80 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT-STEERING STEM
44041-043
|
$4.03 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPACER,FORK SPRING
44028-035
|
$9.34 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING,FORK INNER UPP
44026-065
|
$37.38 | ||
|
Available to order. Add to View Price |
|||
|
#14
GUIDE,FORK SPRING
44028-037
|
$5.56 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPRING,FORK INNER LOW
44026-064
|
$28.85 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPACER,FORK SPRING
44028-036
|
$9.53 | ||
|
Available to order. Add to View Price |
|||
|
#17
TUBE,FORK INNER
44013-050
|
$173.55 | ||
|
Available to order. Add to View Price |
|||
|
#18
CYLINDER-FORK
44022-025
|
$99.87 | ||
|
Available to order. Add to View Price |
|||
|
#19
PISTON,FORK
44018-009
|
$25.20 | ||
|
Available to order. Add to View Price |
|||
|
#20
CIRCLIP,FORK PISTON
44044-019
|
$7.76 | ||
|
Available to order. Add to View Price |
|||
|
#21
DUST SHIELD,FORK
44010-031
|
$14.44 | ||
|
Available to order. Add to View Price |
|||
|
#22
CIRCLIP OIL SEAL FIT
44044-005
|
$8.96 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER OIL SEAL FIT
44043-023
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#24
OIL SEAL
44009-026
|
$58.14 | ||
|
Available to order. Add to View Price |
|||
|
#25
TUBE,LH,FORK OUTER
44005-059
|
$159.27 | ||
|
Available to order. Add to View Price |
|||
|
#26
TUBE,RH,FORK OUTER
44006-057
|
$176.56 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW
44041-062
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#28
GASKET
44045-045
|
$2.11 | ||
|
Available to order. Add to View Price |
|||
|
#29
GASKET,FORK CYLINDER
44045-057
|
$4.71 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT,SOCKET,FORK CYLINDER
44041-040
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT,12X32
113N1232A
|
$4.33 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER-SPRING,12MM
461F1200
Superseded by 461DA1200
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
|
#33
WASHER-PLAIN-SMALL,12MM
410B1200
Superseded by 410AA1200
|
$0.70 | ||
|
Available to order. Add to View Price |
|||
