1976 Kawasaki KT250 Meter/headlight/taillight OEM Parts

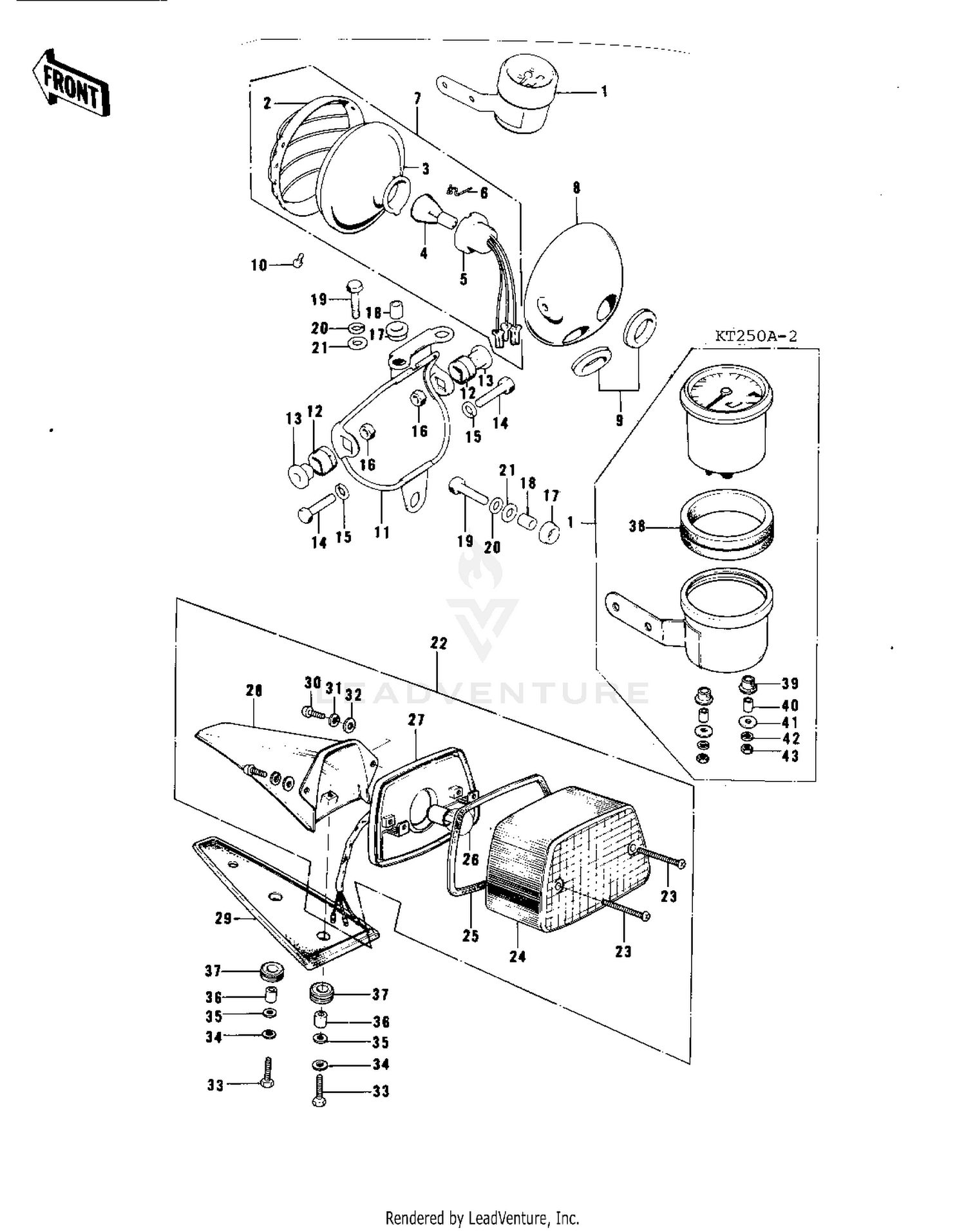

Meter/headlight/taillight Diagram

Item	MSRP	Qty
#1 SPEEDOMETER ASSY,MPH 25001-085	$518.35
Available to order. Add to View Price
#2 RIM,HEAD LIGHT 23006-047	$30.12
Available to order. Add to View Price
#3 LENS,HEAD LIGHT 23007-063	$30.93
Available to order. Add to View Price
#4 BULB,6V 35/35W 92069-078	$17.72
Available to order. Add to View Price
#5 SOCKET,HEAD LIGHT 23008-039	$34.50
Available to order. Add to View Price
#6 CLAMP,HEAD LAMP LENS 23009-015	$5.27
Available to order. Add to View Price
#7 LAMP UNIT,HEAD 23004-060	$95.26
Available to order. Add to View Price
#8 BODY,HEAD LIGHT,WHITE 23005-021-3G	$59.86
Available to order. Add to View Price
#9 GROMMET 23023-011	$6.45
Available to order. Add to View Price
#10 SCREW-PAN-CROS,5X12 23019-025 Superseded by 220AA0512	$0.46
Available to order. Add to View Price
#11 BRACKET,HEAD LIGHT 23064-020-3G	$55.62
Available to order. Add to View Price
#12 DAMPER RUBBER 23066-017	$5.41
Available to order. Add to View Price
#13 COLLAR 23052-008	$15.43
Available to order. Add to View Price
#14 BOLT,HEX HEAD,10X30 92007-041	$11.73
Available to order. Add to View Price
#15 WASHER-SPRING,10MM 461F1000 Superseded by 461DA1000	$0.67
Available to order. Add to View Price
#16 NUT 10MM 92016-027	$4.03
Available to order. Add to View Price
#17 DAMPER 92075-209	$4.54
Available to order. Add to View Price
#18 COLLAR,6.8X10X10.5 92027-120	$4.84
Available to order. Add to View Price
#19 BOLT-UPSET 112G0630 Superseded by 112BA0630	$1.36
Available to order. Add to View Price
#20 WASHER-SPRING,6MM 461F0600 Superseded by 461DA0600	$0.69
Available to order. Add to View Price
#21 WASHER,6.5X22X1.6 92022-237	$3.80
Available to order. Add to View Price
#22 LAMP ASSY,TAIL,WHITE 23024-084-3G	$169.11
Available to order. Add to View Price
#22 LAMP ASSY,TAIL,WHITE 23024-084-3G	$169.11
Unavailable
#23 SCREW-PAN-CROS 220E0325	$3.05
Available to order. Add to View Price
#23 SCREW-PAN-CROSS 220B0330 Superseded by 220AA0330	$1.68
Available to order. Add to View Price
#24 LENS,TAIL LAMP 23026-040	$45.14
Available to order. Add to View Price
#24 LENS,TAIL LAMP 23026-040	$45.14
Unavailable
#25 GASKET,TAIL LIGHT 23028-020	$9.98
Available to order. Add to View Price
#26 BULB,6V 17/5.3W 92069-028	$9.29
Available to order. Add to View Price
#27 CASE,TAIL LAMP 23027-044	$80.30
Available to order. Add to View Price
#27 CASE,TAIL LAMP 23027-044	$80.30
Unavailable
#28 BKT,LICENSE PLT,WHITE 23036-042-3G	$74.68
Available to order. Add to View Price
#29 DAMPER RUBBER 23066-018	$7.14
Available to order. Add to View Price
#30 SCREW-PAN-CROS,5X10 220B0510 Superseded by 220AA0510	$0.69
Available to order. Add to View Price
#31 WASHER-SPRING,5MM 461F0500 Superseded by 461DA0500	$0.69
Available to order. Add to View Price
#32 WASHER-PLAIN-SMALL 411B0500 Superseded by 410AA0500	$0.46
Available to order. Add to View Price
#33 BOLT-UPSET 112G0620 Superseded by 112BA0620	$2.22
Available to order. Add to View Price
#33 BOLT-UPSET 112G0620 Superseded by 112BA0620	$2.22
Unavailable
#34 WASHER-SPRING,6MM 461F0600 Superseded by 461DA0600	$0.69
Unavailable
#35 WASHER,6.5X20X1.6 92022-125 Superseded by 92200-0283	$1.36
Available to order. Add to View Price
#36 COLLAR,6.8X10X8.5 92027-129	$4.84
Available to order. Add to View Price
#3 DAMPER RUBBER 92075-263	$8.10
Available to order. Add to View Price
#38 SHOCK DAMPER,METER 25019-022	$6.42
Available to order. Add to View Price
#39 DAMPER RUBBER,MET FIT 25019-023	$4.16
Available to order. Add to View Price
#40 COLLAR,METER FITTING 25021-005	$1.80
Available to order. Add to View Price
#41 WASHER,5.2X16X1.2 92022-263	$1.63
Available to order. Add to View Price
#42 WASHER SPRING 4MM 461F0400	$0.46
Available to order. Add to View Price
#43 NUT-HEX,4MM 311B0400 Superseded by 311AA0400	$0.52
Available to order. Add to View Price
