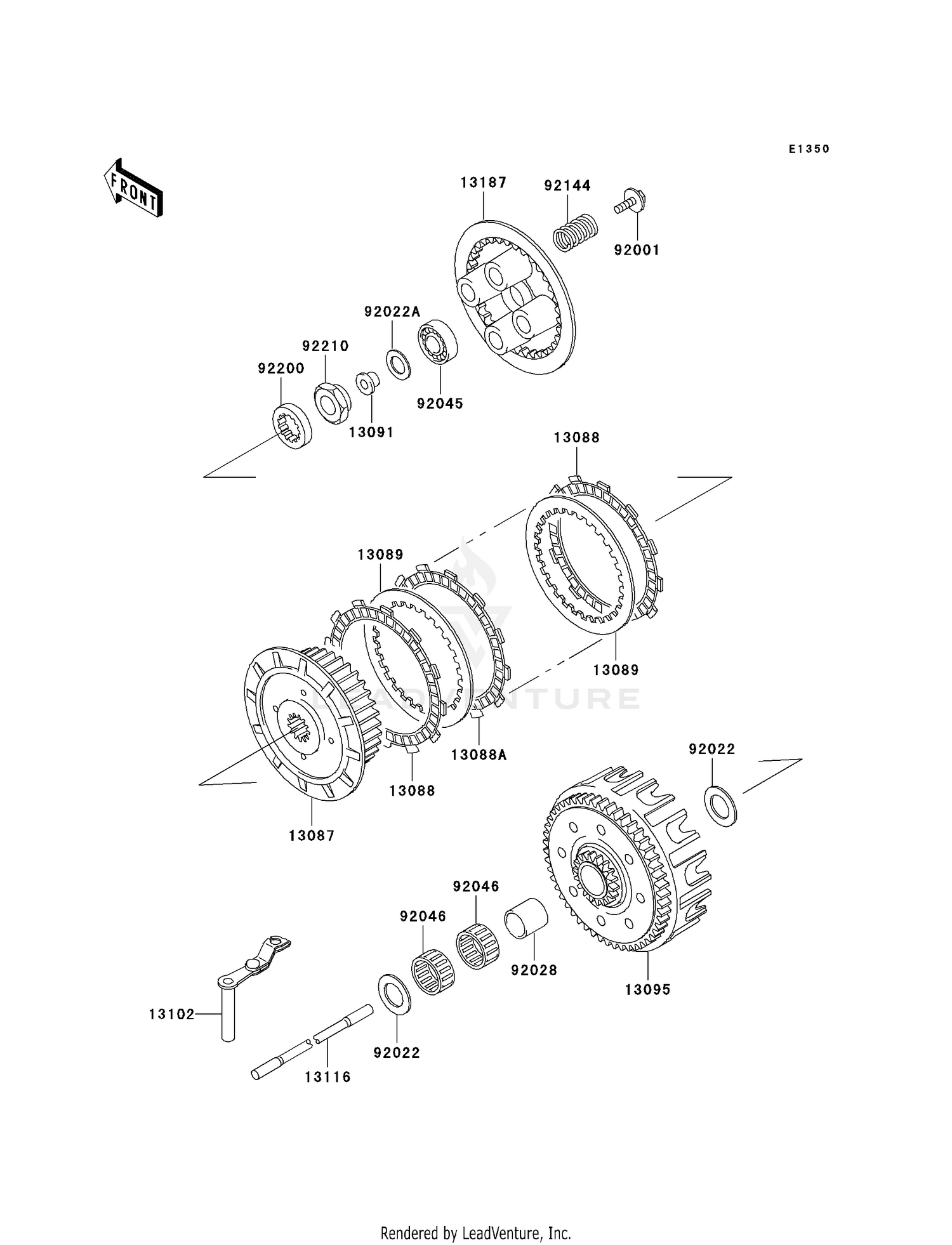

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#13087
HUB-CLUTCH
13087-1167
|
$136.41 | ||
|
Available to order. Add to View Price |
|||
|
#13088
PLATE-FRICTION
13088-1057
|
$14.91 | ||
|
Available to order. Add to View Price |
|||
|
#13088A
PLATE-FRICTION
13088-1102
|
$15.63 | ||
|
Available to order. Add to View Price |
|||
|
#13089
PLATE CLUTCH STEEL
13089-013
|
$12.69 | ||
|
Available to order. Add to View Price |
|||
|
#13091
HOLDER
13091-1907
|
$48.97 | ||
|
Available to order. Add to View Price |
|||
|
#13095
HOUSING-COMP-CLUTCH
13095-1367
|
$376.38 | ||
|
Unavailable |
|||
|
#13102
RELEASE-COMP-CLUTCH
13102-1147
|
$70.75 | ||
|
Available to order. Add to View Price |
|||
|
#13116
ROD-PUSH
13116-1161
|
$34.90 | ||
|
Unavailable |
|||
|
#13187
PLATE-CLUTCH OPERATIN
13187-1065
|
$73.34 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,FLANGED,6X18
92001-1066
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,20.5X34X1.4
92022-168
|
$9.18 | ||
|
Available to order. Add to View Price |
|||
|
#92022A
WASHER,PLAIN
92022-269
|
$1.23 | ||
|
Available to order. Add to View Price |
|||
|
#92028
BUSHING
92028-1700
|
$30.89 | ||
|
Unavailable |
|||
|
#92045
BEARING-BALL,6001C3ML01
92045-1235
|
$15.67 | ||
|
Available to order. Add to View Price |
|||
|
#92046
BEARING-NEEDLE,K25X29
92046-1220
|
$19.72 | ||
|
Available to order. Add to View Price |
|||
|
#92144
SPRING,CLUTCH
92144-1993
|
$9.53 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER
92200-1178
|
$6.97 | ||
|
Available to order. Add to View Price |
|||
|
#92210
NUT,16MM
92210-1207
|
$16.51 | ||
|
Available to order. Add to View Price |
|||
