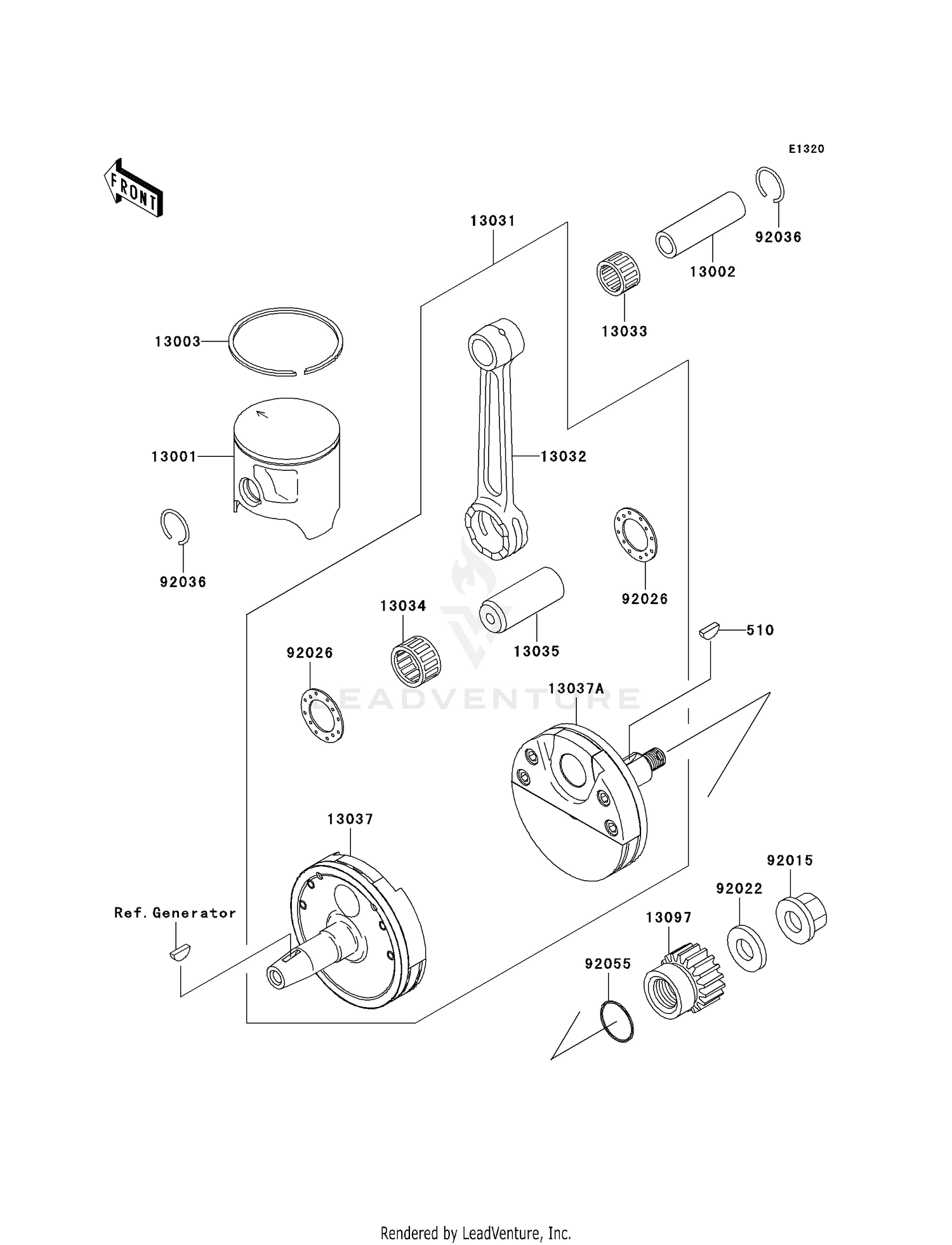

Crankshaft/piston(s) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#510
KEY-WOODRUFF
510A5100
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#13001
PISTON-ENGINE
13001-1607
Superseded by 13001-1642
|
$119.77 | ||
|
Available to order. Add to View Price |
|||
|
#13002
PIN-PISTON
13002-1099
|
$22.21 | ||
|
Available to order. Add to View Price |
|||
|
#13003
RING-PISTON TOP
13003-1356
|
$28.60 | ||
|
Available to order. Add to View Price |
|||
|
#13031
CRANKSHAFT-COMP
13031-1494
|
$315.62 | ||
|
Available to order. Add to View Price |
|||
|
#13032
ROD-CONNECTING
13032-1253
Superseded by 13032-0010
|
$83.04 | ||
|
Available to order. Add to View Price |
|||
|
#13033
BEARING-SMALL END
13033-1057
Superseded by 13033-1062
|
$11.81 | ||
|
Available to order. Add to View Price |
|||
|
#13034
BEARING-BIG END,B4
13034-1099
|
$57.58 | ||
|
Available to order. Add to View Price |
|||
|
#13035
PIN
13035-1010
Superseded by 13035-1010-01
|
$46.06 | ||
|
Available to order. Add to View Price |
|||
|
#13037
CRANKSHAFT,LH
13037-1651
|
$193.62 | ||
|
Available to order. Add to View Price |
|||
|
#13037A
CRANKSHAFT,RH
13037-1653
|
$193.62 | ||
|
Available to order. Add to View Price |
|||
|
#13097
GEAR-PRIMARY SPUR,20T
13097-1399
|
$82.47 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,12MM
92015-1156
Superseded by 92015-1426
|
$7.08 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER
92022-1831
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#92026
SPACER
92026-1546
|
$7.36 | ||
|
Available to order. Add to View Price |
|||
|
#92036
RING-SNAP
92036-005
|
$3.94 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O,18.8X1.9
92055-086
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
