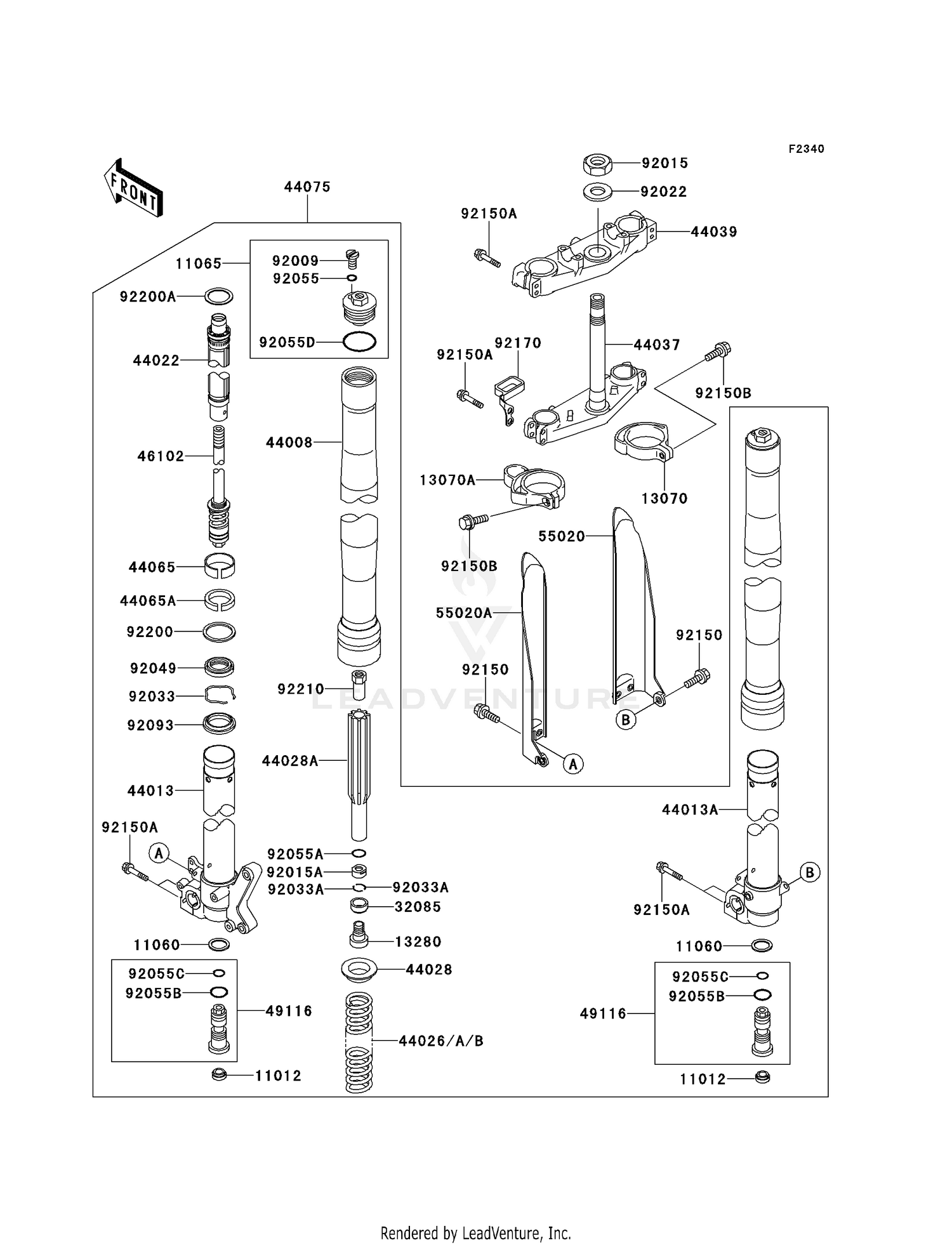

Front Fork Diagram

Item MSRP Qty
#11012 CAP
11012-1692
 $5.96
Available to order.
Add to View Price
#11060 GASKET
11060-1707
 $5.36
Available to order.
Add to View Price
#11065 CAP
11065-1122
 $118.06
Available to order.
Add to View Price
#13070 GUIDE,PROTECTOR,RH,WH
13070-1290-RZ
 $29.23
Available to order.
Add to View Price
#13070A GUIDE,PROTECTOR,LH,WH
13070-1329-RZ
 $20.93
Available to order.
Add to View Price
#13280 HOLDER
13280-1127
 $19.99
Available to order.
Add to View Price
#32085 STOPPER
32085-1323
 $19.32
Available to order.
Add to View Price
#44008 PIPE-FORK OUTER,A.N.G
44008-1049-14
 $577.68
Available to order.
Add to View Price
#44013 PIPE-FORK INNER,LH
44013-1475
 $391.62
Available to order.
Add to View Price
#44013A PIPE-FORK INNER,RH
44013-1476
 $363.80
Available to order.
Add to View Price
#44022 CYLINDER-FORK
44022-1335
 $367.03
Available to order.
Add to View Price
#44026 SPRING-FRONT FORK,K=0
44026-1599
 $87.47
Available to order.
Add to View Price
#44026A SPRING-FRONT FORK
44026-1707
 $85.60
Available to order.
Add to View Price
#44026B SPRING-FRONT FORK,K=0
44026-1712
 $79.56
Available to order.
Add to View Price
#44028 GUIDE-FORK SPRING
44028-1097
 $12.96
Available to order.
Add to View Price
#44028A GUIDE-FORK SPRING
44028-1102
 $38.06
Available to order.
Add to View Price
#44037 HOLDER-FORK UNDER
44037-1371
 $517.66
Available to order.
Add to View Price
#44039 HOLDER-FORK UPPER
44039-1292
 $221.08
Available to order.
Add to View Price
#44065 BUSHING-FRONT FORK
44065-1129
 $19.97
Available to order.
Add to View Price
#44065A BUSHING-FRONT FORK
44065-1130
 $19.97
Available to order.
Add to View Price
#44075 DAMPER-SET-FORK,A.N.G
44075-1106-14
 $2,298.79
Available to order.
Add to View Price
#46102 ROD,INNER
46102-1446
 $866.83
Available to order.
Add to View Price
#49116 VALVE-ASSY,FORK
49116-1178
 $143.25
Available to order.
Add to View Price
#55020 GUARD,FORK,RH,WHITE
55020-1493-RZ
 $57.77
Available to order.
Add to View Price
#55020A GUARD,FORK,LH,WHITE
55020-1554-RZ
 $57.77
Available to order.
Add to View Price
#92009 SCREW
92009-1884
 $7.44
Available to order.
Add to View Price
#92015 NUT,24M/M
92015-1057
 $15.09
Available to order.
Add to View Price
#92015A NUT
92015-1805
 $24.31
Available to order.
Add to View Price
#92022 WASHER,25X36X2.3
92022-250
 $4.84
Available to order.
Add to View Price
#92033 RING-SNAP
92033-1264
 $5.90
Available to order.
Add to View Price
#92033A RING-SNAP
92033-1271
 $6.65
Available to order.
Add to View Price
#92049 SEAL-OIL
92049-1504
 $25.19
Available to order.
Add to View Price
#92055 RING-O,2.8X6.6X1.9
92055-1441
 $2.87
Unavailable
#92055A RING-O
92055-1442
 $8.89
Available to order.
Add to View Price
#92055B RING-O,FORK VALVE
92055-1547
 $5.07
Available to order.
Add to View Price
#92055C RING-O,FORK VALVE
92055-1548
 $4.26
Available to order.
Add to View Price
#92055D RING-O
92055-1549
 $9.15
Available to order.
Add to View Price
#92093 SEAL,FORK OUTER TUBE
92093-1525
 $23.11
Available to order.
Add to View Price
#92150 BOLT,6X12
92150-1435
 $4.17
Available to order.
Add to View Price
#92150A BOLT,FLANGED,8X40
92150-1516
 $13.65
Available to order.
Add to View Price
#92150B BOLT,5X16
92150-1802
 $4.84
Available to order.
Add to View Price
#92170 CLAMP,HOSE
92170-1604
 $24.83
Available to order.
Add to View Price
#92200 WASHER
92200-1006
 $11.49
Available to order.
Add to View Price
#92200A WASHER
92200-1514
 $10.03
Available to order.
Add to View Price
#92210 NUT
92210-1177
 $24.27
Available to order.
Add to View Price
