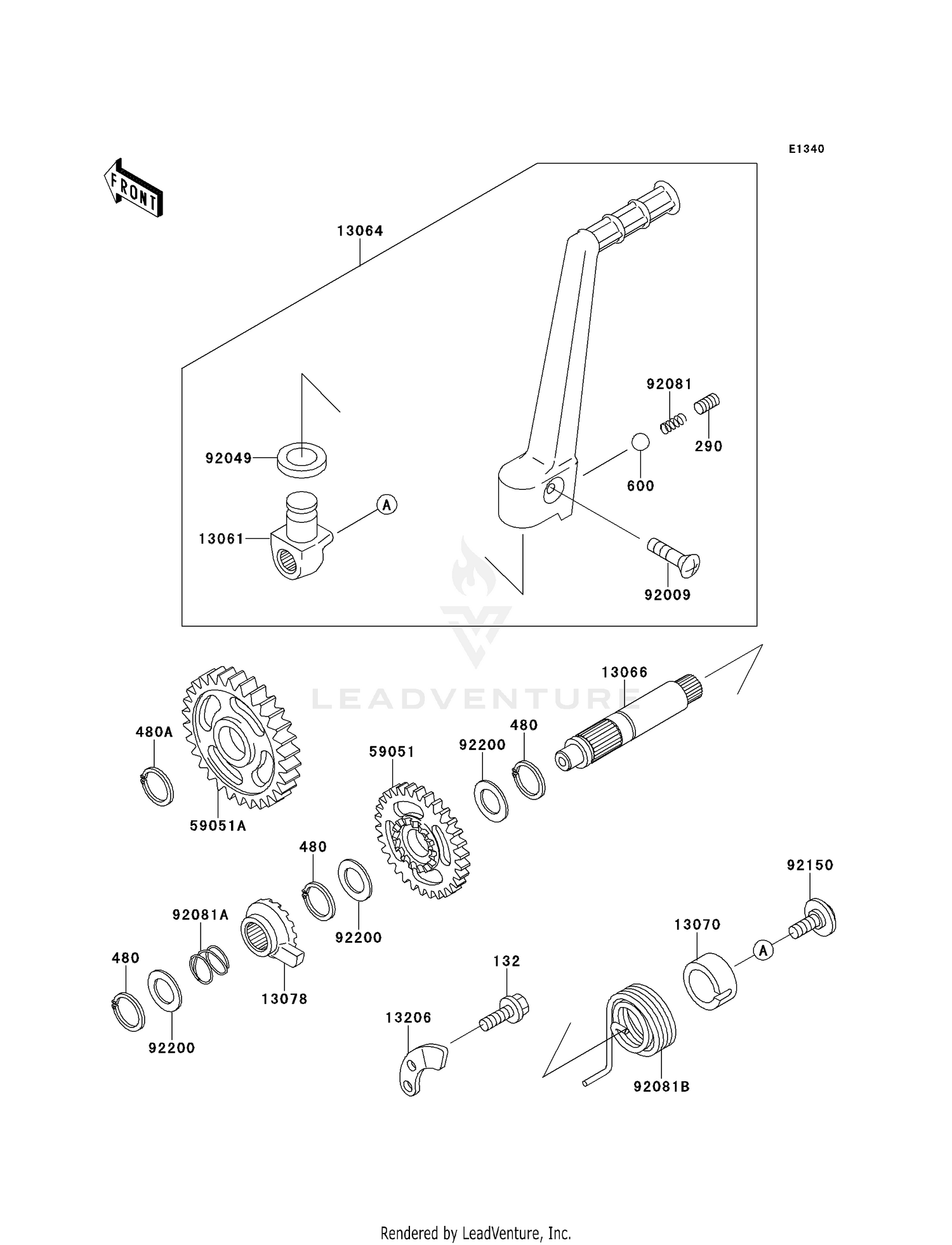

Kickstarter Mechanism Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#132
BOLT-FLANGED-SMALL,6X16
132G0616
Superseded by 132BA0616
|
$1.47 | ||
|
Available to order. Add to View Price |
|||
|
#290
SCREW-SET-SOCKET,8X8
290P0808
Superseded by 290CA0808
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#480
CIRCLIP-TYPE-C,16MM
480J1600
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#480A
CIRCLIP-TYPE-C,17MM
480J1700
|
$0.64 | ||
|
Available to order. Add to View Price |
|||
|
#600
BALL-STEEL,1/4
600A0800
|
$0.61 | ||
|
Available to order. Add to View Price |
|||
|
#13061
BOSS,KICK
13061-1713
|
$74.16 | ||
|
Available to order. Add to View Price |
|||
|
#13064
LEVER-ASSY-KICK
13064-1189
Superseded by 13064-0001
|
$139.50 | ||
|
Available to order. Add to View Price |
|||
|
#13066
SHAFT-KICK
13066-1101
|
$98.48 | ||
|
Available to order. Add to View Price |
|||
|
#13070
GUIDE,KICK SPRING
13070-1007
|
$10.58 | ||
|
Available to order. Add to View Price |
|||
|
#13078
RATCHET,KL250-D2
13078-1052
|
$64.01 | ||
|
Available to order. Add to View Price |
|||
|
#13206
GUIDE-KICK
13206-1061
|
$11.38 | ||
|
Available to order. Add to View Price |
|||
|
#59051
GEAR-SPUR,KICK,30T
59051-1364
|
$88.97 | ||
|
Available to order. Add to View Price |
|||
|
#59051A
GEAR-SPUR,IDLER,31T
59051-1365
|
$71.92 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,6X27
92009-1607
|
$8.28 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,KICK PEDAL
92049-1387
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,KICK PEDAL
92081-020
|
$4.13 | ||
|
Available to order. Add to View Price |
|||
|
#92081A
SPRING,RATCHET
92081-122
|
$8.48 | ||
|
Available to order. Add to View Price |
|||
|
#92081B
SPRING,KICKSTARTER
92081-1768
|
$16.77 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT
92150-1673
Superseded by 92150-1737
|
$10.38 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER,KICKSHAFT
92200-1209
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
