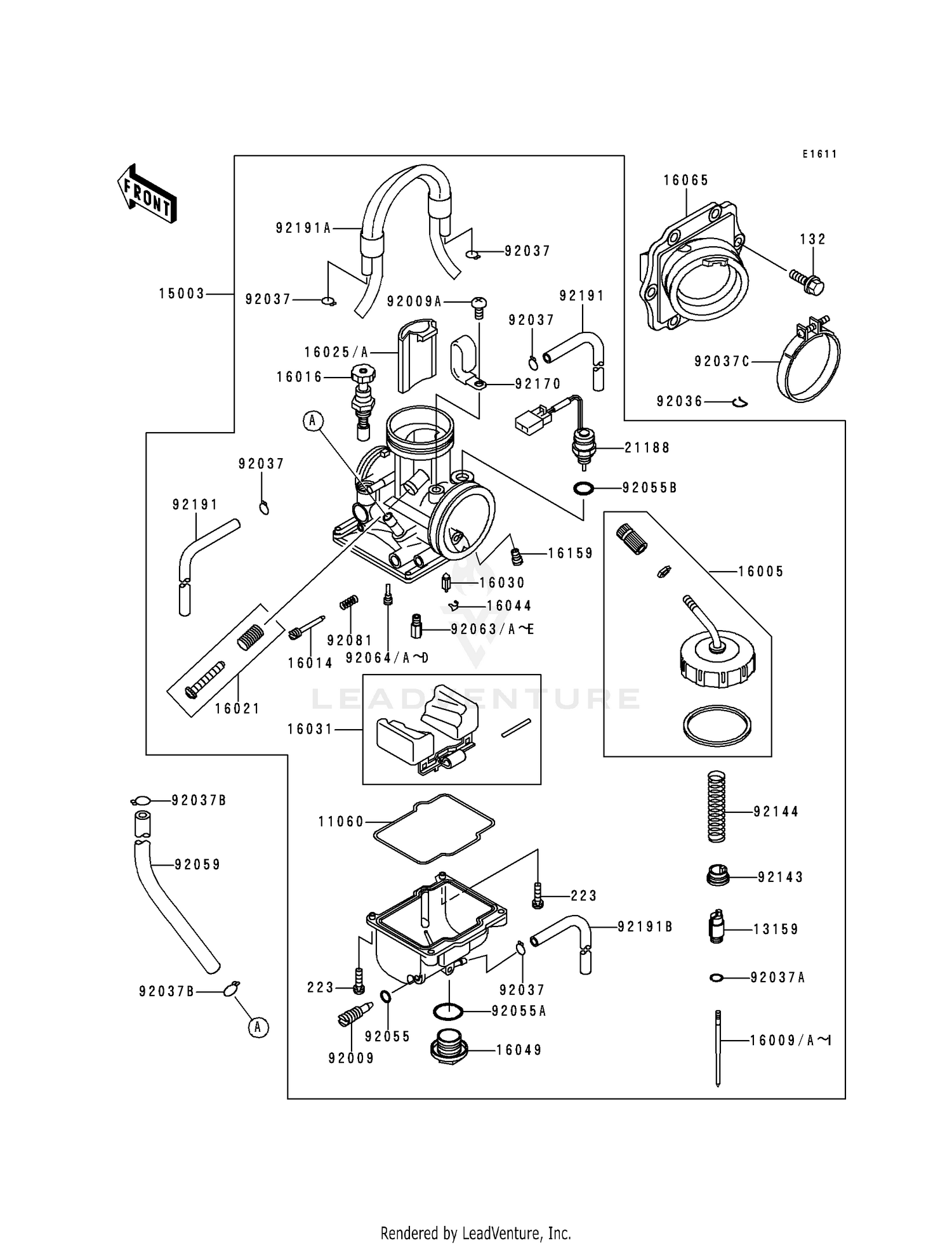

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11060
GASKET,FLOAT CHAMBER
11060-1254
|
$18.70 | ||
|
Available to order. Add to View Price |
|||
|
#13159
CONNECTOR,THROTTLE CA
13159-1063
|
$20.78 | ||
|
Available to order. Add to View Price |
|||
|
#15003
CARBURETOR-ASSY
15003-1345
|
$397.12 | ||
|
Available to order. Add to View Price |
|||
|
#16005
TOP-CHAMBER
16005-1071
|
$58.12 | ||
|
Unavailable |
|||
|
#16009
NEEDLE-JET,0XHHH
16009-1980
|
$33.02 | ||
|
Available to order. Add to View Price |
|||
|
#16009A
NEEDLE-JET,0XHHJ
16009-1981
|
$33.02 | ||
|
Available to order. Add to View Price |
|||
|
#16009B
NEEDLE-JET,0XHHK
16009-1982
|
$33.02 | ||
|
Available to order. Add to View Price |
|||
|
#16009C
NEEDLE-JET,0XHHL
16009-1983
|
$33.02 | ||
|
Available to order. Add to View Price |
|||
|
#16009D
NEEDLE-JET,0XHGH
16009-1985
|
$31.54 | ||
|
Available to order. Add to View Price |
|||
|
#16009E
NEEDLE-JET,0XHGJ
16009-1986
|
$33.02 | ||
|
Available to order. Add to View Price |
|||
|
#16009F
NEEDLE-JET,0XHGK
16009-1987
|
$31.54 | ||
|
Available to order. Add to View Price |
|||
|
#16009G
NEEDLE-JET,0XHGL
16009-1988
|
$31.54 | ||
|
Available to order. Add to View Price |
|||
|
#16009H
NEEDLE-JET,0XHHM
16009-1989
|
$31.54 | ||
|
Available to order. Add to View Price |
|||
|
#16009I
NEEDLE-JET,0XHGM
16009-1990
|
$31.54 | ||
|
Available to order. Add to View Price |
|||
|
#16014
SCREW-PILOT AIR
16014-1058
|
$20.03 | ||
|
Available to order. Add to View Price |
|||
|
#16016
PLUNGER
16016-1085
|
$43.73 | ||
|
Available to order. Add to View Price |
|||
|
#16021
SCREW-THROTTLE STOP
16021-1198
|
$20.34 | ||
|
Available to order. Add to View Price |
|||
|
#16025
VALVE-THROTTLE,#7
16025-1194
Superseded by 16025-1216
|
$131.47 | ||
|
Available to order. Add to View Price |
|||
|
#16025A
VALVE-THROTTLE,CA6
16025-1210
|
$106.04 | ||
|
Available to order. Add to View Price |
|||
|
#16030
VALVE-FLOAT
16030-1057
|
$45.31 | ||
|
Available to order. Add to View Price |
|||
|
#16031
FLOAT
16031-1084
|
$68.63 | ||
|
Available to order. Add to View Price |
|||
|
#16044
CLAMP,FLOAT VALVE
16044-007
|
$7.64 | ||
|
Available to order. Add to View Price |
|||
|
#16049
COVER-MAIN JET
16049-1051
|
$32.02 | ||
|
Available to order. Add to View Price |
|||
|
#16065
HOLDER-CARBURETOR
16065-1343
Superseded by 16065-1362
|
$97.37 | ||
|
Available to order. Add to View Price |
|||
|
#16159
JET-POWER,#50
16159-1053
|
$14.14 | ||
|
Available to order. Add to View Price |
|||
|
#21188
SOLENOID
21188-1005
|
$75.12 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,DRAIN
92009-1057
|
$7.57 | ||
|
Available to order. Add to View Price |
|||
|
#92009A
SCREW,CLAMP
92009-1833
|
$2.38 | ||
|
Available to order. Add to View Price |
|||
|
#92036
RING-SNAP
92036-018
|
$3.77 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,TUBE
92037-1396
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#92037A
CLAMP,JET NEEDLE
92037-1401
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#132
BOLT-FLANGED-SMALL,6X20
132G0620
Superseded by 132BA0620
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
|
#223
SCREW-PAN-WS-CROS,4X16
223C0416
Superseded by 223AB0416
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#92037B
CLAMP,TUBE
92037-147
|
$7.09 | ||
|
Available to order. Add to View Price |
|||
|
#92037C
CLAMP
92037-1523
|
$11.91 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O
92055-1053
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92055A
RING-O,MAIN JET COVER
92055-1167
|
$9.18 | ||
|
Available to order. Add to View Price |
|||
|
#92055B
RING-O
92055-1580
|
$2.68 | ||
|
Available to order. Add to View Price |
|||
|
#92059
TUBE
92059-1393
Superseded by 92059-1596
|
$31.44 | ||
|
Available to order. Add to View Price |
|||
|
#92063
JET-MAIN,#155
92063-1366
|
$14.50 | ||
|
Available to order. Add to View Price |
|||
|
#92063A
JET-MAIN,#158
92063-1367
|
$14.50 | ||
|
Available to order. Add to View Price |
|||
|
#92063B
JET-MAIN,#160
92063-1368
|
$14.50 | ||
|
Available to order. Add to View Price |
|||
|
#92063C
JET-MAIN,#162
92063-1369
|
$15.20 | ||
|
Available to order. Add to View Price |
|||
|
#92063D
JET-MAIN,#165
92063-1370
|
$15.20 | ||
|
Available to order. Add to View Price |
|||
|
#92063E
JET-MAIN
92063-1372
|
$15.20 | ||
|
Available to order. Add to View Price |
|||
|
#92064
JET-PILOT,#38
92064-1139
|
$16.42 | ||
|
Available to order. Add to View Price |
|||
|
#92064A
JET-PILOT,#40
92064-1140
|
$16.42 | ||
|
Available to order. Add to View Price |
|||
|
#92064B
JET-PILOT,#42
92064-1141
|
$16.42 | ||
|
Available to order. Add to View Price |
|||
|
#92064C
JET-PILOT,#45
92064-1142
|
$16.42 | ||
|
Available to order. Add to View Price |
|||
|
#92064D
JET-PILOT,#48
92064-1143
|
$16.42 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,ADJUST SCREW
92081-1555
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#92143
COLLAR,THROTTLE VALVE
92143-1201
|
$23.96 | ||
|
Available to order. Add to View Price |
|||
|
#92144
SPRING,THROTTLE VALVE
92144-1305
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#92170
CLAMP
92170-1873
|
$8.27 | ||
|
Available to order. Add to View Price |
|||
|
#92191
TUBE,4X7X480
92191-1254
|
$17.14 | ||
|
Available to order. Add to View Price |
|||
|
#92191A
TUBE,AIR VENT
92191-1255
|
$32.32 | ||
|
Available to order. Add to View Price |
|||
|
#92191B
TUBE,3.5X6.5X330
92191-1256
|
$11.23 | ||
|
Available to order. Add to View Price |
|||
