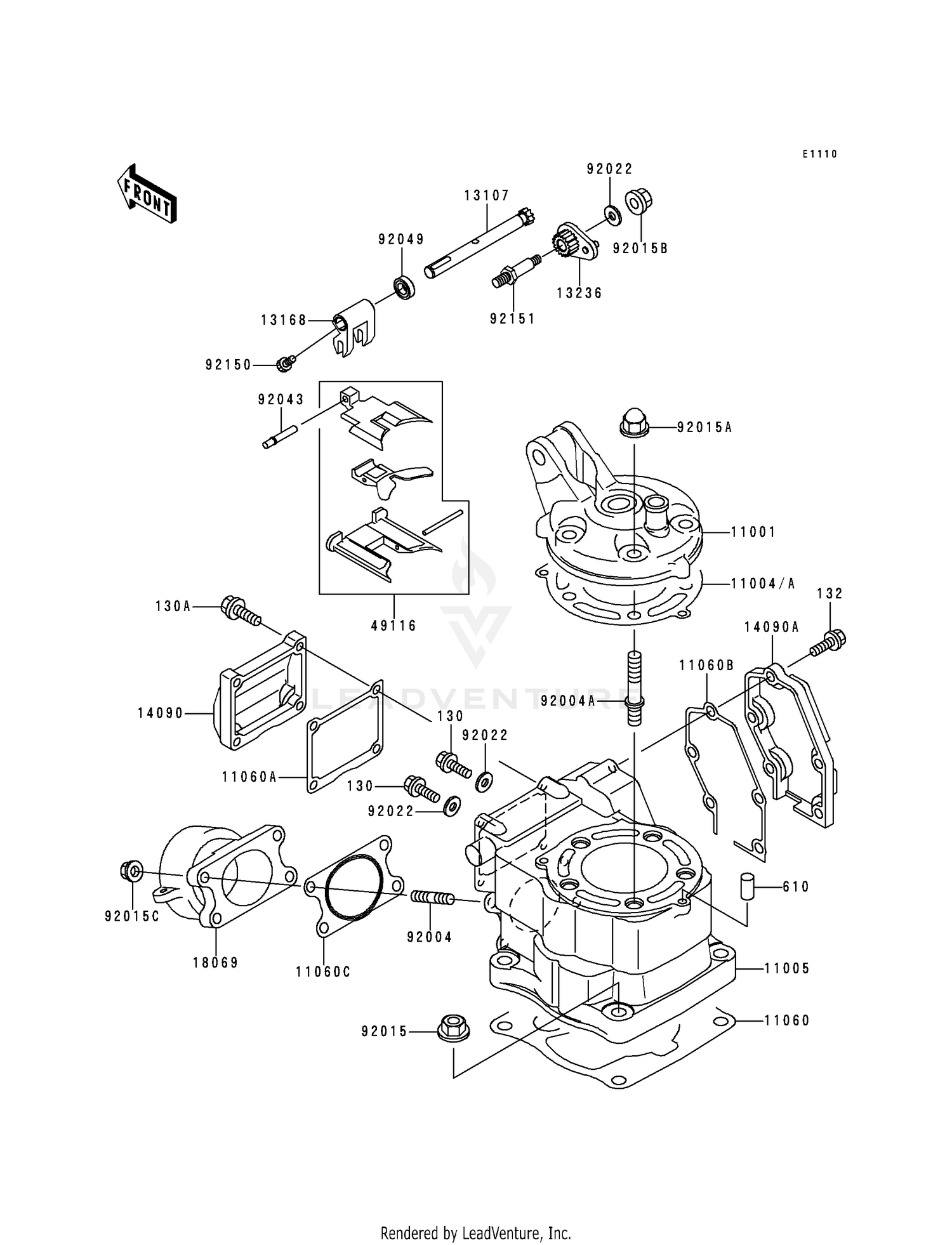

Cylinder Head/cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#130
BOLT-FLANGED,5X8
130G0508
Superseded by 130BA0508
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
|
#130A
BOLT-FLANGED,5X20
130G0520
Superseded by 130CA0520
|
$1.28 | ||
|
Available to order. Add to View Price |
|||
|
#132
BOLT-FLANGED-SMALL,6X16
132G0616
Superseded by 132BA0616
|
$1.47 | ||
|
Available to order. Add to View Price |
|||
|
#610
ROLLER,4X8
610A0408
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#11001
HEAD-CYLINDER
11001-1435
|
$236.29 | ||
|
Available to order. Add to View Price |
|||
|
#11004
GASKET-HEAD,T=0.46
11004-1252
|
$38.77 | ||
|
Available to order. Add to View Price |
|||
|
#11004A
GASKET-HEAD,T=0.26
11004-1300
|
$38.77 | ||
|
Available to order. Add to View Price |
|||
|
#11005
CYLINDER-ENGINE
11005-1852
|
$571.27 | ||
|
Available to order. Add to View Price |
|||
|
#11060
GASKET,CYLINDER BASE
11060-1769
|
$20.28 | ||
|
Available to order. Add to View Price |
|||
|
#11060A
GASKET,CENTER COVER
11060-1788
|
$4.58 | ||
|
Available to order. Add to View Price |
|||
|
#11060B
GASKET,RH COVER
11060-1789
|
$8.67 | ||
|
Available to order. Add to View Price |
|||
|
#11060C
GASKET
11060-1790
Superseded by 11060-1973
|
$14.90 | ||
|
Available to order. Add to View Price |
|||
|
#13107
SHAFT
13107-1374
|
$39.20 | ||
|
Available to order. Add to View Price |
|||
|
#13168
LEVER,MAIN VALVE
13168-1499
|
$87.95 | ||
|
Available to order. Add to View Price |
|||
|
#13236
LEVER-COMP
13236-1308
|
$39.15 | ||
|
Available to order. Add to View Price |
|||
|
#14090
COVER,CENTER
14090-1828
|
$15.22 | ||
|
Available to order. Add to View Price |
|||
|
#14090A
COVER,RH
14090-1829
|
$16.15 | ||
|
Available to order. Add to View Price |
|||
|
#18069
HOLDER-EXHAUST PIPE
18069-1140
Superseded by 18069-1166
|
$45.94 | ||
|
Available to order. Add to View Price |
|||
|
#49116
VALVE-ASSY
49116-1156
Superseded by 49116-1164
|
$177.62 | ||
|
Available to order. Add to View Price |
|||
|
#92004
STUD,6X18
92004-1154
|
$5.01 | ||
|
Available to order. Add to View Price |
|||
|
#92004A
STUD,8X28
92004-1236
|
$5.25 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,8MM
92015-1143
|
$0.64 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,CAP,8MM
92015-1151
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92015B
NUT,LOCK,5MM
92015-1221
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#92015C
NUT,FLANGED,6MM
92015-1367
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,5.2X13X1
92022-1380
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN,MAIN VALVE
92043-1470
|
$4.76 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,SD088144
92049-1238
|
$10.09 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT,SOCKET,4X8
92150-1888
|
$3.23 | ||
|
Available to order. Add to View Price |
|||
|
#92151
BOLT
92151-1257
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
