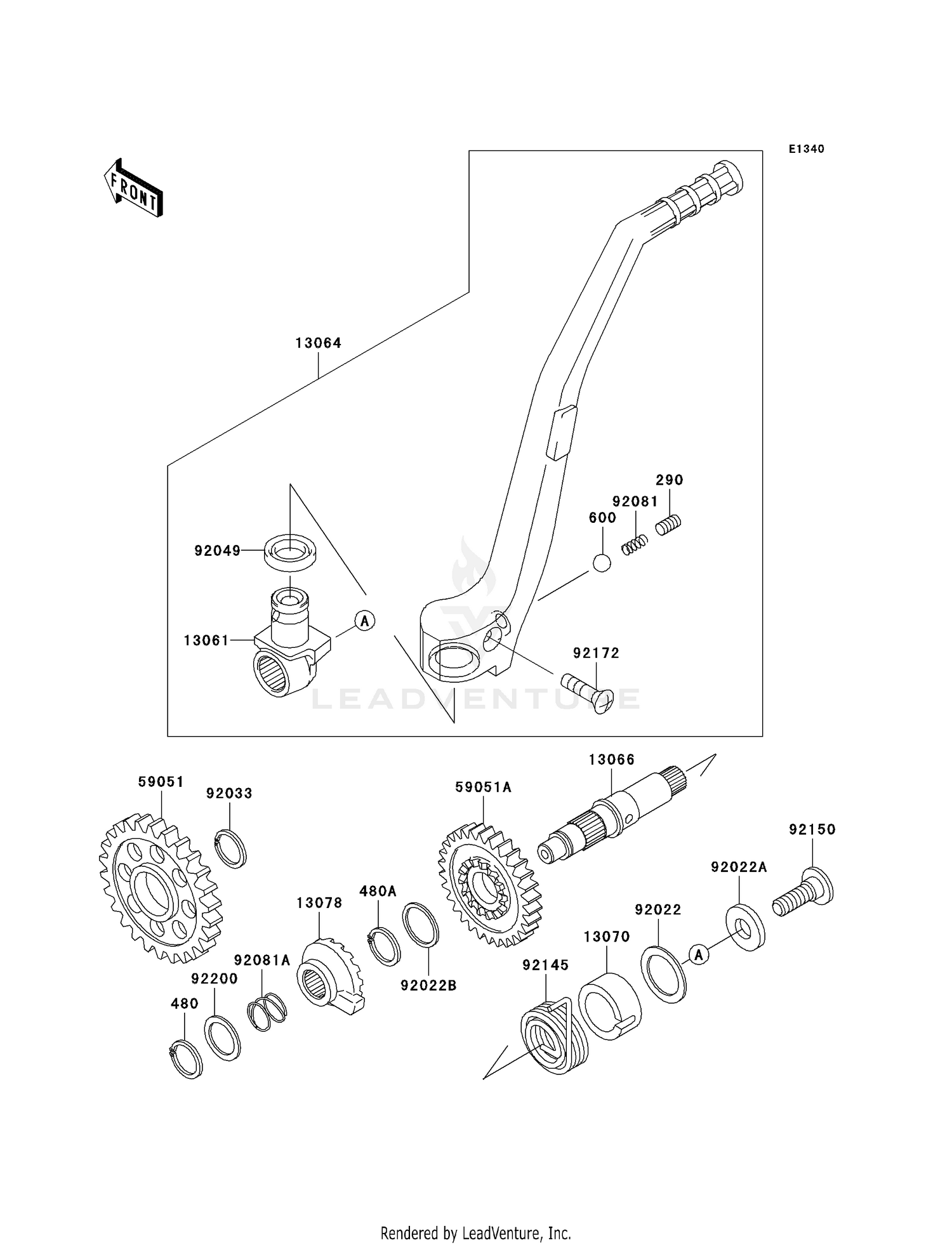

Kickstarter Mechanism Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#290
SCREW-SET-SOCKET,8X12
290P0812
Superseded by 290CA0812
|
$3.44 | ||
|
Available to order. Add to View Price |
|||
|
#480
CIRCLIP-TYPE-C,16MM
480J1600
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#480A
CIRCLIP-TYPE-C,18MM
480J1800
|
$1.26 | ||
|
Available to order. Add to View Price |
|||
|
#600
BALL-STEEL,1/4
600A0800
|
$0.61 | ||
|
Available to order. Add to View Price |
|||
|
#13061
BOSS
13061-0002
Superseded by 13061-0057
|
$85.81 | ||
|
Available to order. Add to View Price |
|||
|
#13064
LEVER-ASSY-KICK
13064-0002
Superseded by 13064-0016
|
$141.26 | ||
|
Available to order. Add to View Price |
|||
|
#13066
SHAFT-KICK
13066-1107
|
$129.49 | ||
|
Available to order. Add to View Price |
|||
|
#13070
GUIDE,KICK SPRING
13070-1378
|
$20.00 | ||
|
Available to order. Add to View Price |
|||
|
#13078
RATCHET
13078-1063
|
$84.39 | ||
|
Available to order. Add to View Price |
|||
|
#59051
GEAR,KICKSTARTER IDLE
59051-1271
|
$121.54 | ||
|
Available to order. Add to View Price |
|||
|
#59051A
GEAR-SPUR,KICK STARTE
59051-1339
|
$134.81 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER
92022-1885
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92022A
WASHER,10X22X3.2
92022-1944
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92022B
WASHER,18.3X22X0.5
92022-271
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP,18MM
92033-029
|
$9.48 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,KICK PEDAL
92049-1387
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,KICK PEDAL
92081-020
|
$4.13 | ||
|
Available to order. Add to View Price |
|||
|
#92081A
SPRING,RATCHET
92081-122
|
$8.48 | ||
|
Available to order. Add to View Price |
|||
|
#92145
SPRING,KICKSTARTER
92145-1517
|
$25.64 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT,8X25
92150-1858
|
$7.57 | ||
|
Available to order. Add to View Price |
|||
|
#92172
SCREW,6X30
92172-1088
|
$4.52 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER,KICKSHAFT
92200-1209
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
