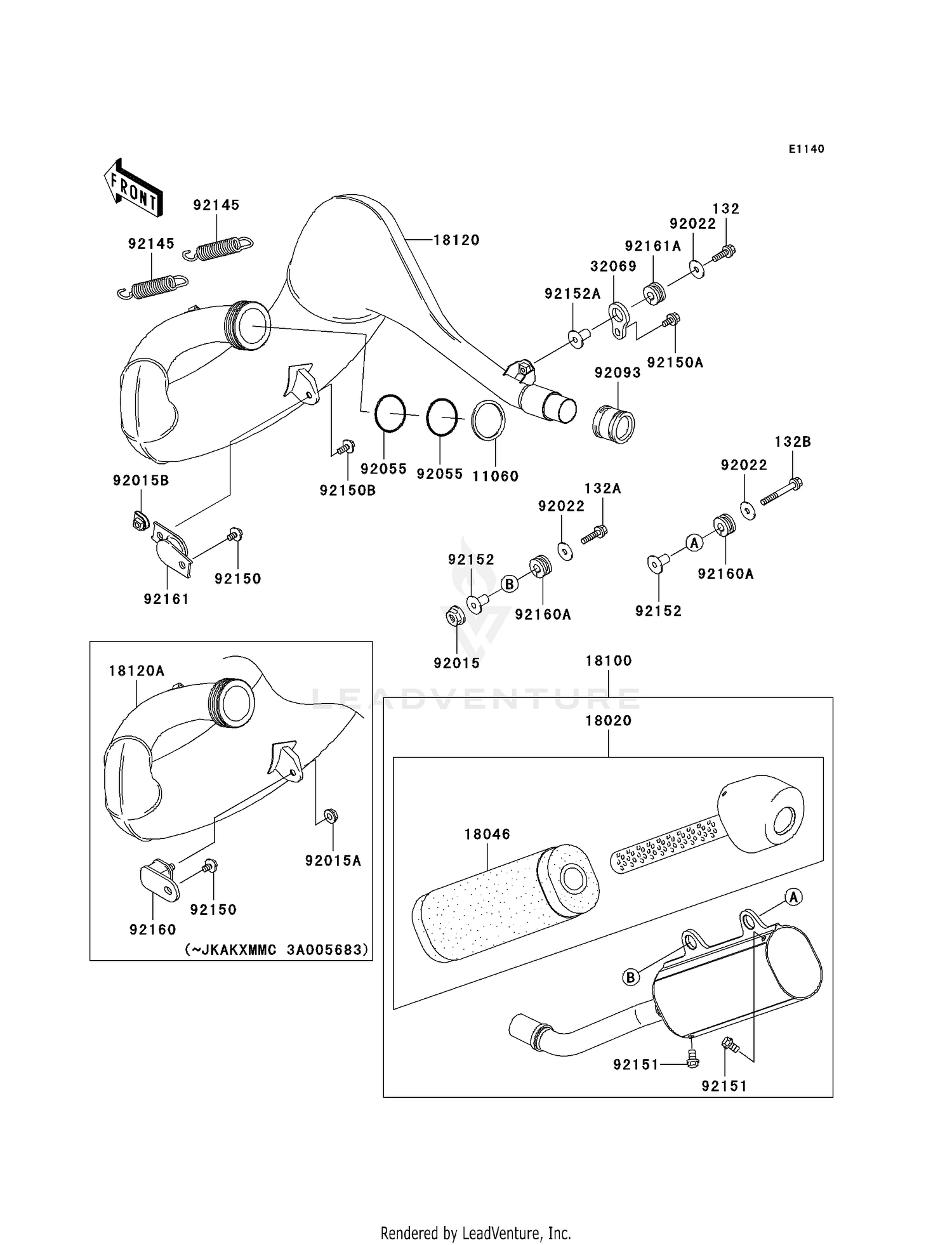

Muffler(s) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#132
BOLT,6X25
132G0625
Superseded by 92153-1148
|
$0.73 | ||
|
Available to order. Add to View Price |
|||
|
#132A
BOLT-FLANGED-SMALL,6X30
132G0630
Superseded by 132BA0630
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#132B
BOLT-FLANGED-SMALL,6X50
132G0650
Superseded by 132BA0650
|
$3.57 | ||
|
Available to order. Add to View Price |
|||
|
#11060
GASKET
11060-1689
|
$8.23 | ||
|
Available to order. Add to View Price |
|||
|
#18020
BAFFLE
18020-1294
|
$214.41 | ||
|
Available to order. Add to View Price |
|||
|
#18046
WOOL
18046-1599
|
$158.18 | ||
|
Available to order. Add to View Price |
|||
|
#18100
BODY-ASSY-MUFFLER
18100-1094
|
$368.50 | ||
|
Available to order. Add to View Price |
|||
|
#18120
CHAMBER-EXHAUST
18120-0004
|
$400.30 | ||
|
Available to order. Add to View Price |
|||
|
#18120A
CHAMBER-EXHAUST
18120-1124
|
$306.30 | ||
|
Available to order. Add to View Price |
|||
|
#32069
BRACKET-MUFFLER
32069-1676
|
$25.56 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,6MM
92015-1078
Superseded by 92210-0630
|
$1.94 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,FLANGED,6MM
92015-1078
Superseded by 92210-0630
|
$1.94 | ||
|
Unavailable |
|||
|
#92015B
NUT,CLIP,6MM
92015-1904
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,6.5X22X1.6
92022-237
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O,49.4X52.7
92055-1666
|
$16.29 | ||
|
Available to order. Add to View Price |
|||
|
#92093
SEAL,MUFFLER CONNECTI
92093-1328
|
$40.90 | ||
|
Available to order. Add to View Price |
|||
|
#92145
SPRING,EXHAUST PIPE
92145-1551
|
$22.13 | ||
|
Unavailable |
|||
|
#92150
BOLT,6X12
92150-1435
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92150A
BOLT,FLANGED,6X16
92150-1506
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92150B
BOLT,FLANGED,6X16
92150-1506
|
$4.84 | ||
|
Unavailable |
|||
|
#92151
BOLT,FLANGED,6X10
92151-1822
|
$1.69 | ||
|
Available to order. Add to View Price |
|||
|
#92152
COLLAR,6.8X10X12.1
92152-1407
|
$8.42 | ||
|
Available to order. Add to View Price |
|||
|
#92152A
COLLAR
92152-1468
|
$10.06 | ||
|
Available to order. Add to View Price |
|||
|
#92160
DAMPER,MUFFLER,FR
92160-1176
|
$27.16 | ||
|
Available to order. Add to View Price |
|||
|
#92160A
DAMPER
92160-1913
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#92161
DAMPER
92161-1290
|
$33.41 | ||
|
Available to order. Add to View Price |
|||
|
#92161A
DAMPER
92161-1331
|
$3.17 | ||
|
Available to order. Add to View Price |
|||
