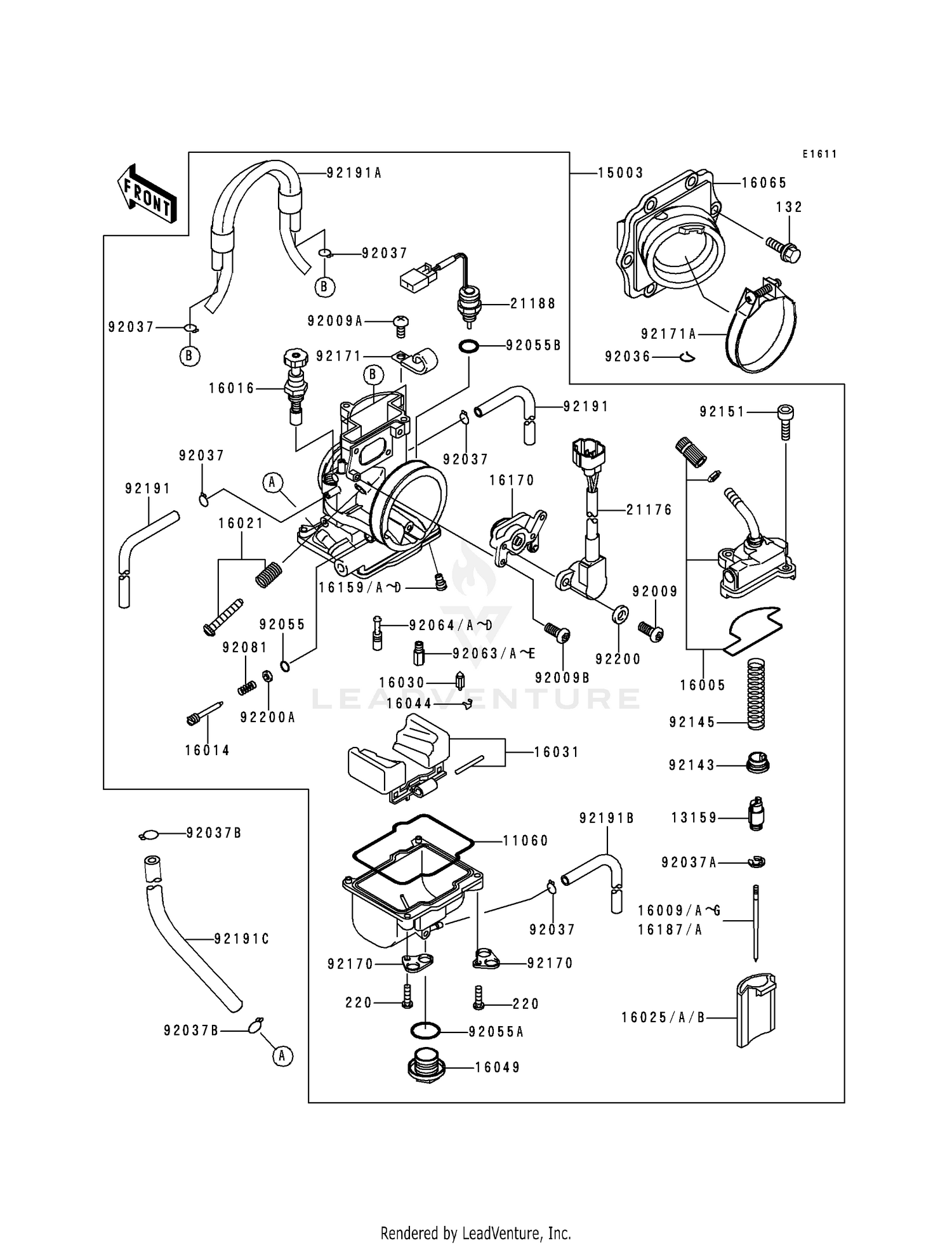

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11060
GASKET,FLOAT CHAMBER
11060-1254
|
$18.70 | ||
|
Available to order. Add to View Price |
|||
|
#13159
CONNECTOR,THROTTLE CA
13159-1063
|
$20.78 | ||
|
Available to order. Add to View Price |
|||
|
#15003
CARBURETOR-ASSY
15003-1524
|
$578.01 | ||
|
Available to order. Add to View Price |
|||
|
#16005
TOP-CHAMBER
16005-1083
|
$55.46 | ||
|
Available to order. Add to View Price |
|||
|
#16009
NEEDLE-JET
16009-1914
|
$35.05 | ||
|
Available to order. Add to View Price |
|||
|
#16009A
NEEDLE-JET
16009-1915
|
$35.05 | ||
|
Available to order. Add to View Price |
|||
|
#16009B
NEEDLE-JET,N3WF
16009-1916
|
$32.60 | ||
|
Available to order. Add to View Price |
|||
|
#16009C
NEEDLE-JET
16009-1917
|
$35.05 | ||
|
Available to order. Add to View Price |
|||
|
#16009D
NEEDLE-JET
16009-1919
|
$32.60 | ||
|
Available to order. Add to View Price |
|||
|
#16009E
NEEDLE-JET
16009-1920
|
$32.60 | ||
|
Available to order. Add to View Price |
|||
|
#16009F
NEEDLE-JET
16009-1921
|
$38.43 | ||
|
Available to order. Add to View Price |
|||
|
#16009G
NEEDLE-JET
16009-1922
|
$38.43 | ||
|
Available to order. Add to View Price |
|||
|
#16014
SCREW-PILOT AIR
16014-1058
|
$20.03 | ||
|
Available to order. Add to View Price |
|||
|
#16016
PLUNGER
16016-1085
|
$43.73 | ||
|
Available to order. Add to View Price |
|||
|
#16021
SCREW-THROTTLE STOP
16021-1198
|
$20.34 | ||
|
Available to order. Add to View Price |
|||
|
#16025
VALVE-THROTTLE,#6
16025-1215
|
$129.12 | ||
|
Available to order. Add to View Price |
|||
|
#16025A
VALVE-THROTTLE,#7
16025-1216
|
$131.47 | ||
|
Available to order. Add to View Price |
|||
|
#16025B
VALVE-THROTTLE,#8
16025-1217
|
$129.12 | ||
|
Available to order. Add to View Price |
|||
|
#16030
VALVE-FLOAT
16030-1057
|
$45.31 | ||
|
Available to order. Add to View Price |
|||
|
#16031
FLOAT
16031-1100
|
$55.77 | ||
|
Available to order. Add to View Price |
|||
|
#16044
CLAMP,FLOAT VALVE
16044-007
|
$7.64 | ||
|
Available to order. Add to View Price |
|||
|
#16049
COVER-MAIN JET
16049-1051
|
$32.02 | ||
|
Available to order. Add to View Price |
|||
|
#16065
HOLDER-CARBURETOR
16065-1358
|
$105.51 | ||
|
Available to order. Add to View Price |
|||
|
#16159
JET-POWER,#50
16159-1053
|
$14.14 | ||
|
Available to order. Add to View Price |
|||
|
#16159A
JET-POWER,#Y2
16159-1055
|
$15.83 | ||
|
Available to order. Add to View Price |
|||
|
#16159B
JET-POWER,#48
16159-1058
|
$16.69 | ||
|
Available to order. Add to View Price |
|||
|
#16159C
JET-POWER
16159-1059
|
$14.01 | ||
|
Available to order. Add to View Price |
|||
|
#16159D
JET-POWER
16159-1060
|
$16.69 | ||
|
Available to order. Add to View Price |
|||
|
#16170
LINK-ASSY
16170-1056
|
$88.79 | ||
|
Available to order. Add to View Price |
|||
|
#16187
NEEDLE-JET,N3WC
16187-1122
|
$33.67 | ||
|
Available to order. Add to View Price |
|||
|
#16187A
NEEDLE-JET,N3YC
16187-1123
|
$33.67 | ||
|
Available to order. Add to View Price |
|||
|
#21176
SENSOR
21176-1089
|
$87.75 | ||
|
Available to order. Add to View Price |
|||
|
#21188
SOLENOID
21188-1005
|
$75.12 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW
92009-1781
|
$2.68 | ||
|
Available to order. Add to View Price |
|||
|
#92009A
SCREW,CLAMP
92009-1833
|
$2.38 | ||
|
Available to order. Add to View Price |
|||
|
#92009B
SCREW,TORX,4X8
92009-1889
|
$2.51 | ||
|
Available to order. Add to View Price |
|||
|
#92036
RING-SNAP
92036-018
|
$3.77 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,TUBE
92037-1396
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#92037A
CLAMP,JET NEEDLE
92037-1401
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92037B
CLAMP,TUBE
92037-147
|
$7.09 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O,PILOT ADJUST
92055-1002
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92055A
RING-O,MAIN JET COVER
92055-1167
|
$9.18 | ||
|
Available to order. Add to View Price |
|||
|
#92055B
RING-O
92055-1580
|
$2.68 | ||
|
Available to order. Add to View Price |
|||
|
#92063
JET-MAIN,#155
92063-1366
|
$14.50 | ||
|
Available to order. Add to View Price |
|||
|
#92063A
JET-MAIN,#158
92063-1367
|
$14.50 | ||
|
Available to order. Add to View Price |
|||
|
#92063B
JET-MAIN,#160
92063-1368
|
$14.50 | ||
|
Available to order. Add to View Price |
|||
|
#92063C
JET-MAIN,#162
92063-1369
|
$15.20 | ||
|
Available to order. Add to View Price |
|||
|
#92063D
JET-MAIN,#165
92063-1370
|
$15.20 | ||
|
Available to order. Add to View Price |
|||
|
#92063E
JET-MAIN
92063-1372
|
$15.20 | ||
|
Available to order. Add to View Price |
|||
|
#92064
JET-PILOT,#52
92064-1130
|
$18.37 | ||
|
Available to order. Add to View Price |
|||
|
#92064A
JET-PILOT,#48
92064-1143
|
$16.42 | ||
|
Available to order. Add to View Price |
|||
|
#92064B
JET-PILOT
92064-1144
|
$17.21 | ||
|
Available to order. Add to View Price |
|||
|
#92064C
JET-PILOT,#55
92064-1145
|
$18.37 | ||
|
Available to order. Add to View Price |
|||
|
#92064D
JET-PILOT
92064-1146
|
$19.25 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,ADJUST SCREW
92081-1555
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#92143
COLLAR,THROTTLE VALVE
92143-1201
|
$23.96 | ||
|
Available to order. Add to View Price |
|||
|
#92145
SPRING,THROTTLE VALVE
92145-1242
|
$19.78 | ||
|
Available to order. Add to View Price |
|||
|
#92151
BOLT
92151-1507
|
$2.38 | ||
|
Available to order. Add to View Price |
|||
|
#92170
CLAMP
92170-1582
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#132
BOLT-FLANGED-SMALL,6X20
132G0620
Superseded by 132BA0620
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROS
220D0414
Superseded by 220AA0414
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#92171
CLAMP
92171-1077
|
$6.54 | ||
|
Available to order. Add to View Price |
|||
|
#92171A
CLAMP
92171-1105
|
$14.08 | ||
|
Available to order. Add to View Price |
|||
|
#92191
TUBE,4X7X480
92191-1254
|
$17.14 | ||
|
Available to order. Add to View Price |
|||
|
#92191A
TUBE,AIR VENT
92191-1255
|
$32.32 | ||
|
Available to order. Add to View Price |
|||
|
#92191B
TUBE,3.5X6.5X330
92191-1256
|
$11.23 | ||
|
Available to order. Add to View Price |
|||
|
#92191C
TUBE,5.3X10.5X160
92191-1332
|
$7.77 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER
92200-1369
|
$4.47 | ||
|
Available to order. Add to View Price |
|||
|
#92200A
WASHER
92200-1466
|
$2.68 | ||
|
Available to order. Add to View Price |
|||
