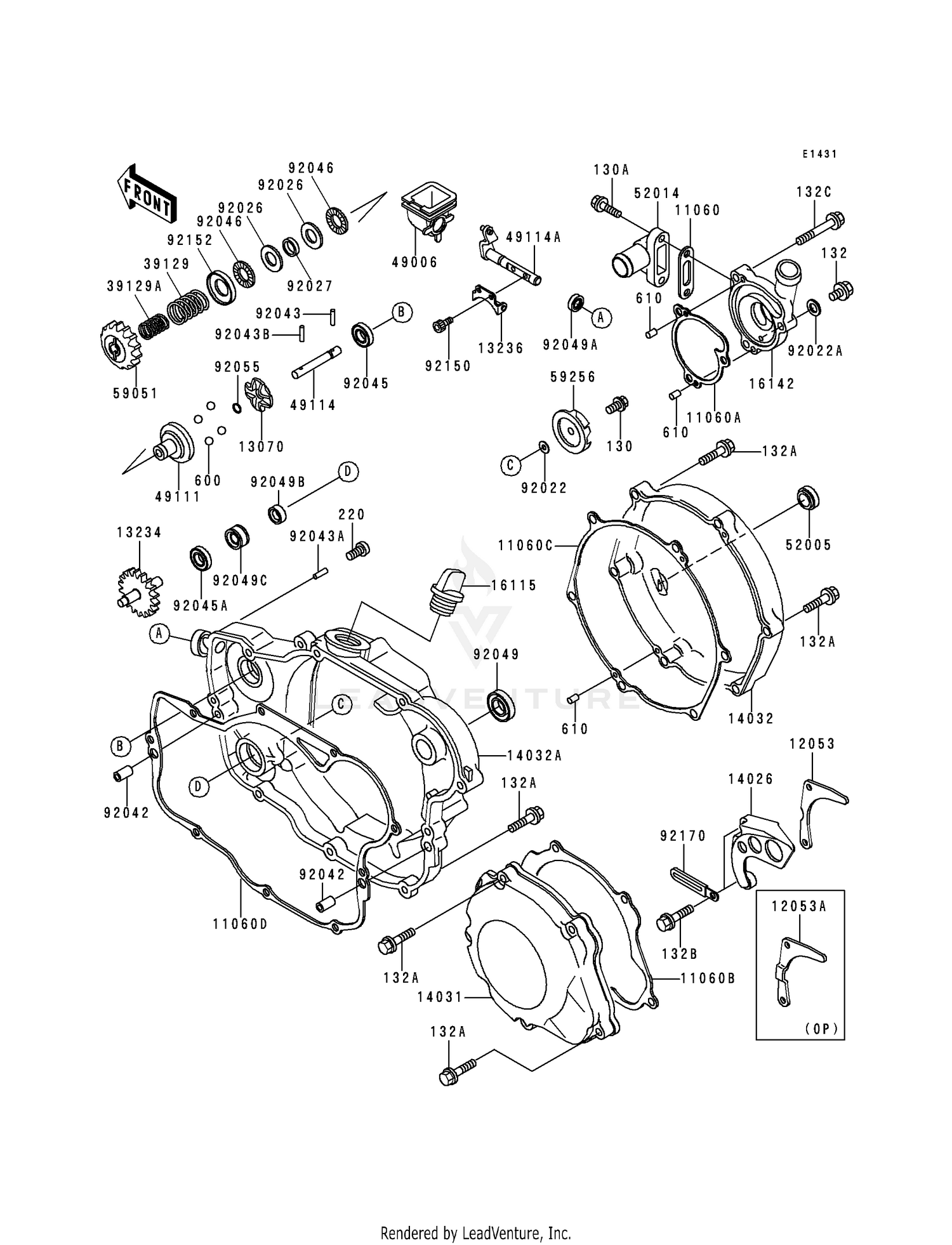

Engine Cover(s) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11060
GASKET
11060-1183
|
$5.25 | ||
|
Available to order. Add to View Price |
|||
|
#11060A
GASKET,PUMP COVER
11060-1184
|
$7.38 | ||
|
Available to order. Add to View Price |
|||
|
#11060B
GASKET,GENERATOR COVE
11060-1352
|
$23.72 | ||
|
Available to order. Add to View Price |
|||
|
#11060C
GASKET,CLUTCH COVER,O
11060-1494
|
$26.14 | ||
|
Available to order. Add to View Price |
|||
|
#11060D
GASKET,CLUTCH COVER,I
11060-1749
Superseded by 11061-1058
|
$37.40 | ||
|
Available to order. Add to View Price |
|||
|
#12053
GUIDE-CHAIN
12053-1382
|
$11.93 | ||
|
Available to order. Add to View Price |
|||
|
#12053A
GUIDE-CHAIN
12053-1387
|
$11.93 | ||
|
Available to order. Add to View Price |
|||
|
#13070
GUIDE,GOVERNOR
13070-1343
|
$52.85 | ||
|
Available to order. Add to View Price |
|||
|
#13234
SHAFT-COMP
13234-1096
Superseded by 13234-1115
|
$116.06 | ||
|
Available to order. Add to View Price |
|||
|
#13236
LEVER-COMP,GOVERNOR
13236-1266
|
$11.84 | ||
|
Available to order. Add to View Price |
|||
|
#14026
COVER-CHAIN
14026-1174
|
$25.86 | ||
|
Available to order. Add to View Price |
|||
|
#14031
COVER-GENERATOR
14031-1283
|
$66.32 | ||
|
Available to order. Add to View Price |
|||
|
#14032
COVER-CLUTCH,OUTER
14032-1483
|
$128.76 | ||
|
Unavailable |
|||
|
#14032A
KIT, CLUTCH-COVER
14032-1502
Superseded by 99996-1350
|
$352.28 | ||
|
Unavailable |
|||
|
#16115
CAP-OIL FILLER
16115-018
|
$10.19 | ||
|
Available to order. Add to View Price |
|||
|
#16142
COVER-PUMP
16142-1159
|
$146.90 | ||
|
Available to order. Add to View Price |
|||
|
#39129
SPRING-GOVERNOR
39129-1018
|
$7.77 | ||
|
Available to order. Add to View Price |
|||
|
#39129A
SPRING-GOVERNOR
39129-1021
|
$5.98 | ||
|
Available to order. Add to View Price |
|||
|
#49006
BOOT
49006-1277
|
$11.51 | ||
|
Available to order. Add to View Price |
|||
|
#49111
HOLDER-GOVERNOR WEIGH
49111-1062
|
$53.46 | ||
|
Available to order. Add to View Price |
|||
|
#49114
SHAFT-GOVERNOR
49114-1074
|
$31.71 | ||
|
Available to order. Add to View Price |
|||
|
#49114A
SHAFT-GOVERNOR
49114-1099
Superseded by 49114-1100
|
$29.30 | ||
|
Available to order. Add to View Price |
|||
|
#52005
GAUGE,OIL LEVEL
52005-1055
Superseded by 52005-0019
|
$14.23 | ||
|
Available to order. Add to View Price |
|||
|
#52014
ELBOW
52014-1082
|
$30.63 | ||
|
Available to order. Add to View Price |
|||
|
#59051
GEAR-SPUR,GOVERNOR
59051-1381
|
$43.06 | ||
|
Available to order. Add to View Price |
|||
|
#59256
IMPELLER
59256-1065
|
$34.74 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,5.2X13X1
92022-1380
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92022A
WASHER,6.2X11X1
92022-304
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#92026
SPACER
92026-1501
|
$7.36 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR,15.2X17X4
92027-1839
|
$11.84 | ||
|
Available to order. Add to View Price |
|||
|
#92042
PIN,DOWEL,6.3X8X14
92042-007
|
$5.52 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN,3X12.8
92043-1256
|
$4.36 | ||
|
Available to order. Add to View Price |
|||
|
#92043A
PIN,2X9.8
92043-1293
|
$6.31 | ||
|
Available to order. Add to View Price |
|||
|
#92043B
PIN,3X19.8
92043-1319
|
$3.98 | ||
|
Available to order. Add to View Price |
|||
|
#92045
BEARING-BALL,#628
92045-1123
|
$22.51 | ||
|
Available to order. Add to View Price |
|||
|
#92045A
BEARING-BALL,608MC3
92045-1305
Superseded by 92045-1497
|
$11.93 | ||
|
Unavailable |
|||
|
#92046
BEARING-NEEDLE
92046-1252
|
$15.61 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,SB18307
92049-013
|
$13.85 | ||
|
Available to order. Add to View Price |
|||
|
#92049A
SEAL-OIL,SDO8144
92049-1207
|
$9.39 | ||
|
Available to order. Add to View Price |
|||
|
#130
BOLT-FLANGED,5X14
130P0514
Superseded by 130CA0514
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#130A
BOLT-FLANGED,5X20
130P0520
Superseded by 130CA0520
|
$1.28 | ||
|
Available to order. Add to View Price |
|||
|
#132
BOLT-FLANGED-SMALL,6X8
132G0608
Superseded by 132BA0608
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
|
#132A
BOLT,6X25
132G0625
Superseded by 92153-1148
|
$0.73 | ||
|
Available to order. Add to View Price |
|||
|
#132B
BOLT-FLANGED-SMALL,6X30
132G0630
Superseded by 132BA0630
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#132C
BOLT-FLANGED-SMALL,6X65
132G0665
Superseded by 132BA0665
|
$4.31 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROS,3X6
220B0306
Superseded by 220AA0306
|
$0.63 | ||
|
Available to order. Add to View Price |
|||
|
#600
"BALL-STEEL,3/8",,2017-03-16 13:30:
600A1200
|
$1.55 | ||
|
Available to order. Add to View Price |
|||
|
#610
ROLLER,4X8
610A0408
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92049B
SEAL-OIL,MH8X18X3.5-A
92049-1359
|
$8.96 | ||
|
Available to order. Add to View Price |
|||
|
#92049C
SEAL-OIL,MHSD8X18X10J-1
92049-1366
|
$17.31 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O
92055-1343
|
$0.63 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT,SOCKET,4X8
92150-1888
|
$3.23 | ||
|
Available to order. Add to View Price |
|||
|
#92152
COLLAR
92152-1188
|
$7.36 | ||
|
Available to order. Add to View Price |
|||
|
#92170
CLAMP
92170-1514
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
