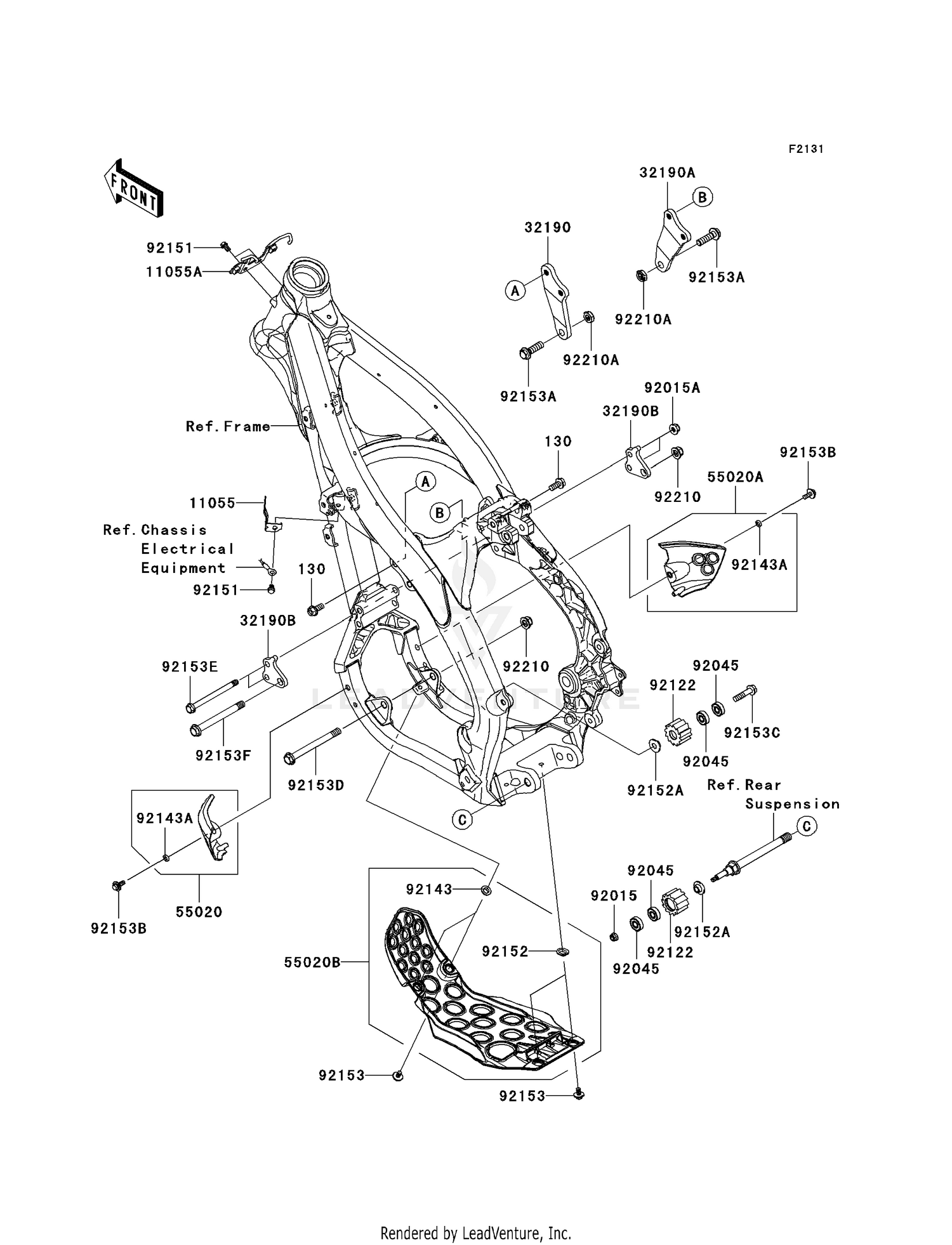

Frame Fittings Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#130
BOLT-FLANGED,8X18
130CA0818
|
$2.48 | ||
|
Available to order. Add to View Price |
|||
|
#11055
BRACKET
11055-0721
|
$6.01 | ||
|
Available to order. Add to View Price |
|||
|
#11055A
BRACKET,IGNITER
11055-1474
|
$21.37 | ||
|
Available to order. Add to View Price |
|||
|
#32190
BRACKET-ENGINE,UPP,LH
32190-0391
|
$46.64 | ||
|
Available to order. Add to View Price |
|||
|
#32190A
BRACKET-ENGINE,UPP,RH
32190-0392
|
$48.88 | ||
|
Available to order. Add to View Price |
|||
|
#32190B
BRACKET-ENGINE,FR
32190-0431
|
$14.24 | ||
|
Available to order. Add to View Price |
|||
|
#55020
GUARD,ENGINE,SIDE,LH,
55020-0435-6C
|
$29.49 | ||
|
Available to order. Add to View Price |
|||
|
#55020A
GUARD,ENGINE,SIDE,RH,
55020-0436-6C
|
$29.49 | ||
|
Available to order. Add to View Price |
|||
|
#55020B
GUARD,ENGINE,LWR,EBONY
55020-0443-6C
|
$28.24 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,LOCK,FLANGED,6MM
92015-1339
|
$1.33 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,8MM
92015-1432
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#92045
BEARING-BALL,608LLU/2A
92045-0060
|
$31.37 | ||
|
Available to order. Add to View Price |
|||
|
#92122
ROLLER,CHAIN GUIDE
92122-0016
|
$17.91 | ||
|
Available to order. Add to View Price |
|||
|
#92143
COLLAR
92143-1196
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92143A
COLLAR
92143-1307
|
$3.82 | ||
|
Available to order. Add to View Price |
|||
|
#92151
BOLT-FLANGED-SMALL
92151-1233
Superseded by 132BC0610
|
$1.92 | ||
|
Available to order. Add to View Price |
|||
|
#92152
COLLAR
92152-0052
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#92152A
COLLAR
92152-0459
|
$25.37 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT,6X12
92153-0503
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#92153A
BOLT,FLANGED,10X35
92153-0802
|
$5.39 | ||
|
Available to order. Add to View Price |
|||
|
#92153B
BOLT,6X16
92153-0863
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#92153C
BOLT,FLANGED,8X35
92153-1652
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#92153D
BOLT,FLANGED,10X130
92153-1869
Superseded by 92154-0517
|
$11.96 | ||
|
Available to order. Add to View Price |
|||
|
#92153E
BOLT,FLANGED,8X102
92153-1916
|
$7.21 | ||
|
Available to order. Add to View Price |
|||
|
#92153F
BOLT,FLANGED,10X104
92153-1917
|
$10.08 | ||
|
Available to order. Add to View Price |
|||
|
#92210
NUT,LOCK,FLANGED,10MM
92210-1080
|
$9.92 | ||
|
Available to order. Add to View Price |
|||
|
#92210A
NUT,LOCK,10MM
92210-1184
|
$5.91 | ||
|
Available to order. Add to View Price |
|||
