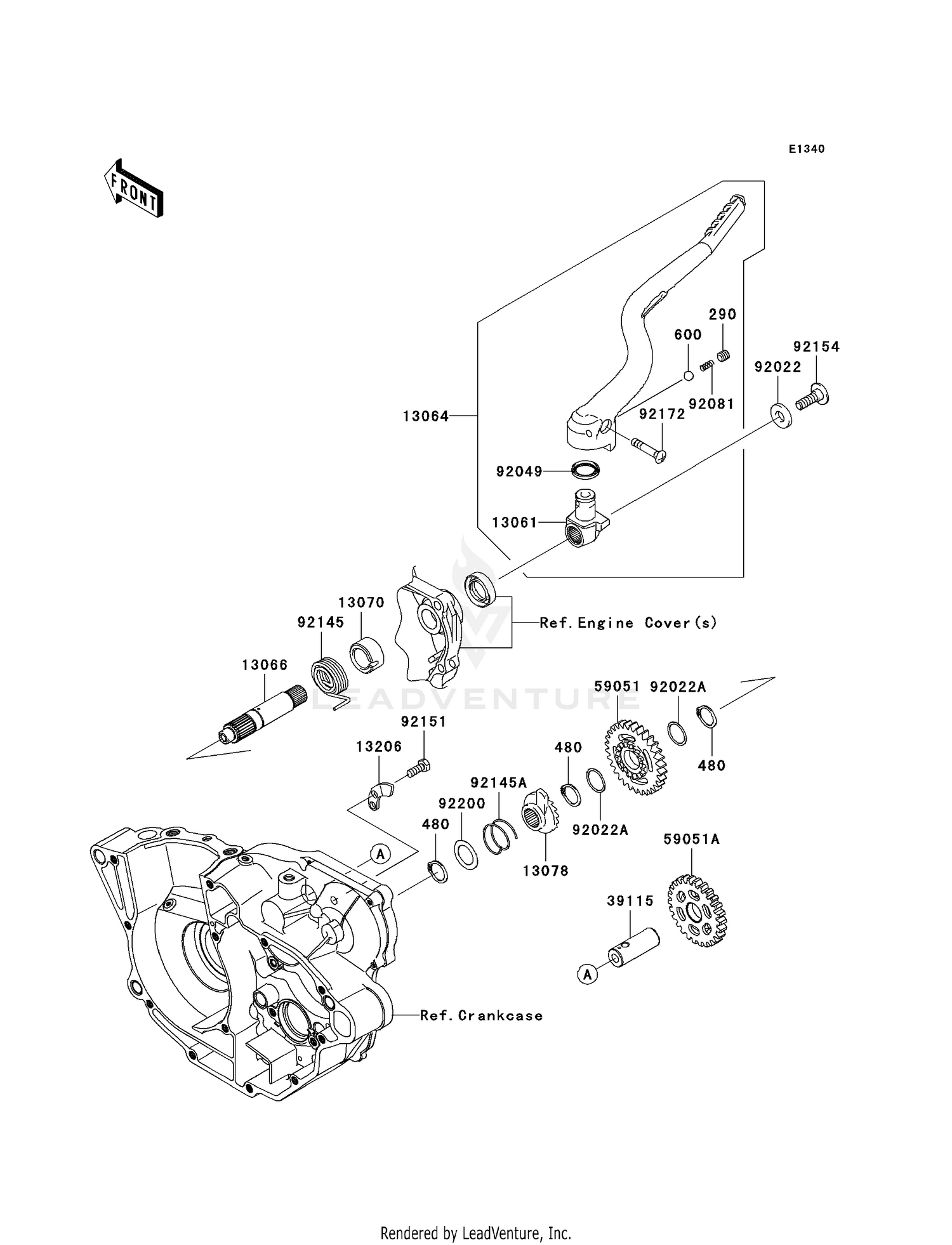

Kickstarter Mechanism Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#290
SCREW-SET-SOCKET,8X8
290CA0808
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#480
CIRCLIP-TYPE-C,18MM
480J1800
|
$1.26 | ||
|
Available to order. Add to View Price |
|||
|
#600
BALL-STEEL,1/4
600A0800
|
$0.61 | ||
|
Available to order. Add to View Price |
|||
|
#13061
BOSS
13061-0320
Superseded by 13061-0357
|
$76.12 | ||
|
Available to order. Add to View Price |
|||
|
#13064
LEVER-ASSY-KICK
13064-0057
Superseded by 13064-0059
|
$131.81 | ||
|
Available to order. Add to View Price |
|||
|
#13066
SHAFT-KICK
13066-0004
|
$106.02 | ||
|
Available to order. Add to View Price |
|||
|
#13070
GUIDE
13070-0011
|
$19.05 | ||
|
Available to order. Add to View Price |
|||
|
#13078
RATCHET
13078-0013
|
$89.75 | ||
|
Available to order. Add to View Price |
|||
|
#13206
GUIDE-KICK
13206-1062
|
$10.19 | ||
|
Available to order. Add to View Price |
|||
|
#39115
SHAFT-IDLER,KICK
39115-0021
Superseded by 39115-0565
|
$31.26 | ||
|
Available to order. Add to View Price |
|||
|
#59051
GEAR-SPUR,KICK STARTE
59051-0033
|
$116.99 | ||
|
Available to order. Add to View Price |
|||
|
#59051A
GEAR-SPUR,KICK STARTE
59051-0089
|
$71.06 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,10X22X3.2
92022-1944
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92022A
WASHER,18.3X22X0.5
92022-271
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,KICK PEDAL
92049-1387
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,KICK PEDAL
92081-020
|
$4.13 | ||
|
Available to order. Add to View Price |
|||
|
#92145
SPRING,KICK STARTER
92145-0051
|
$24.74 | ||
|
Available to order. Add to View Price |
|||
|
#92145A
SPRING
92145-0499
|
$14.52 | ||
|
Available to order. Add to View Price |
|||
|
#92151
BOLT,6X16
92151-1652
|
$1.48 | ||
|
Available to order. Add to View Price |
|||
|
#92154
BOLT,SOCKET,8X25
92154-0181
Superseded by 92154-0898
|
$5.16 | ||
|
Available to order. Add to View Price |
|||
|
#92172
SCREW,6X33
92172-0248
|
$2.92 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER,18.3X27.5X0.5
92200-0378
|
$2.11 | ||
|
Available to order. Add to View Price |
|||
