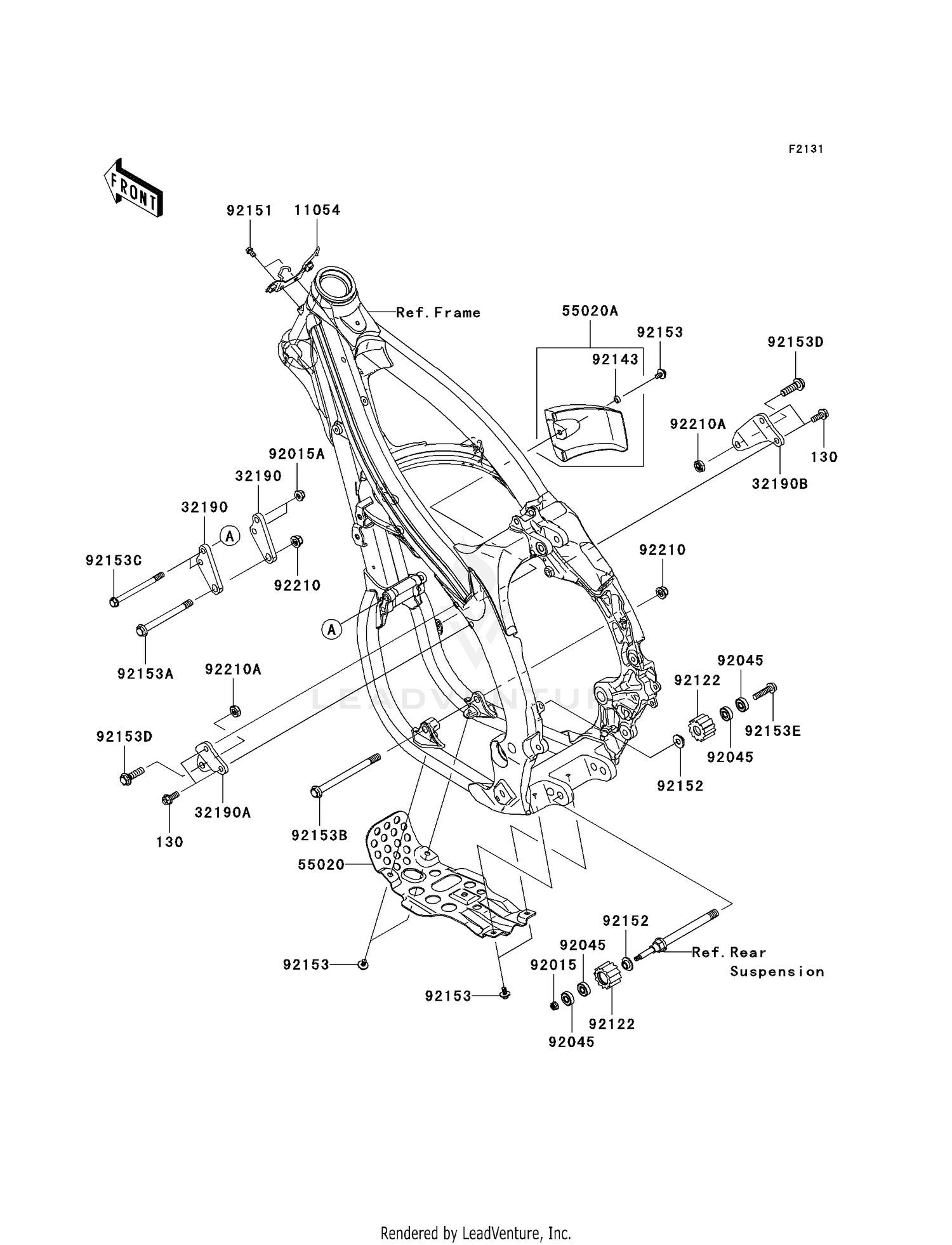

Frame Fittings Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#130
BOLT-FLANGED,8X20
130P0820
Superseded by 130CA0820
|
$1.66 | ||
|
Available to order. Add to View Price |
|||
|
#11054
BRACKET,IGNITER
11054-0300
|
$22.36 | ||
|
Available to order. Add to View Price |
|||
|
#32190
BRACKET-ENGINE,FR
32190-0232
|
$35.67 | ||
|
Available to order. Add to View Price |
|||
|
#32190A
BRACKET-ENGINE,UPP,LH
32190-0244
Superseded by 32190-0351
|
$28.44 | ||
|
Available to order. Add to View Price |
|||
|
#32190B
BRACKET-ENGINE,UPP,RH
32190-0245
Superseded by 32190-0352
|
$28.44 | ||
|
Available to order. Add to View Price |
|||
|
#55020
GUARD,SKID
55020-0177
Superseded by 55020-0369
|
$38.32 | ||
|
Available to order. Add to View Price |
|||
|
#55020A
GUARD,ENGINE,RH,WHITE
55020-0179-RZ
|
$35.34 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,LOCK,FLANGED,6MM
92015-1339
|
$1.33 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,8MM
92015-1432
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#92045
BEARING-BALL,608LLU/2A
92045-0060
|
$31.37 | ||
|
Available to order. Add to View Price |
|||
|
#92122
ROLLER,CHAIN GUIDE
92122-0016
|
$17.91 | ||
|
Available to order. Add to View Price |
|||
|
#92143
COLLAR
92143-1307
|
$3.82 | ||
|
Available to order. Add to View Price |
|||
|
#92151
BOLT-FLANGED-SMALL
92151-1233
Superseded by 132BC0610
|
$1.92 | ||
|
Available to order. Add to View Price |
|||
|
#92152
COLLAR
92152-0459
|
$25.37 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT,6X12
92153-0503
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#92153A
BOLT,FLANGED,10X102
92153-0659
|
$10.44 | ||
|
Available to order. Add to View Price |
|||
|
#92153B
BOLT,FLANGED,10X137
92153-0704
|
$11.12 | ||
|
Available to order. Add to View Price |
|||
|
#92153C
BOLT,FLANGED,8X100
92153-0705
|
$9.33 | ||
|
Available to order. Add to View Price |
|||
|
#92153D
BOLT,FLANGED,10X35
92153-0802
|
$5.39 | ||
|
Available to order. Add to View Price |
|||
|
#92153E
BOLT,FLANGED,8X35
92153-1652
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#92210
NUT,LOCK,FLANGED,10MM
92210-1080
|
$9.92 | ||
|
Available to order. Add to View Price |
|||
|
#92210A
NUT,LOCK,10MM
92210-1184
|
$5.91 | ||
|
Available to order. Add to View Price |
|||
