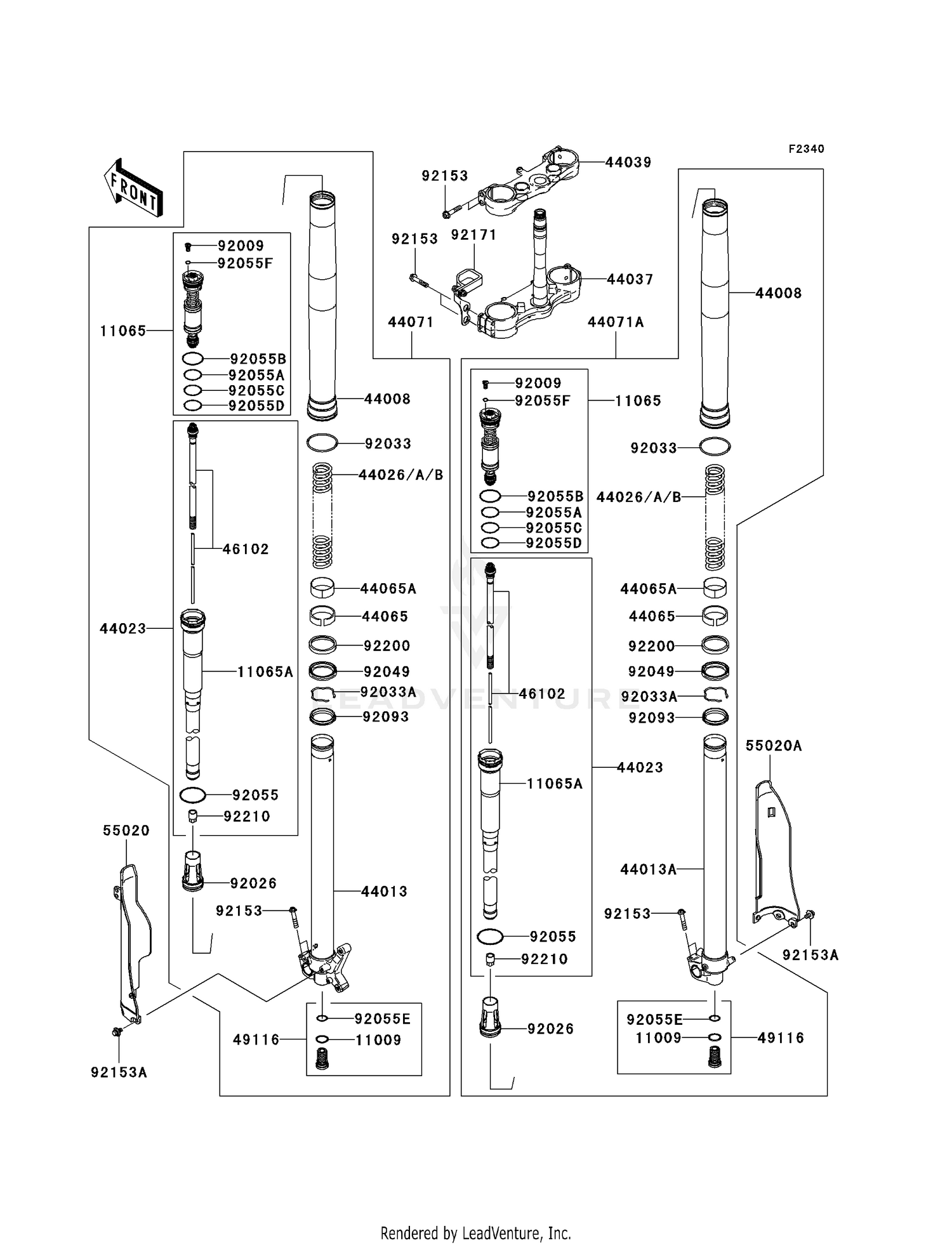

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11009
GASKET,FORK CYLINDER BOLT
11009-1592
|
$5.96 | ||
|
Available to order. Add to View Price |
|||
|
#11065
CAP,BASE VALVE
11065-0162
|
$255.23 | ||
|
Available to order. Add to View Price |
|||
|
#11065A
CAP,FORK,TOP,GOLD
11065-0163-10J
|
$238.57 | ||
|
Available to order. Add to View Price |
|||
|
#44008
PIPE-FORK OUTER,GOLD
44008-0031-828
|
$593.46 | ||
|
Available to order. Add to View Price |
|||
|
#44013
PIPE-FORK INNER,LH
44013-0086
|
$633.79 | ||
|
Available to order. Add to View Price |
|||
|
#44013A
PIPE-FORK INNER,RH
44013-0087
|
$633.79 | ||
|
Available to order. Add to View Price |
|||
|
#44023
CYLINDER-SET-FORK,GOL
44023-0047-10J
|
$600.08 | ||
|
Available to order. Add to View Price |
|||
|
#44026
SPRING-FRONT FORK,K=4
44026-0096
|
$95.01 | ||
|
Available to order. Add to View Price |
|||
|
#44026A
SPRING-FRONT FORK,K=4
44026-0105
|
$95.01 | ||
|
Available to order. Add to View Price |
|||
|
#44026B
SPRING-FRONT FORK,K=4
44026-0106
|
$95.01 | ||
|
Available to order. Add to View Price |
|||
|
#44037
HOLDER-FORK UNDER,M.M
44037-0033-10Y
Superseded by 44037-0075-10Y
|
$600.66 | ||
|
Available to order. Add to View Price |
|||
|
#44039
HOLDER-FORK UPPER,M.M
44039-0035-10Y
|
$264.84 | ||
|
Available to order. Add to View Price |
|||
|
#44065
BUSHING-FRONT FORK
44065-0006
|
$18.41 | ||
|
Available to order. Add to View Price |
|||
|
#44065A
BUSHING-FRONT FORK
44065-1140
|
$20.38 | ||
|
Available to order. Add to View Price |
|||
|
#44071
DAMPER-ASSY,FORK,LH
44071-5017
|
$1,672.33 | ||
|
Available to order. Add to View Price |
|||
|
#44071A
DAMPER-ASSY,FORK,RH
44071-5018
|
$1,672.33 | ||
|
Available to order. Add to View Price |
|||
|
#46102
ROD,PISTON
46102-0086
|
$430.61 | ||
|
Available to order. Add to View Price |
|||
|
#49116
VALVE-ASSY
49116-0015
|
$189.12 | ||
|
Available to order. Add to View Price |
|||
|
#55020
GUARD,FORK,LH,WHITE
55020-0172-RZ
|
$62.09 | ||
|
Available to order. Add to View Price |
|||
|
#55020A
GUARD,FORK,RH,WHITE
55020-0334-RZ
|
$62.09 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW
92009-1884
|
$7.44 | ||
|
Available to order. Add to View Price |
|||
|
#92026
SPACER
92026-0097
|
$27.97 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP
92033-0049
|
$4.46 | ||
|
Available to order. Add to View Price |
|||
|
#92033A
RING-SNAP
92033-1329
|
$6.67 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL
92049-0070
|
$26.13 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O
92055-0104
|
$5.47 | ||
|
Available to order. Add to View Price |
|||
|
#92055A
RING-O
92055-0105
|
$5.47 | ||
|
Available to order. Add to View Price |
|||
|
#92055B
RING-O
92055-0106
|
$5.47 | ||
|
Available to order. Add to View Price |
|||
|
#92055C
RING-O
92055-0116
|
$5.47 | ||
|
Available to order. Add to View Price |
|||
|
#92055D
RING-O
92055-0117
|
$5.47 | ||
|
Available to order. Add to View Price |
|||
|
#92055E
O RING,18MM
92055-1156
Superseded by 670B2018
|
$1.39 | ||
|
Available to order. Add to View Price |
|||
|
#92055F
RING-O,2.8X6.6X1.9
92055-1441
|
$2.87 | ||
|
Unavailable |
|||
|
#92093
SEAL,FORK OUTER TUBE
92093-1566
|
$20.00 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT,FLANGED,8X40
92153-0484
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#92153A
BOLT,FLANGED,6X14
92153-0936
|
$2.89 | ||
|
Available to order. Add to View Price |
|||
|
#92171
CLAMP,HOSE
92171-0414
|
$21.95 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER
92200-0067
|
$12.38 | ||
|
Available to order. Add to View Price |
|||
|
#92210
NUT
92210-0337
|
$22.20 | ||
|
Available to order. Add to View Price |
|||
