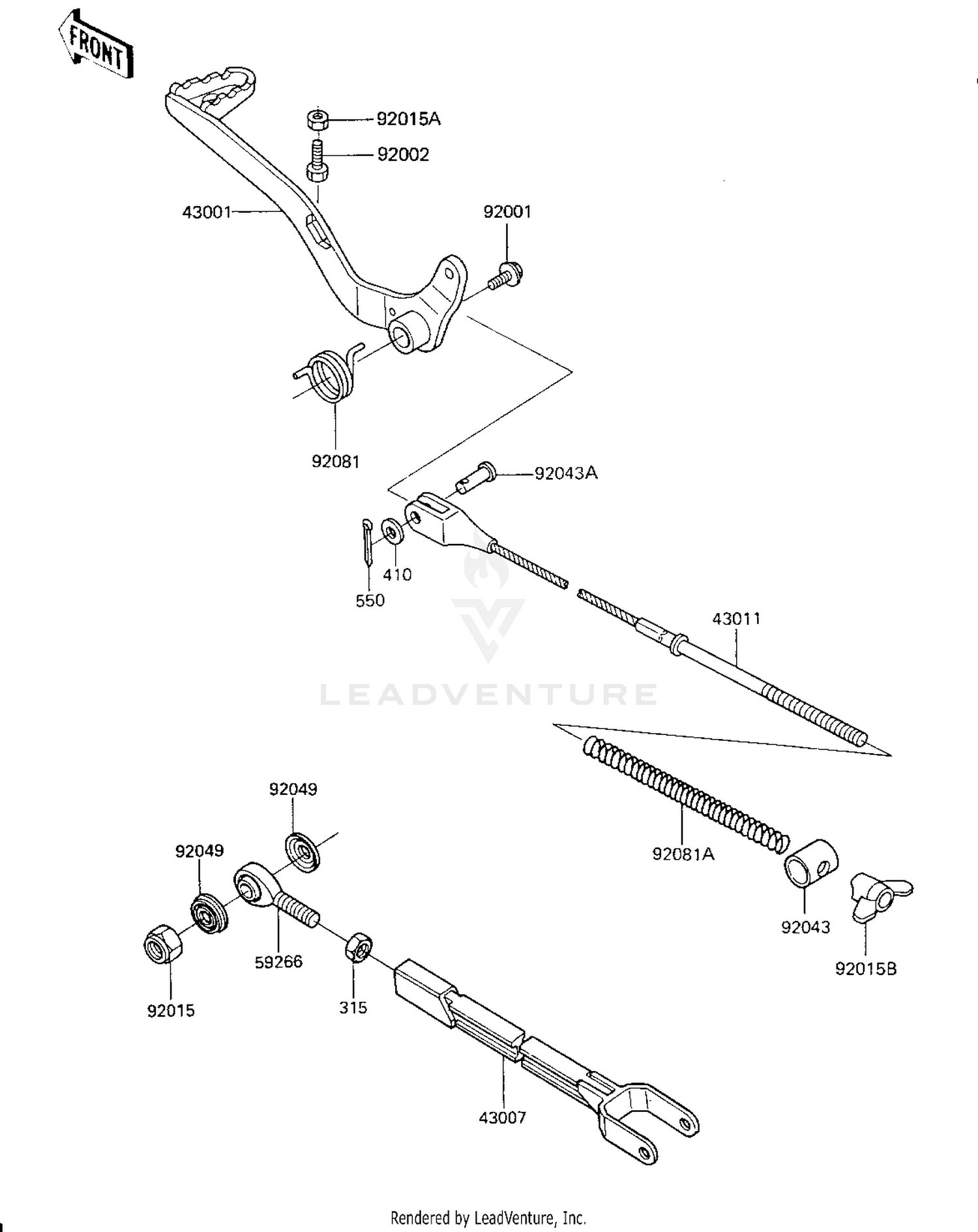

Brake Pedal/torque Link Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#43001
LEVER-BRAKE,PEDAL
43001-1173
|
$147.86 | ||
|
Available to order. Add to View Price |
|||
|
#43007
ROD-TORQUE
43007-1103
|
$124.49 | ||
|
Available to order. Add to View Price |
|||
|
#43011
ROD-BRAKE
43011-1103
|
$25.20 | ||
|
Available to order. Add to View Price |
|||
|
#59266
JOINT,BALL
59266-1005
|
$85.28 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,FLANGED,6X10
92001-1034
|
$9.92 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,6X20
92002-1373
|
$4.24 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,LOCK,8MM
92015-1124
|
$5.25 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,6MM
92015-1391
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
|
#92015B
NUT,WING,6M/M
92015-4004
|
$7.04 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN,BRAKE
92043-1024
|
$10.48 | ||
|
Unavailable |
|||
|
#92043A
PIN RR BRAKE CABLE
92043-107
|
$7.64 | ||
|
Available to order. Add to View Price |
|||
|
#92049
OIL SEAL,BALL JOINT
92049-1072
|
$10.48 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,BRAKE RETURN
92081-1640
|
$10.01 | ||
|
Available to order. Add to View Price |
|||
|
#92081A
SPRING,BRAKE ROD
92081-1688
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#315
NUT-HEX-FINE,10MM
315B1000
Superseded by 315AA1000
|
$0.58 | ||
|
Available to order. Add to View Price |
|||
|
#410
WASHER-PLAIN-SMALL
410B0600
Superseded by 410AA0600
|
$1.28 | ||
|
Available to order. Add to View Price |
|||
|
#550
PIN-COTTER,2.0X15
550D2015
Superseded by 550AA2015
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
