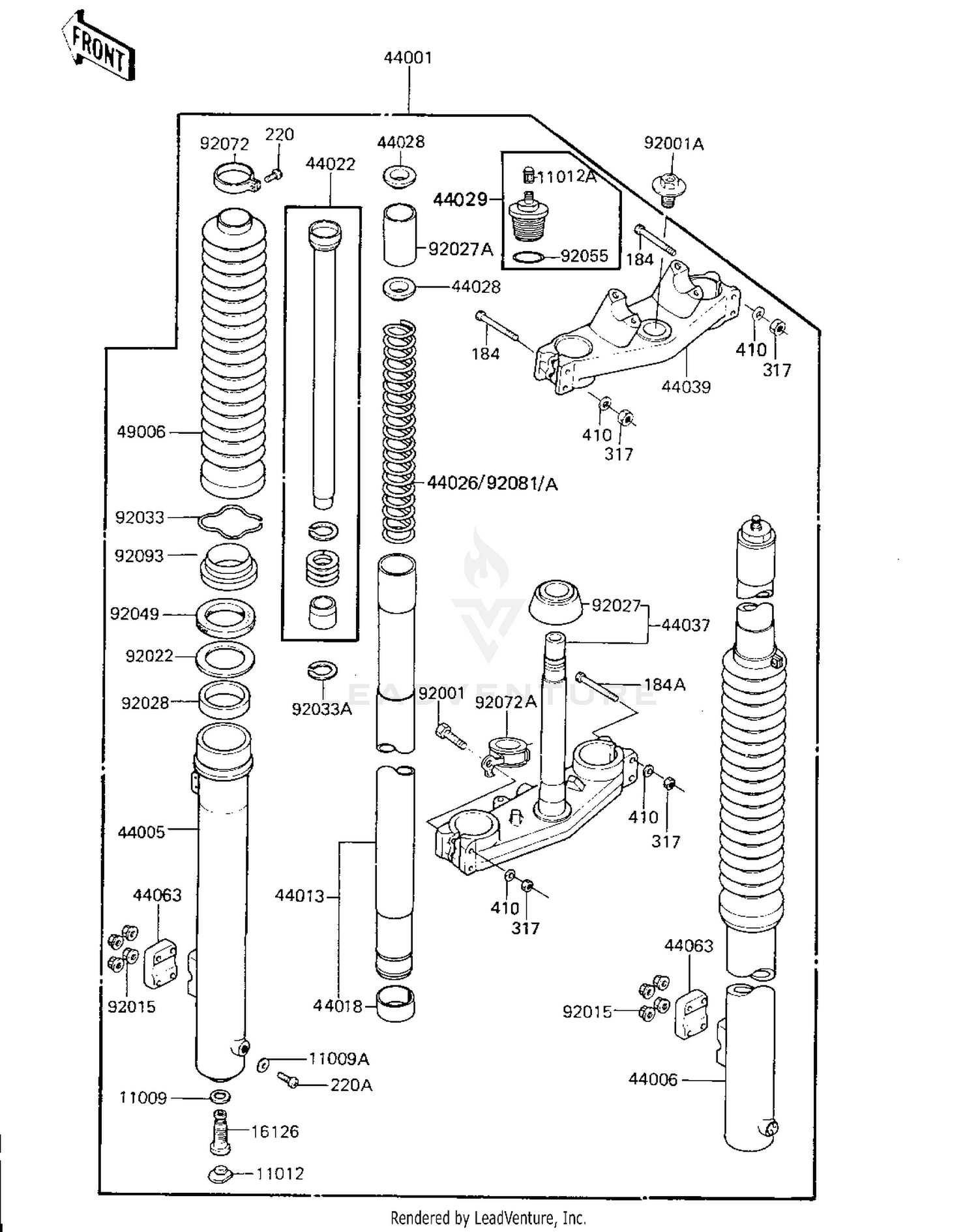

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11009
GASKET,FORK CYLINDER
11009-1324
|
$5.36 | ||
|
Available to order. Add to View Price |
|||
|
#11009A
GASKET,FORK DRAIN PLUG
44045-002
|
$5.02 | ||
|
Available to order. Add to View Price |
|||
|
#11012
CAP,FORK CYLINDER
11012-1381
|
$5.91 | ||
|
Available to order. Add to View Price |
|||
|
#11012A
CAP,VALVE AIR
11012-1391
|
$5.55 | ||
|
Available to order. Add to View Price |
|||
|
#16126
VALVE,FORK CYLINDER
16126-1107
|
$78.08 | ||
|
Available to order. Add to View Price |
|||
|
#44001
FORK-FRONT
44001-1518
|
$1,227.82 | ||
|
Available to order. Add to View Price |
|||
|
#44005
PIPE-LEFT FORK OUTER
44005-1212
|
$365.62 | ||
|
Available to order. Add to View Price |
|||
|
#44006
PIPE-RIGHT FORK OUTER
44006-1207
|
$425.63 | ||
|
Available to order. Add to View Price |
|||
|
#44013
PIPE-FORK INNER
44013-1212
|
$382.07 | ||
|
Available to order. Add to View Price |
|||
|
#44018
PISTON-FORK
44018-1005
|
$39.95 | ||
|
Available to order. Add to View Price |
|||
|
#44022
CYLINDER-FORK
44022-1170
|
$100.56 | ||
|
Available to order. Add to View Price |
|||
|
#44026
SPRING-FRONT FORK
44026-1169
|
$47.47 | ||
|
Available to order. Add to View Price |
|||
|
#44028
GUIDE-FORK SPRING
44028-1010
|
$10.90 | ||
|
Available to order. Add to View Price |
|||
|
#44029
SEAT-FORK SPRING
44029-1107
|
$65.48 | ||
|
Available to order. Add to View Price |
|||
|
#44037
HOLDER-FORK UNDER
44037-1163
|
$424.80 | ||
|
Available to order. Add to View Price |
|||
|
#44039
HOLDER-FORK UPPER
44039-1060
|
$199.29 | ||
|
Available to order. Add to View Price |
|||
|
#44063
HOLDER-FRONT AXLE
44063-1008
|
$51.52 | ||
|
Available to order. Add to View Price |
|||
|
#49006
BOOT
49006-1081
|
$82.35 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT FLANGED 8X55
92001-1398
|
$3.94 | ||
|
Available to order. Add to View Price |
|||
|
#92001A
BOLT
92001-1520
|
$18.97 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,6MM
92015-1078
Superseded by 92210-0630
|
$1.94 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER
92022-1299
|
$8.28 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR,FRONT FORK
92027-1427
|
$75.19 | ||
|
Available to order. Add to View Price |
|||
|
#92027A
COLLAR,FORK SPRING
92027-1764
|
$9.38 | ||
|
Available to order. Add to View Price |
|||
|
#92028
BUSHING
92028-1145
Superseded by 92028-1581
|
$21.02 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP
92033-1077
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#92033A
RING-SNAP
92033-1167
|
$3.73 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,FORK OUTER T
92049-1295
|
$21.35 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O
92055-1123
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#92072
BAND
92072-1078
|
$10.77 | ||
|
Available to order. Add to View Price |
|||
|
#92072A
BAND
92072-1166
|
$26.32 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,FRONT FORK,K=0
92081-1556
|
$48.61 | ||
|
Available to order. Add to View Price |
|||
|
#92081A
SPRING,FRONT FORK,K=0
92081-1557
|
$48.61 | ||
|
Available to order. Add to View Price |
|||
|
#92093
SEAL,FORK DUST
92093-1086
|
$18.78 | ||
|
Available to order. Add to View Price |
|||
|
#184
BOLT-UPSET-WP-SMALL,8X50
184G0850
Superseded by 184BA0850
|
$1.87 | ||
|
Available to order. Add to View Price |
|||
|
#184A
BOLT-UPSET-WP-SMALL
184G0855
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROS
220B0316
|
$0.78 | ||
|
Available to order. Add to View Price |
|||
|
#220A
SCREW-PAN-CROS,4X8
220B0408
Superseded by 220AA0408
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#317
NUT-HEX-SMALL,8MM
317G0800
Superseded by 317BA0800
|
$1.63 | ||
|
Available to order. Add to View Price |
|||
|
#410
WASHER-PLAIN-SMALL,8MM
410B0800
Superseded by 410AA0800
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
